Lippert Components In-Wall Slide-Out User Manual

Rev: 06.14.2016
Page 27
IN-WALL® Slide-out Service Manual
IN-WALL
®

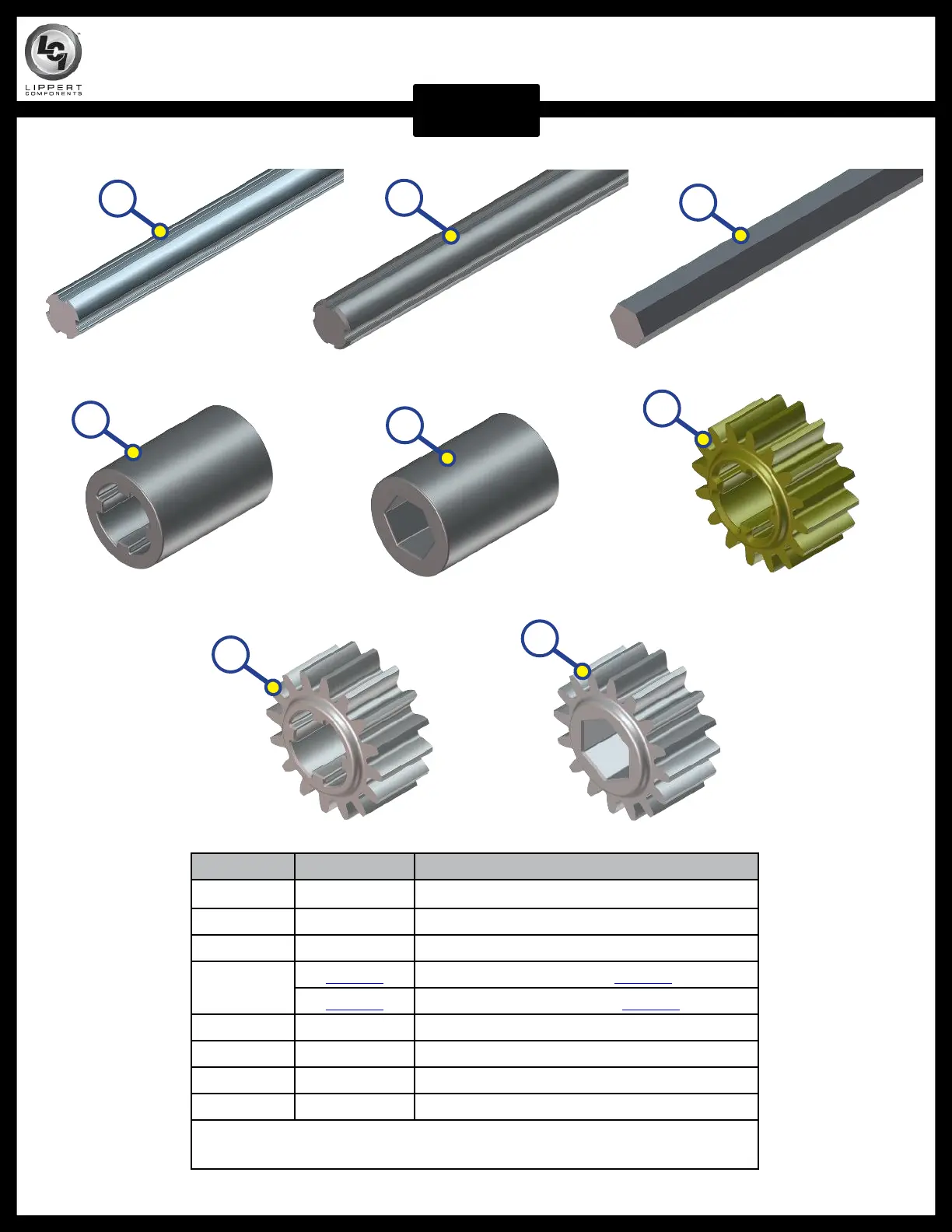

SLIDE-OUT COMPONENTS
SLIDEOUTS
D
G
A
B
C
E
H
F
Callout Part # Description
A *See Note Aluminum Torque Shaft
B *See Note Steel Torque Shaft
C *See Note Hex Torque Shaft
D
238461 Coupler - Old Style (for 229466 Motor)
238461 Coupler - New Style (for 236575 Motor)
E 285083 Hex Coupler
F 238893 Spur Gear
G 292435 Copper Infused Spur Gear
H 285085 Hex Spur Gear
NOTE: *Parts shown for reference only. The part is not available
for individual replacement.
