Operating manual and inspection booklet
Overview
104 3435216
TRUMA operating unit for heater and hot water

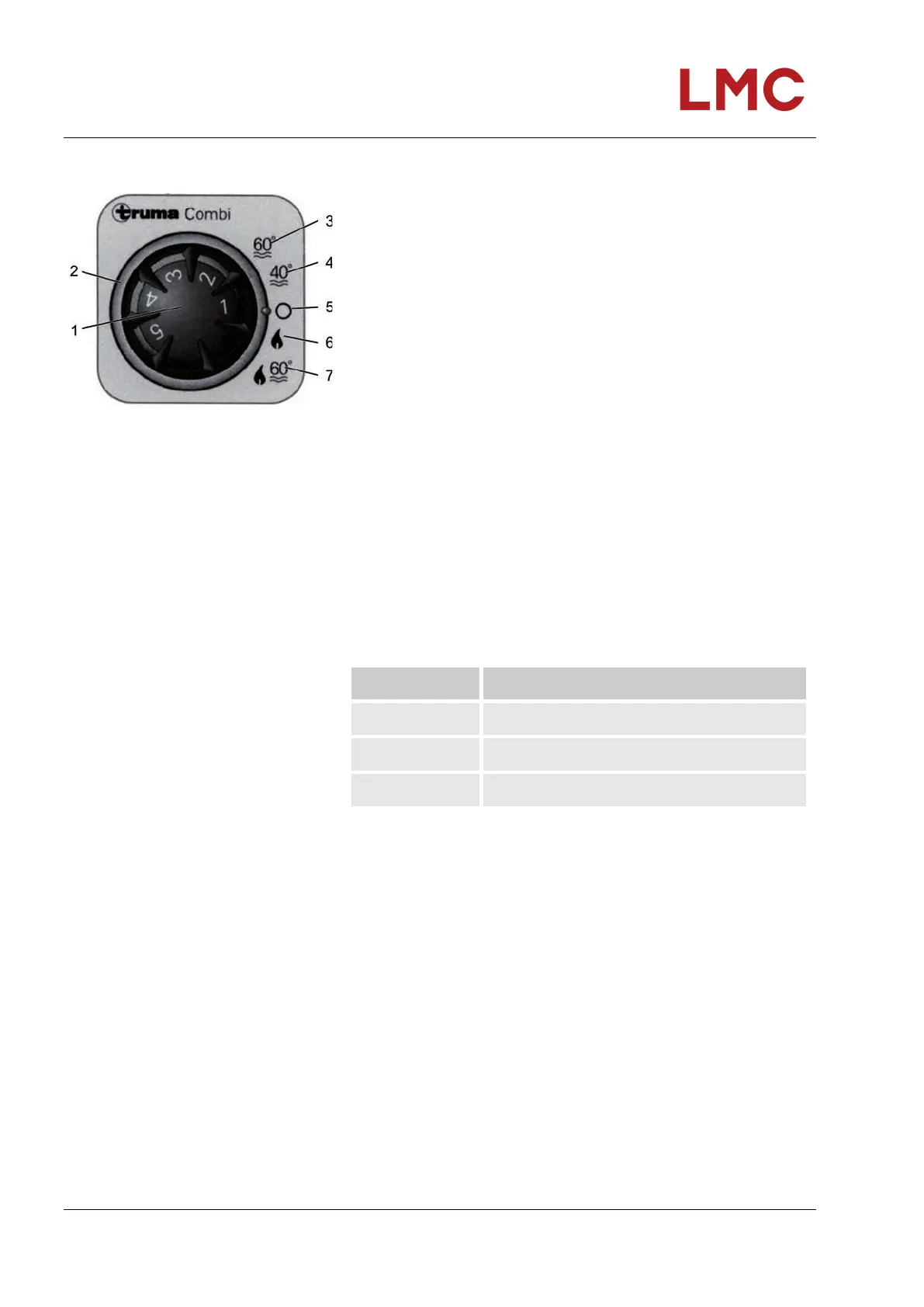

Fig. 76: TRUMA operating unit for heater
and hot water preparation
The TRUMA operating unit can be found in the interior above the
entrance. There is a rotary knob (black) in the centre of the unit
that is used to control the temperature. The outer ring (grey) is
used to select the operating mode of the hot water heater.
When turning the unit on, an option is provided to select between
different operating modes, e.g., summer operation or winter
operation.
When selecting the summer operation (the position 3, 4), the
heater is not active, the water temperature is pre-selected
between two settings.
During the winter operation (position 6, 7), the heater is activated
and the hot water supply can be selected or deselected.
In the switches and the symbols have the following meanings:
1 Heater rotary knob (room temperature)
1 = low heat … 5 = high heat
2 Rotary ring for the operating mode of the hot water heater
3 Summer operation, water temperature 60°C
4 Summer operation, water temperature 40°C
5 Boiler "OFF", heater and hot water are not available
6 Winter operation, heating only, without hot water supply
7 Winter operation, heater with hot water supply
The indicator lights signal the operating mode of the boiler:
Indicator light Operating mode
yellow Hot water heater in heating phase
green Heater on
red Fault
Prior to operating any equipment, reading the detailed safety
and operating instructions contained in the operating manual
of the relevant manufacturer is mandatory!
If a malfunction occurs, always check the gas bottle valve and
the quick-action valve first, ensuring that both are open. The
safety relief valve must be closed and the water level must be
sufficient.
If the flaw cannot be repaired, contact the nearest specialist a
workshop!
