4.6.2 Extending the rear support
0
Crushing hazard when extending or retracting the
support elements!
Extending and retracting support elements can cause
feet, hands, or other body parts to be crushed and
injured.
• Do not position yourself in the swivel area of the
supports.
• Do not tamper with support elements.
NOTE
On soft, yielding surfaces, place large plates under
the supporting elements before extending to prevent
them from sinking into the ground.
NOTE
The supporting elements do not serve as vehicle
jacks, rather they are used exclusively to stabilise the
vehicle.
When extending, load all supporting elements
uniformly.
To compensate for inclines use special drive-on
wedges that are commercially available!

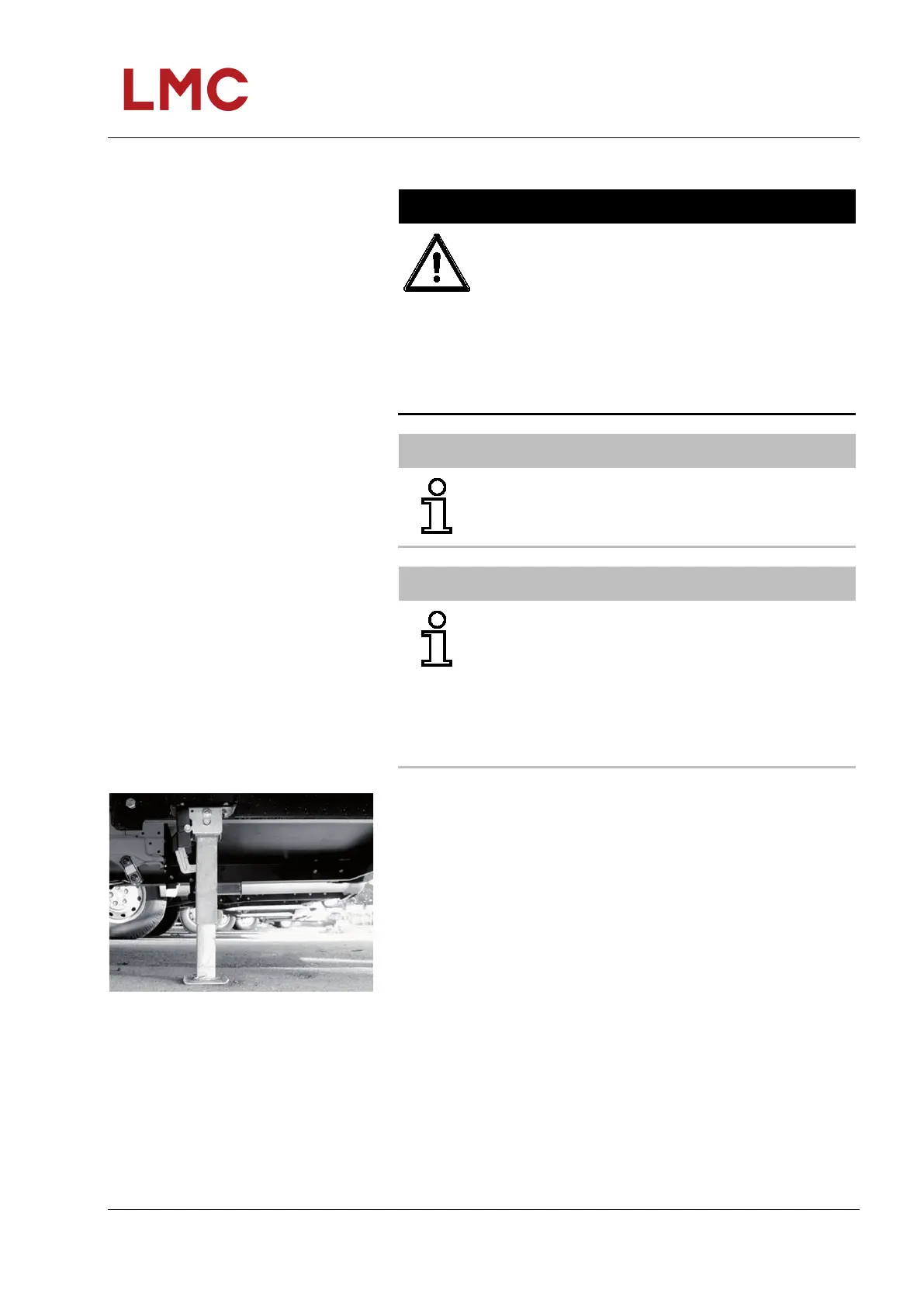

Fig. 14: Rear jack extended
1. Insert the socket wrench into the hexagon opening of the
rear jack.
2. Rotate the socket wrench clockwise until the jack is in its
horizontal position.
3. Continue to turn the socket wrench clockwise until the
extension of the jack rests firmly on the ground and the
vehicle is in a secured position.
