6.3.3 Heating the floor with hot water using the Truma Combi heater
I
In combination with the TRUMA Combi heater, the heating fluid
is heated in a separate thermal unit.
Here, the hot air generated in the gas heater is channelled
through the thermal unit. To accelerate the heating process, the
230 V heating element integrated in the thermal unit can be
switched on.
Operation of the floor heater (optional)

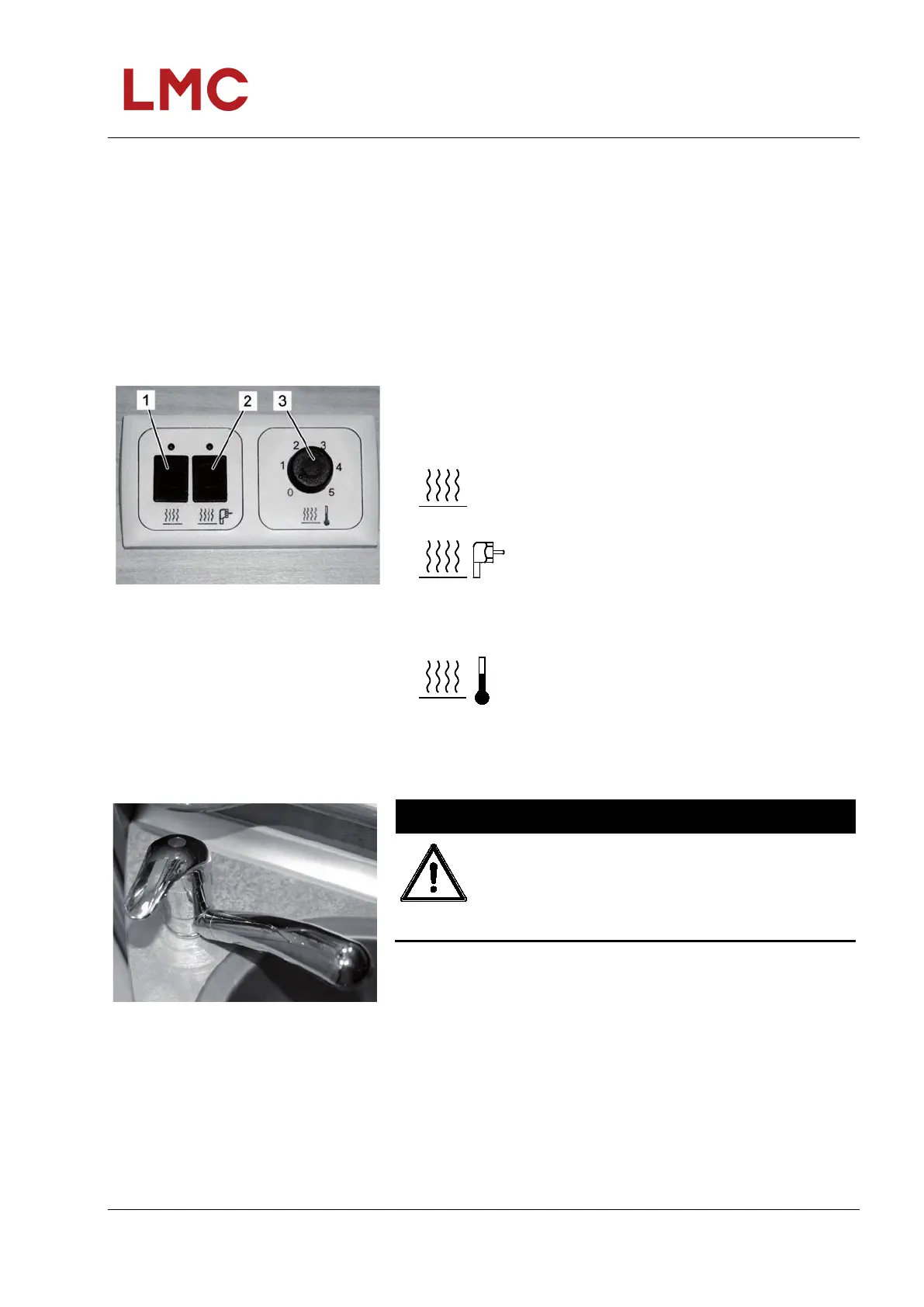

Fig. 156: Operating unit
The operating unit for the floor heater comprises the following
switches and controls. The red LED light above the switches
indicates that the operating mode is switched ON.
1
ON/OFF floor heater switch (turns the
recirculation pump for the heater circuit on or
off)
2
230 V electric heating element ON/OFF
(not applicable if a ALDE heater is installed)
The 230 V heater element can only be
switched on if the floor heater is also switched
on.
3
Floor temperature control unit
6.3.4 Water heater
Mixer tap
Fig. 157: Mixer tap
WARNING
Danger of scalding due to hot water!
Hot water can scald hands and other body parts.
• Open the mixer tap in cold-water position and
carefully raise the temperature.
1. To obtain water, turn the lever in direction of the cold-water
setting (blue mark), lift upward, and slowly shift in direction
of the red mark.
2. To close, turn the mixer lever in direction of the blue mark
and push downward.
