5.1.3.1 "THULE Excellent" (optional) bicycle carrier

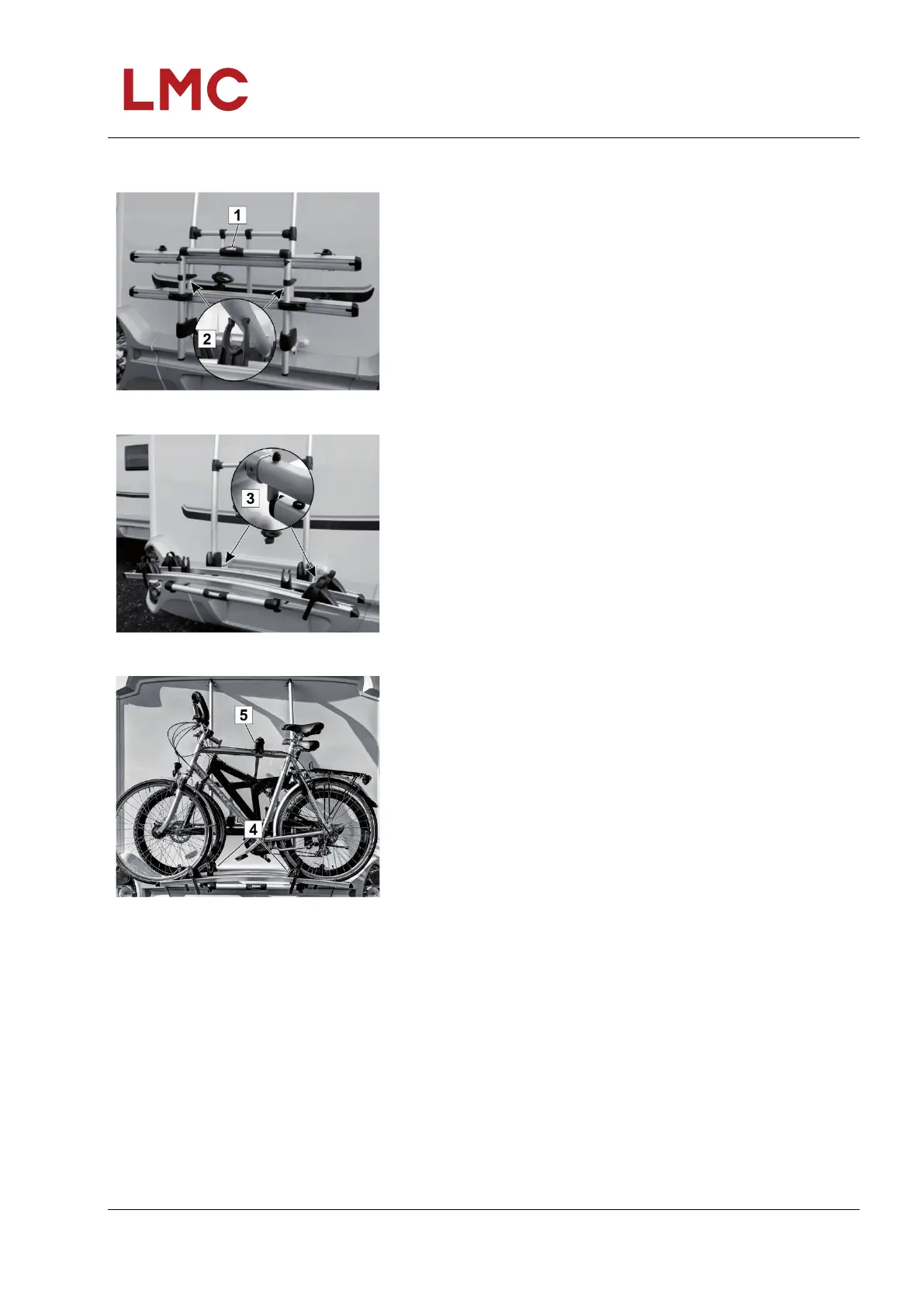

Fig. 22: Fold out the bicycle carrier
Fold out the bicycle carrier
1. Pull handle (1) until both brackets (2) can be released from
the frame.
Fig. 23: Snap in the latching mechanism
2. Fold down the bicycle carrier and engage into both latching
mechanisms (3) on the left- and right-hand side.
Fig. 24: Secure bicycles
How to load and secure the bicycles
1. Loosen the fastening belt of the support rail (4) and the
upper mounting strut (5).
2. Place bicycles onto the support rail and use the fastening
belt and the mounting strut to secure the bike.
