Operating manual and inspection booklet
Overview
64 3435216
Service compartment lock

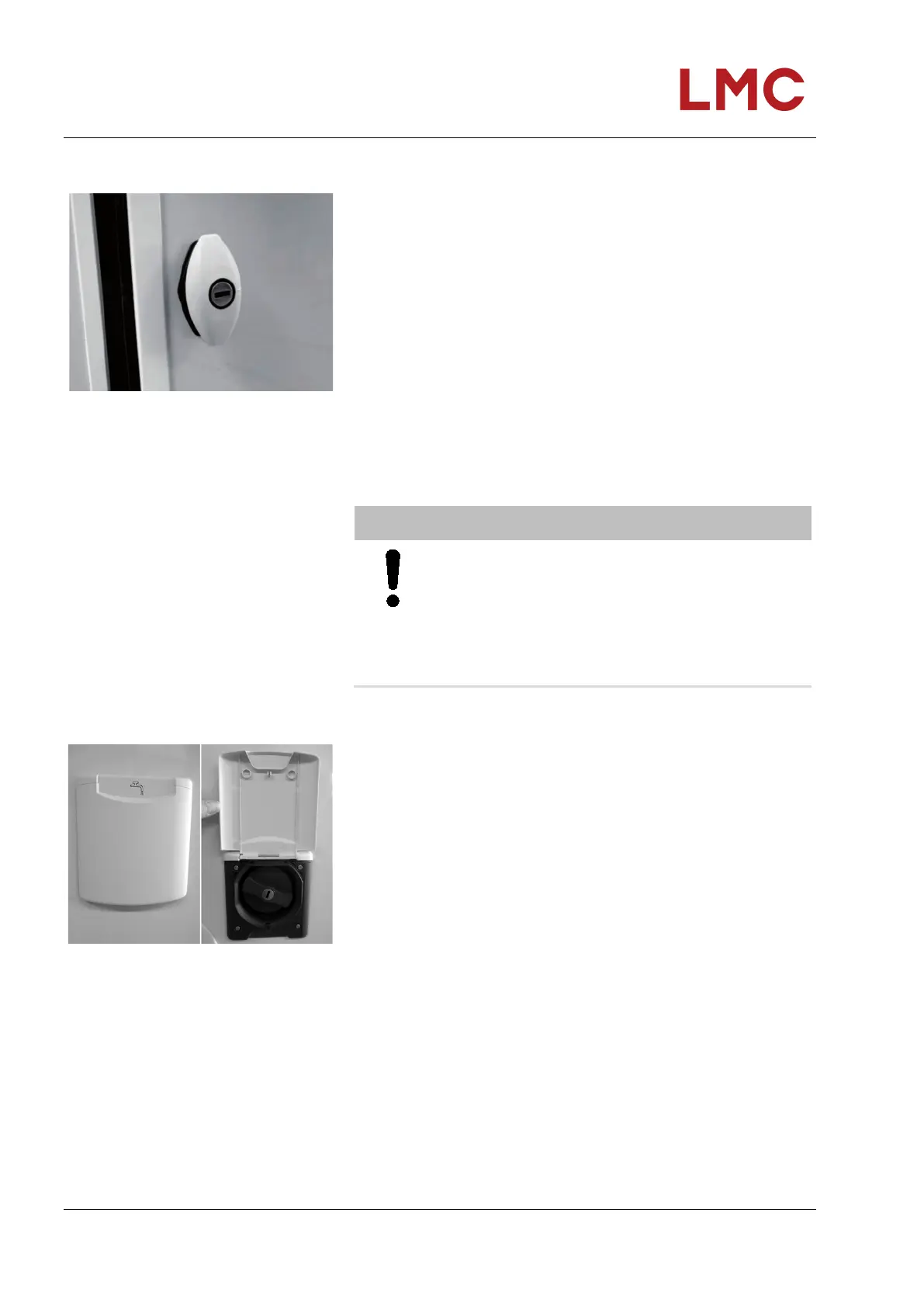

Fig. 20: Service compartment lock
The service locks can be operated with the body door key. They
are not operated via remote control.
Opening the service compartment:
Use the key to unlock the lock and clockwise rotate the knob
by 90°.
At this position, the contact pressure abates but the service
compartment cannot yet be opened.
To open the service compartment, rotate the knob clockwise
by another 90°.
Closing the service compartment:
You can re-engage the lock in opened conditions. Then, after
closing the hatch, it is only necessary to turn it back through 180
degrees and press it in so that it again locks.
ATTENTION
Property damage due to inserted keys!
Keys that are not removed can cause severe
scratches in the outer shell of the caravan body. Keys
can break off.
• Always remove the key immediately after opening
or closing locks.
Lock on the fresh water intake port
Fig. 21: Fresh water intake port
The lock for the fresh water fill intake port is located directly in the
closure cap.
To open, or close, hold the closure cap firmly and turn the lock
180°.
