Operating manual and inspection booklet
Technical data
3435216 45
3.4.2 12 V fuses in the motorhome

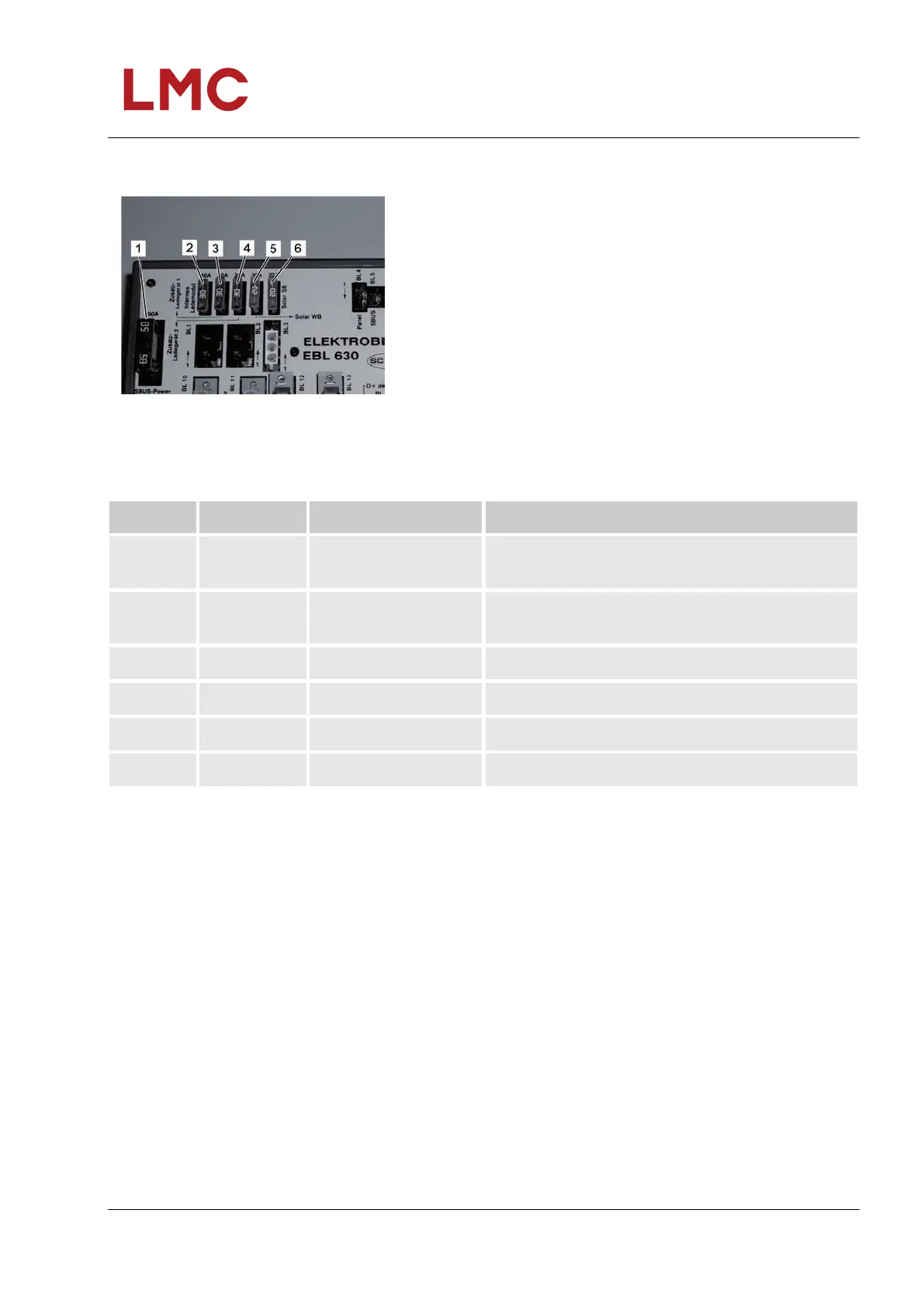

Fig. 5: Layout of the fuse plug-ins on the
EBL 630
The EBL 630 B electric block is fitted in the vehicle under the
front left-hand seat. This is the central power supply system for
all 12 V consumers in the electrical system.
There are six fuse locations on the rear side of the device which
are filled by various input circuits. The arrangement is apparent
from the figure on the rear side of the device (Fig. 5).
The ratings of the individual plug-in fuses and their functions
are shown in the table of current ratings.
The output current is protected at the bus modules by
polyswitch fuses. After fault rectification, they switch themselves
on again for normal operation.
Permitted amps ratings
Position Ampere [A] Function Explanation
1 50
Main fuse Protection of the supply line from the battery to all
consumers
2 30
Internal charge module Protection of internal charging electronics for the
supply battery
3 30 Additional charger 1 Not in use ex-works
4 30 Additional charger 2 Not in use ex-works
5 20 Solar WB Solar PV charging for the living room battery
6 20 Solar SB Solar PV charging for the starter battery
