String-operated baffle (optional)

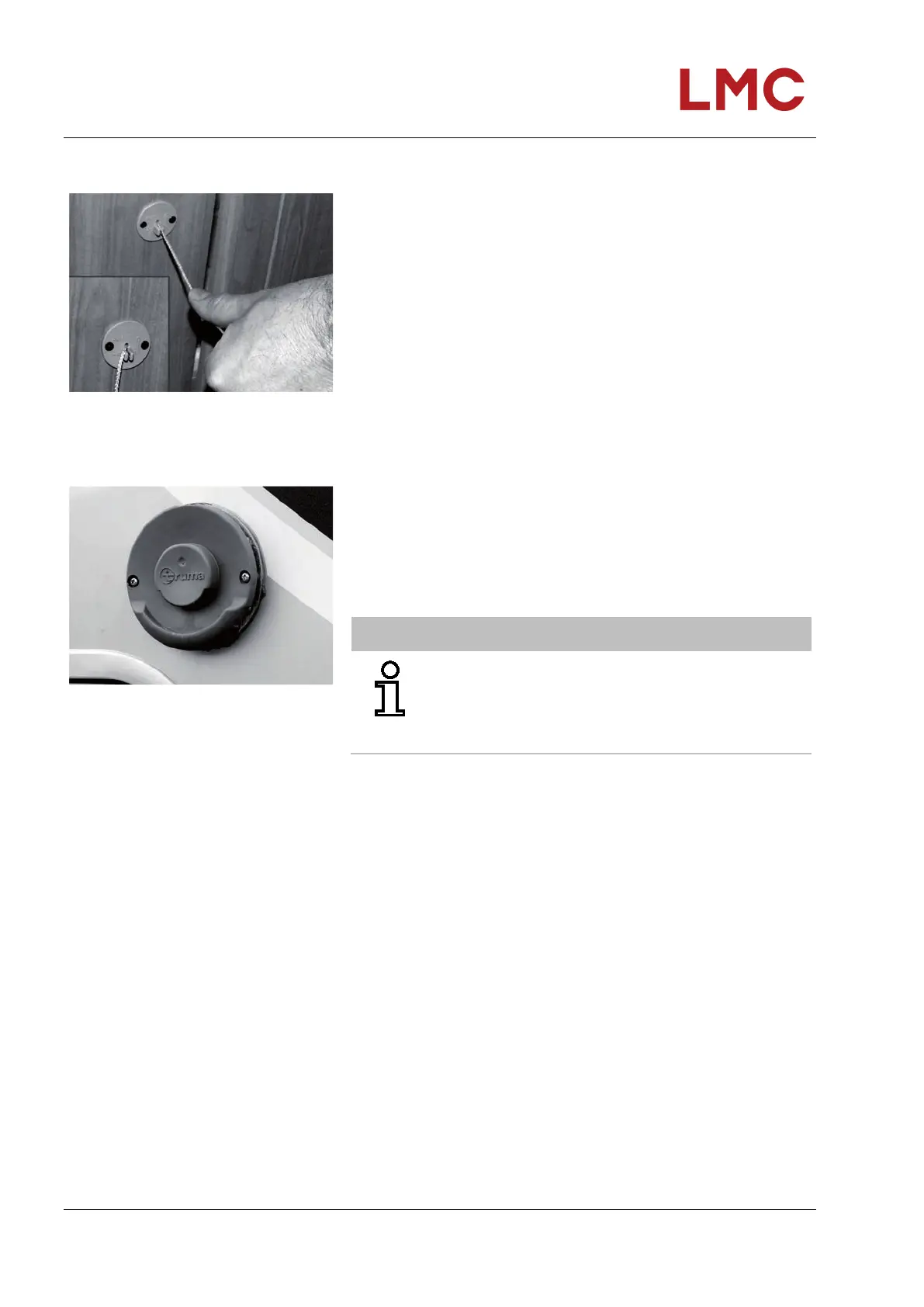

Fig. 79: String-operated baffle
In some areas of the vehicle where continues warm air supplied
is not required or wanted during the heating operation, string-
operated baffles can be used to block the warm air supply.
Depending on the model and selected equipment, these areas
include: External storage locker, alcoves, toilet, fresh water and
waste water tank areas.
Closing the string-operated baffle: Pull the string out and
fasten it to the clip.
Opening the string-operated baffle: Release the string from
the clip.
Wall exhaust stack
Fig. 80: Wall exhaust stack
The wall exhaust stack channels the camping gas that is burned
in the gas heater to the outside. Depending on model and
selected equipment, it is located on the left or right side of the
vehicle.
The opening must always be free and clean to ensure
unobstructed discharge of the exhaust gases.
NOTICE
Never use the cover as a clothes hook or to fasten
objects!
Always keep the opening free of leaves, dirt, and
other fouling!
