ALDE turbo convector

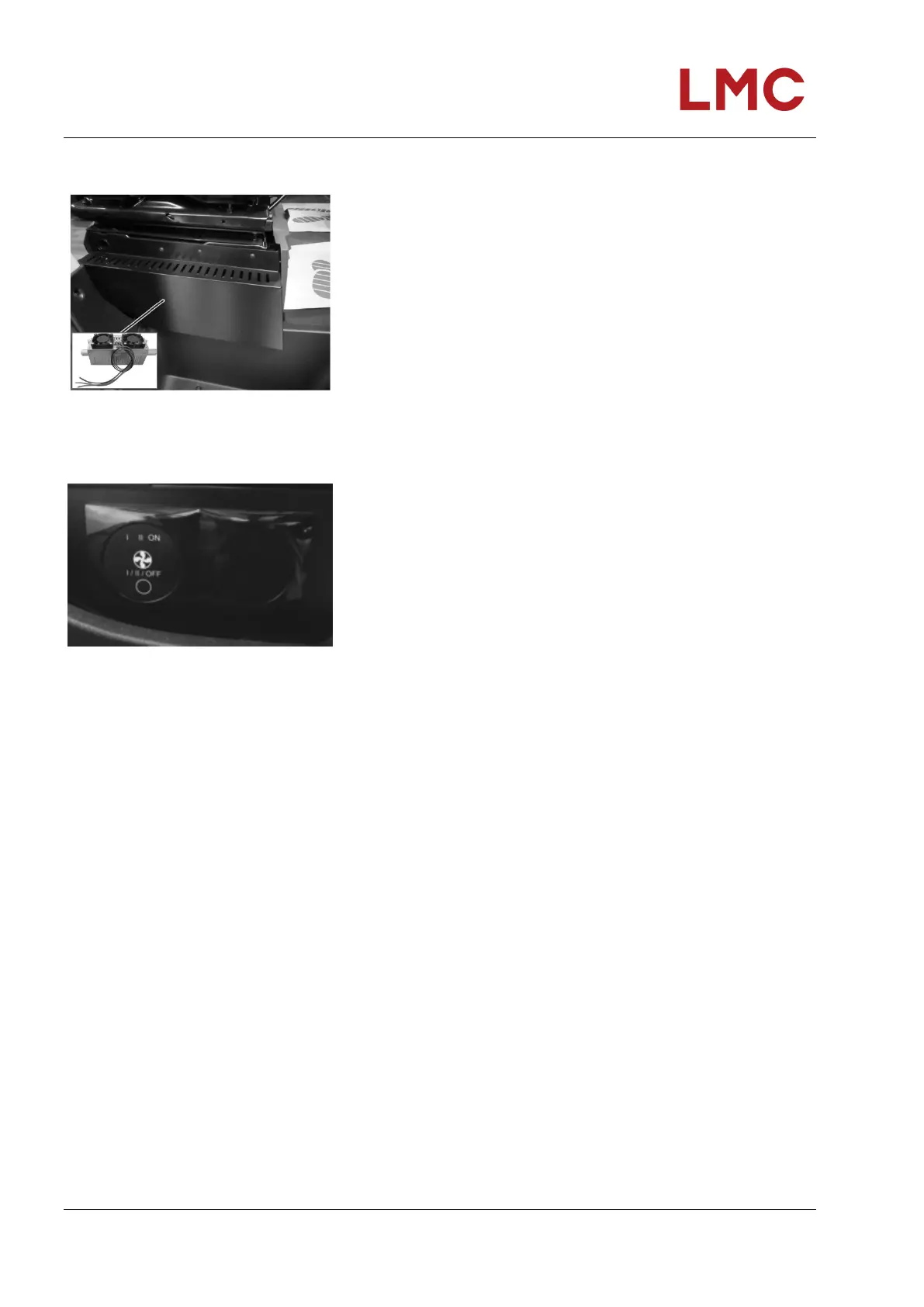

Fig. 86: ALDE turbo convector
The ALDE turbo convector is used to heat the driver cab during
travel. It is located to the side of the driver and passenger seat
assembly.
An extended cooling water hose is used to connect the ALDE
turbo convector to the hot water circuit. Consequently the heated
hot water flows through the heat exchanger – assuming the
switch is opened – and heats the heating liquid pumped in by the
recirculation pump of the ALDE heater (glycol/water mixture).
ALDE turbo convector switch
Fig. 87: ALDE turbo convector
The ALDE switch for the turbo convector is fitted on the driver’s
side on the left next to the steering wheel.
Function:
Preselect level “I”, “II” or “OFF” via the button
Press once = level “I”, press again = level “II” and press once
more = “OFF”.
LED level “I” or “II” illuminates dependent on the pre-selection
(ready for operation)
LED “ON” illuminates if level “I” or “II” has been selected and
12V is applied at the release signal.
The release signal originates from the Alde heater (circulation
pump in operation) so that only hot air is distributed.
LED “I” and “II” = green
LED “ON” = yellow
