Operating manual and inspection booklet
Camping
124 3435216

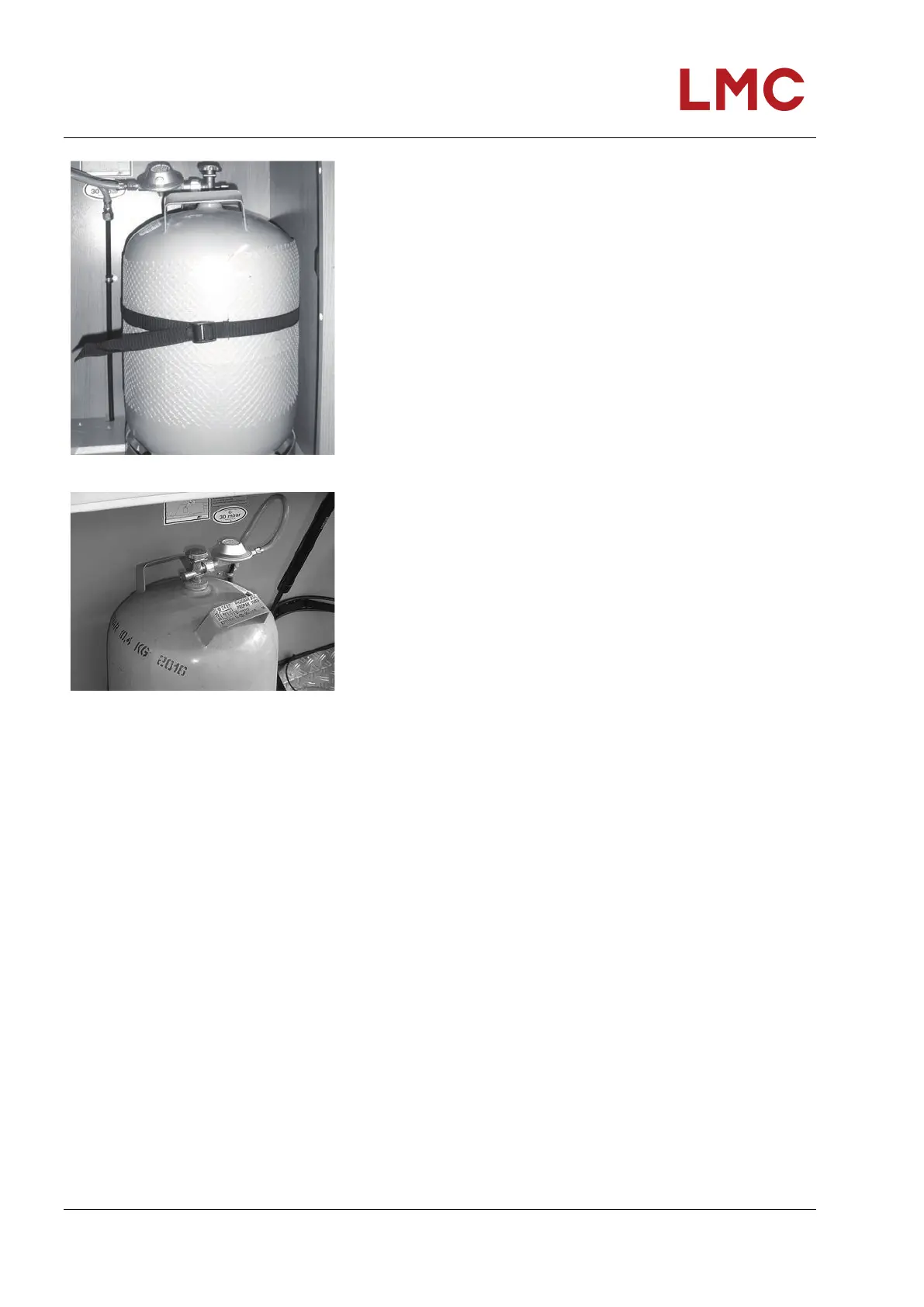

Fig. 105: Gas bottle locker
Fig. 106: Gas bottle with pressure reducing
valve
1. Open the gas locker.
2. For changing an empty gas bottle, close the valve at the
empty bottle.
3. Manually unscrew the union nut of the gas bottle valve (note
the left-handed thread).
4. Loosen the fastening belt of the gas bottle and remove the
bottle from the gas locker.
5. Inspect the gas hose. If it is porous or damaged, have it
replaced by qualified personnel.
6. Place the new gas bottle in the locker and secure with
fastening belts.
7. Manually screw the cap nut of the pressure reducing valve
tightly onto the gas bottle valve.
8. Close the gas locker and engage the lock.
9. In order to operate the gas appliances, open the gas bottle
valve and the applicable quick-action valve.
