Lowering of the lift-up bed into the down position (sleep position)

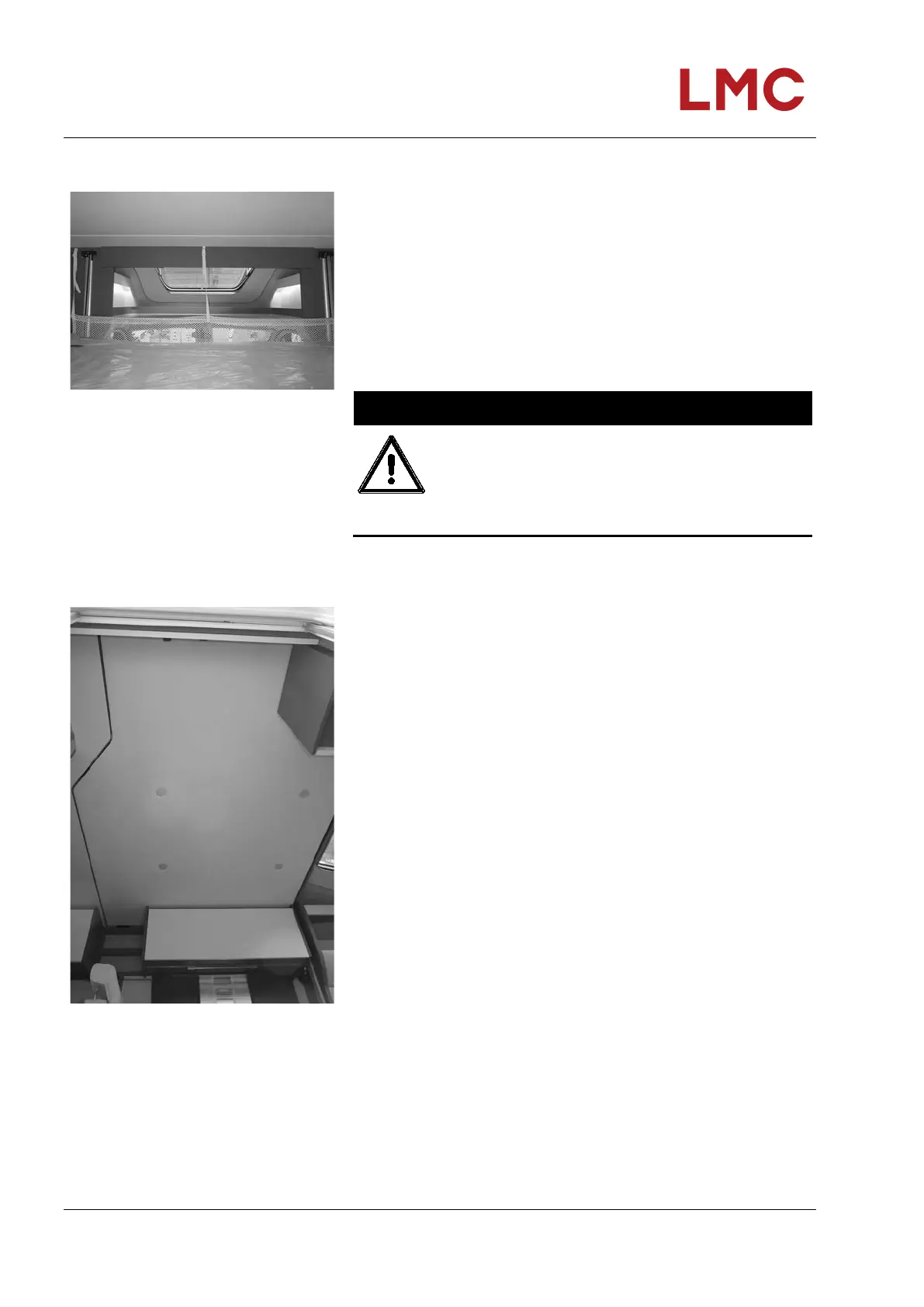

Fig. 167: Lowered lift-up bed with net to
prevent falling out
1. Clear the movement range.
Lower the headrests.
Clear the table.
Ensure nobody is located under the lying surface.
2. Press and hold the operating switch until the bed is fully
lowered and the motor stops automatically.
3. Attach the ladder to the bed’s side rail.
4. Attach the safety nets before use.
CAUTION
For fitting, the tension straps (front/rear) must engage
in the clips fastened on the ceiling.
Then tighten the straps
Maximum load: 250 kg
Raising the lift-up bed into the up position (travel position):
Fig. 168: Lift-up bed in raised position
1. Remove all objects, including the bedclothes prior to moving
up.
2. Stow the safety nets completely under the mattress both to
save space and so that the lift-up bed can latch in place on
the ceiling. (first the left net, then the front and rear nets)
3. Unhook the ladder and stow it in another place, e.g. under
the mattress in the rear of the vehicle.
4. Press and hold the operating switch until the bed latches in
place in the top position (travel position).
An audible warning signal mechanism has been installed.
Consequently, a continuous beep will sound when the vehicle is
started and the lift-up bed is not correctly latched. Please refer to
the table of faults for information on troubleshooting.
