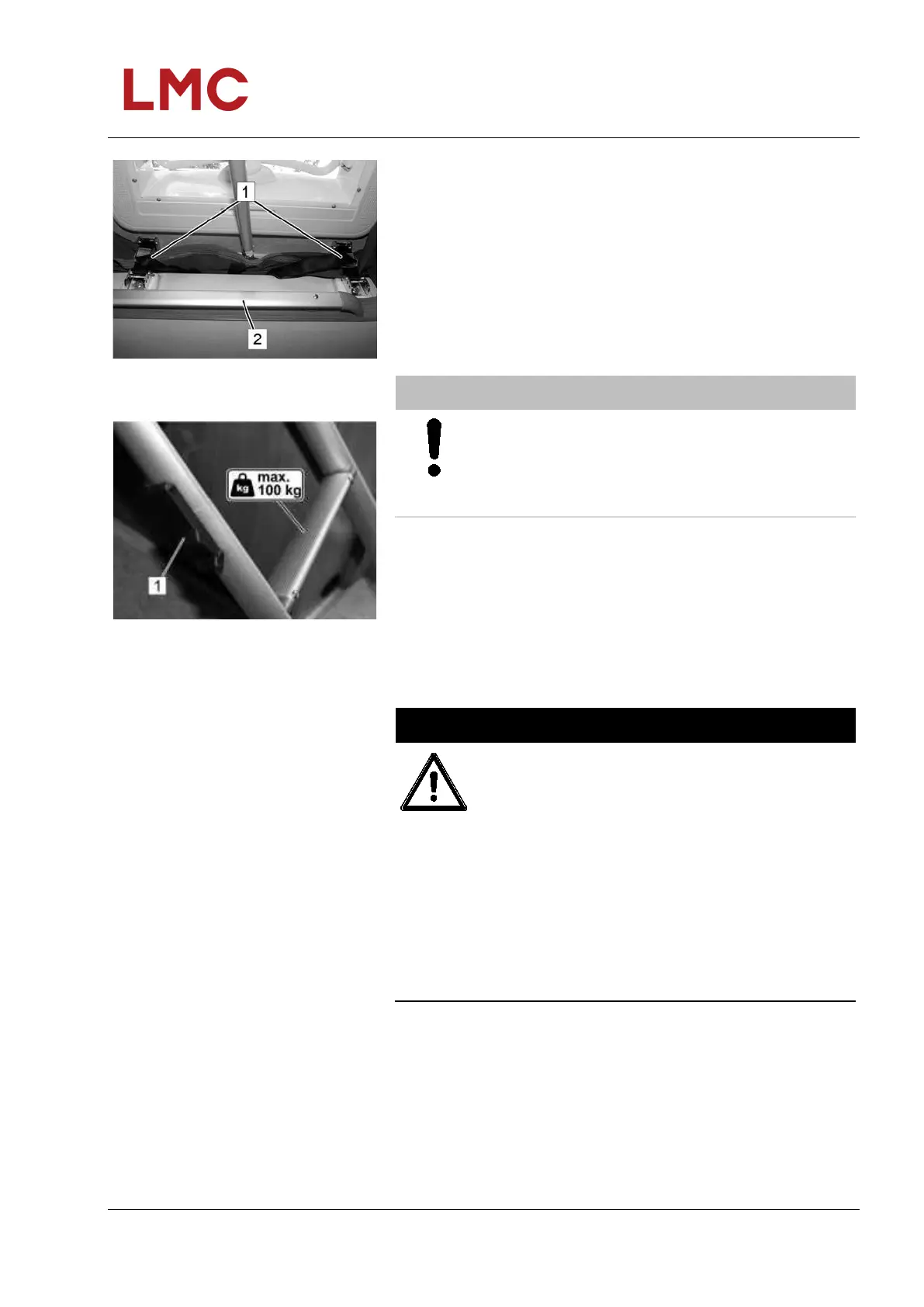

Fig. 169: Opening the pop-up roof
Fig. 170: Locking mechanism (1) of the
access ladder
1. Park the vehicle in a position appropriate to the prevalent
wind situation.
2. Remove any loads on the roof.
3. Open the access hatch.
4. Assemble both parts of the access ladder and interlock the
components (Fig. 170/1).
5. Hang the access ladder in the corresponding rail (Fig. 169/2)
in the access and solidly anchor on the floor.
6. Open the roof latches (Fig. 169/1).
Risk of damage to the roof canopy!
The roof canopy may be damaged when the pop-up
roof is pushed up.
• Never press against the roof canopy!
7. Carefully push the rod at the rope against the GFRP shell
until the pneumatic springs automatically lift the pop-up roof.
8. Always close the access hatch from above when sleeping in
the pop-up roof.
9. Do not touch the interior of the expansion bellows or place
objects against them (such as bedding) as water may
permeate.
CAUTION
Risk of injury if the ladder is used incorrectly!
If the ladder is used incorrectly, there is a risk of injury
due to falling.
• When climbing up or down, always hold the ladder
firmly.
• Never climb or descend the ladder with your back
to the ladder.
• The ladder must not be stood on by more than one
person at a time.
• Never exceed the maximum permitted load
(100 kg).
