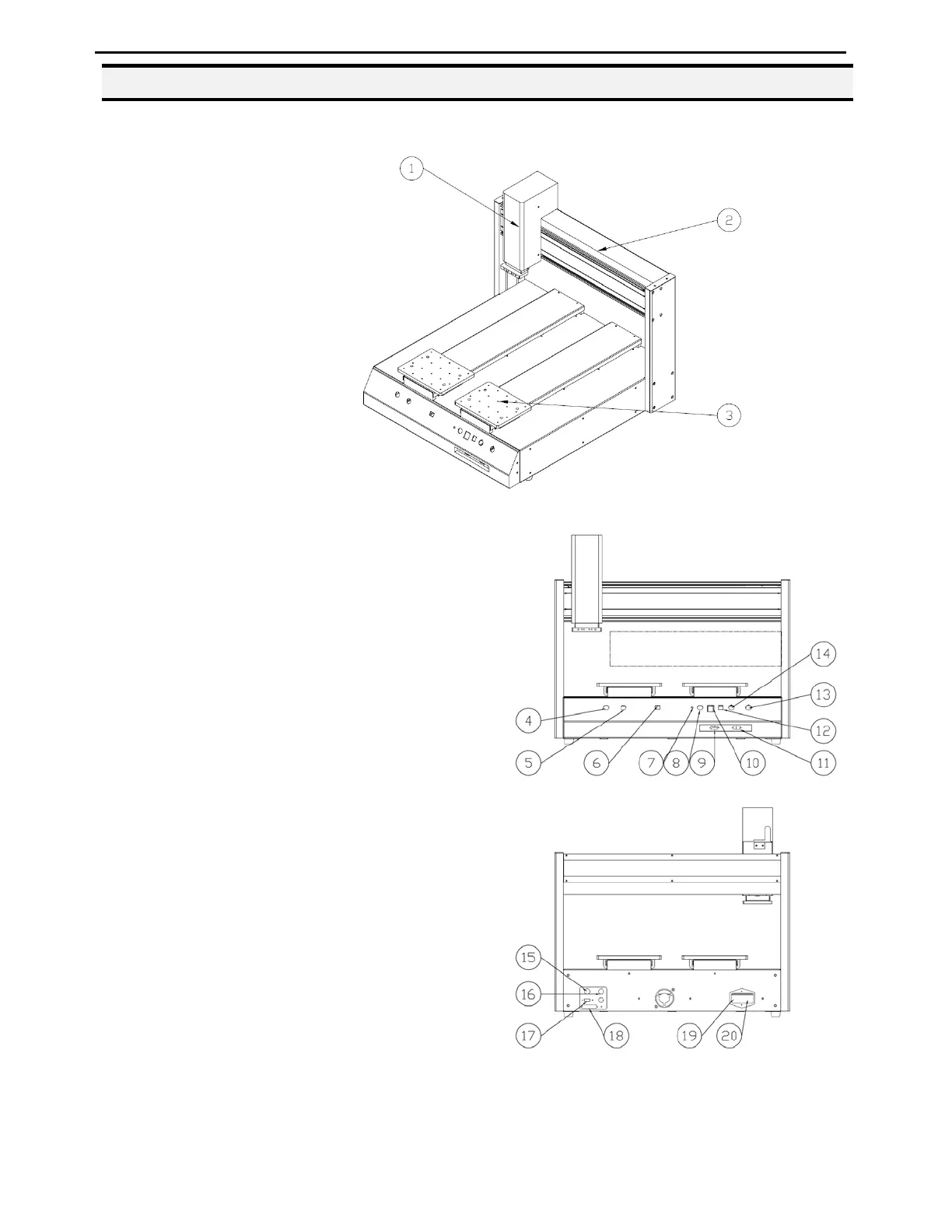

3.1 Robot Overview
1. Z-Axis
2. X-Axis
3. Y-Axis
4. START Button
5. START Button(Left Table)
(Use with START Button)
6. Table Left/Right Switch
7. Power Indicator
8. Purge Button
9. Teach Pendant Connector
10. PROG. No.
11. RS 232
12. RUN/TEACH Mode Switch
13. EMO (Emergency Stop)
14. START Button(Right Table)
(Use with START Button)
15. External Control Port
16. Dispenser Control Port
17. USB Port
18. I/O Port
19. Power Inlet
20. Power Switch
