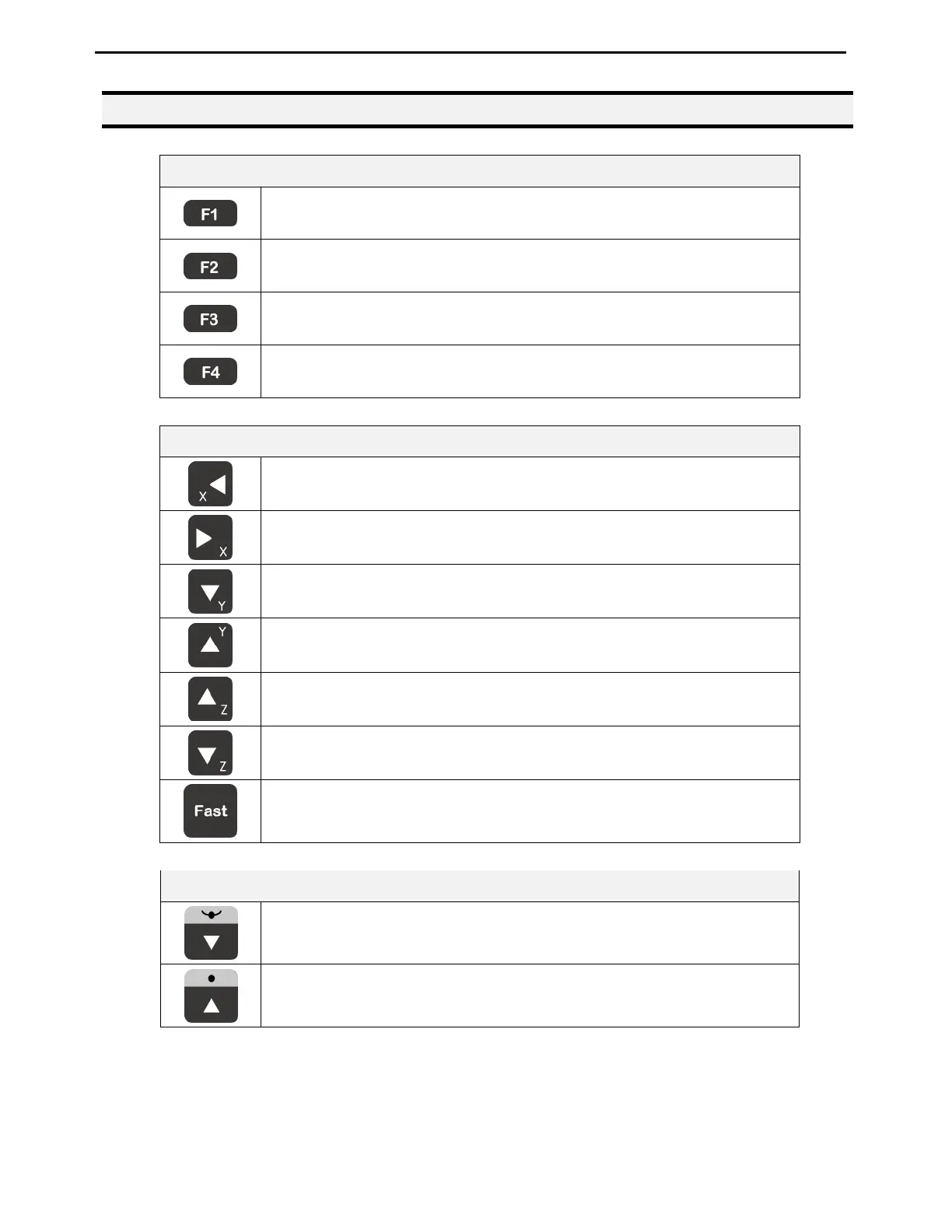

4.4 Key Introduction
Menu Keys
Opens the Point registration menu.
Select the options shown on the display.
Opens F2 Menu.
Select the options shown on the display.
Opens F3 Menu.
Select the options shown on the display.
Opens the F4 Setup menu.
Select the options shown on the display.
Jog Keys
Jogs the X-axis in the left direction.
Jogs the X-axis in the right direction.
Jogs the Y-axis in the backward direction.
Jogs the Y-axis in the forward direction.
Jogs the Z-axis UP.
Jogs the Z-axis DOWN.
Accelerates jog speed – used with X+, X-. Y+, Y-, Z Up, Z Down.
Navigation Display
Moves forward (1) memory address.
Moves backward (1) memory address.
To Next Page
