4.9 Teach Pendant Key Assignments

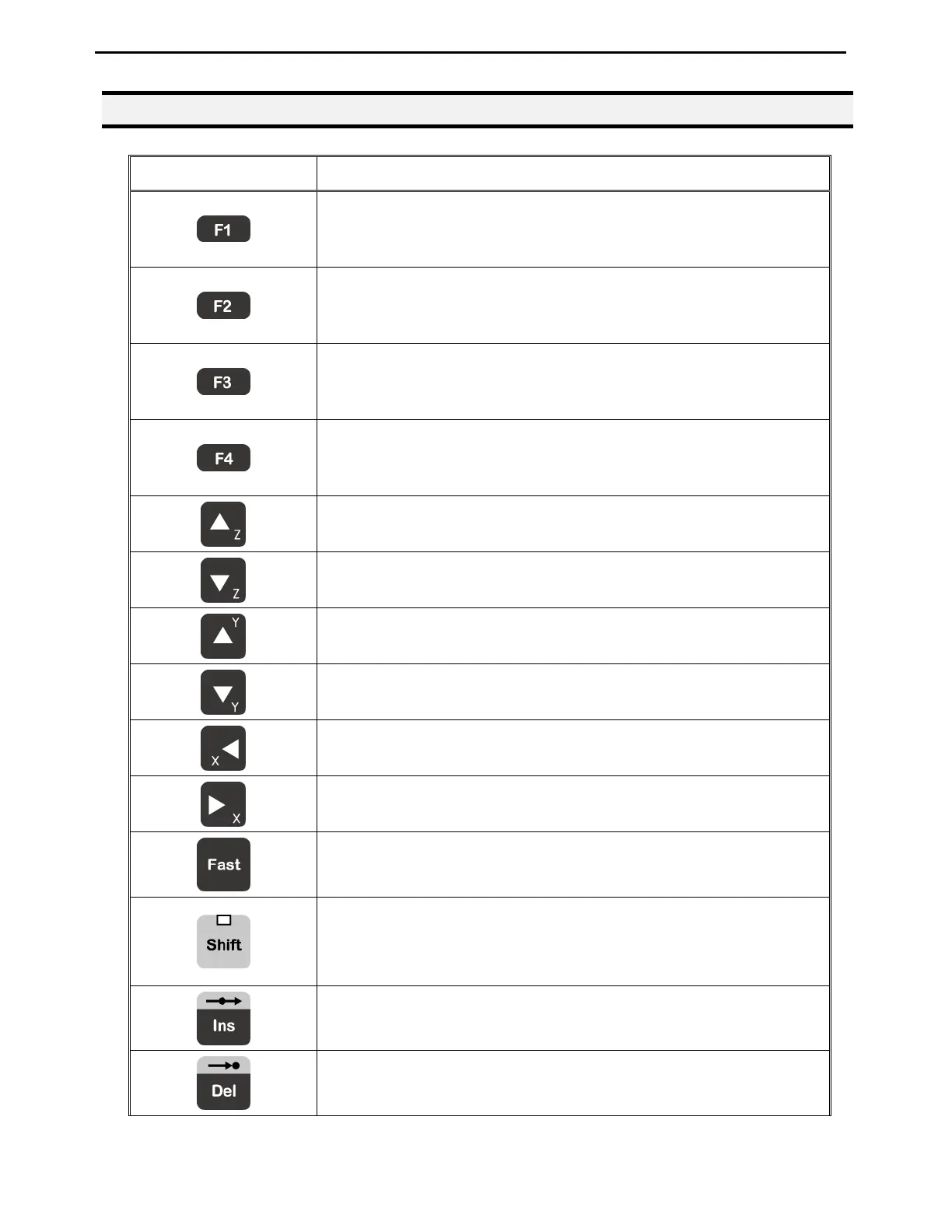

Key Function
Opens the F1 Point registration menu.
Used to select options shown on the display.
The use of this key depends on the current menu displayed.
Opens the F2 Menu.
Used to select options shown on the display.
The use of this key depends on the current menu displayed.
Opens the F3 Menu.
Used to select options shown on the display.
The use of this key depends on the current menu displayed.
Opens the F4 Setup Menu.
Used to select options shown on the display.
The use of this key depends on the current menu displayed.
Jogs the Z-axis UP.
Jogs the Z-axis DOWN.
Jogs the Y-axis in the forward direction.
Jogs the Y-axis in the backward direction.
Jogs the X-axis in the left direction.
Jogs the X-axis in the right direction.
Accelerates the jog speed when used with X+, X-. Y+, Y-, Z Up,
Z Down.
If Shift is pressed and released, then another key is pressed, the
secondary function of that key (shown in light grey) will be
executed.
Inserts a memory address before the current address.
Deletes the current memory address.
To Next Page
