4
X1 - X1 ALU
3 INSTALLATION

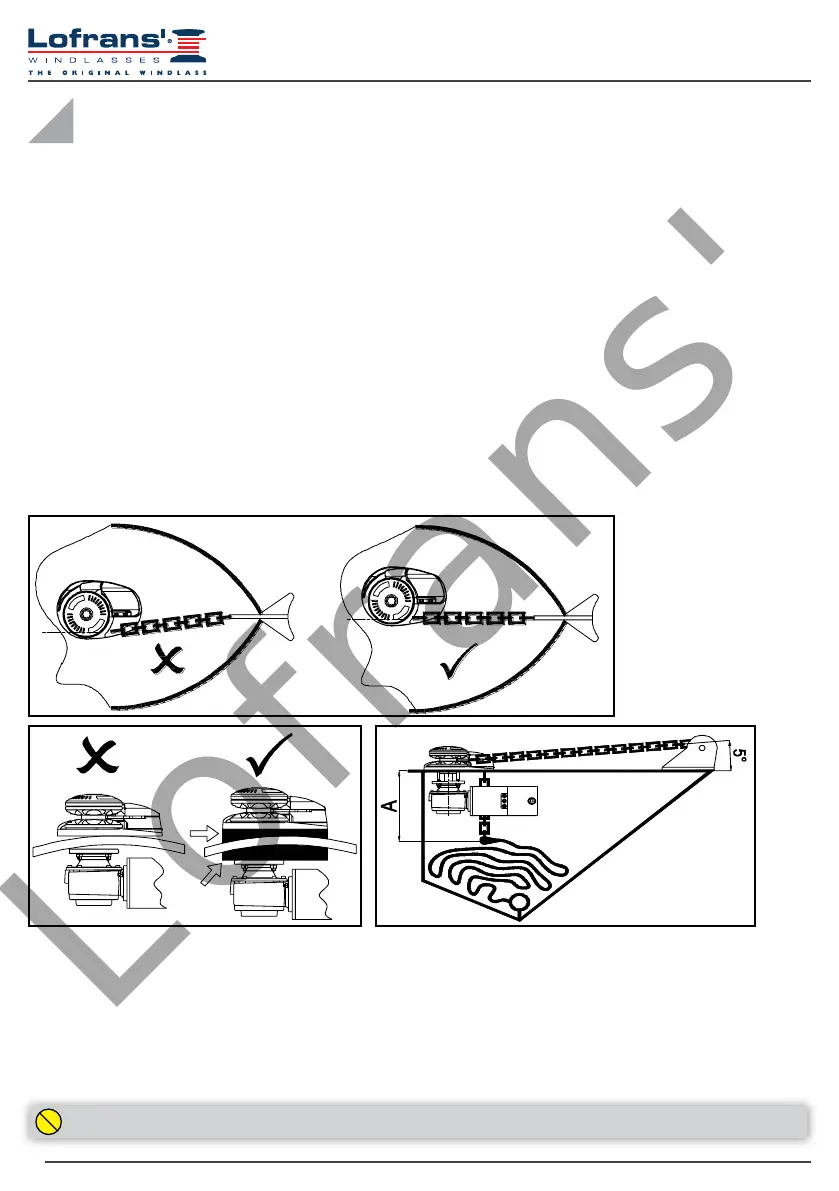

1. Bow roller alignment: the precise alignment of the anchor windlass to the bow roller is essential for the correct operation of the
anchor windlass.
2. The parallelism between deck oors must be guaranteed; should it not occur, duly compensate the difference.
3. Chain locker depth: the chain fall into the chain locker must be such that when the chain is completely stored, there must be a
minimum of 300 mm. between the underside of the deck and the top of the heaped chain.
4. Bow roller height: it must be such to guarantee a chain inclination lower than 5 degrees.
3.1 Contents of the package
In addition to the present manual, the package contains:
3.2 Equipment necessary for installation
3.3 Recommended accessories
Use exclusively original Lofrans’ accessories and spare parts, designed and manufactured to ensure performances, duration and for
keeping valid the warranty. For information on available spare parts, contact your local reseller or visit website www.Lofrans’.com.
3.4 General requirements for installation
In order to operate the anchor windlass correctly, it must be installed to meet the following conditions:
Anchor windlass complete with motor reducer
Remote control switch/remote control reverser box
Base gasket
Drill
10 mm bit for wood and steel
2
3
4
1
Non-observance of these requirements will cause the malfunctioning of the anchor windlass.
Drilling template
Handle
Screws
50mm diameter hollow drill bit (deck template page 39)
10 mm., 13 mm., and 17 mm. hexagon keys
