Basic Setup
Basic Setup

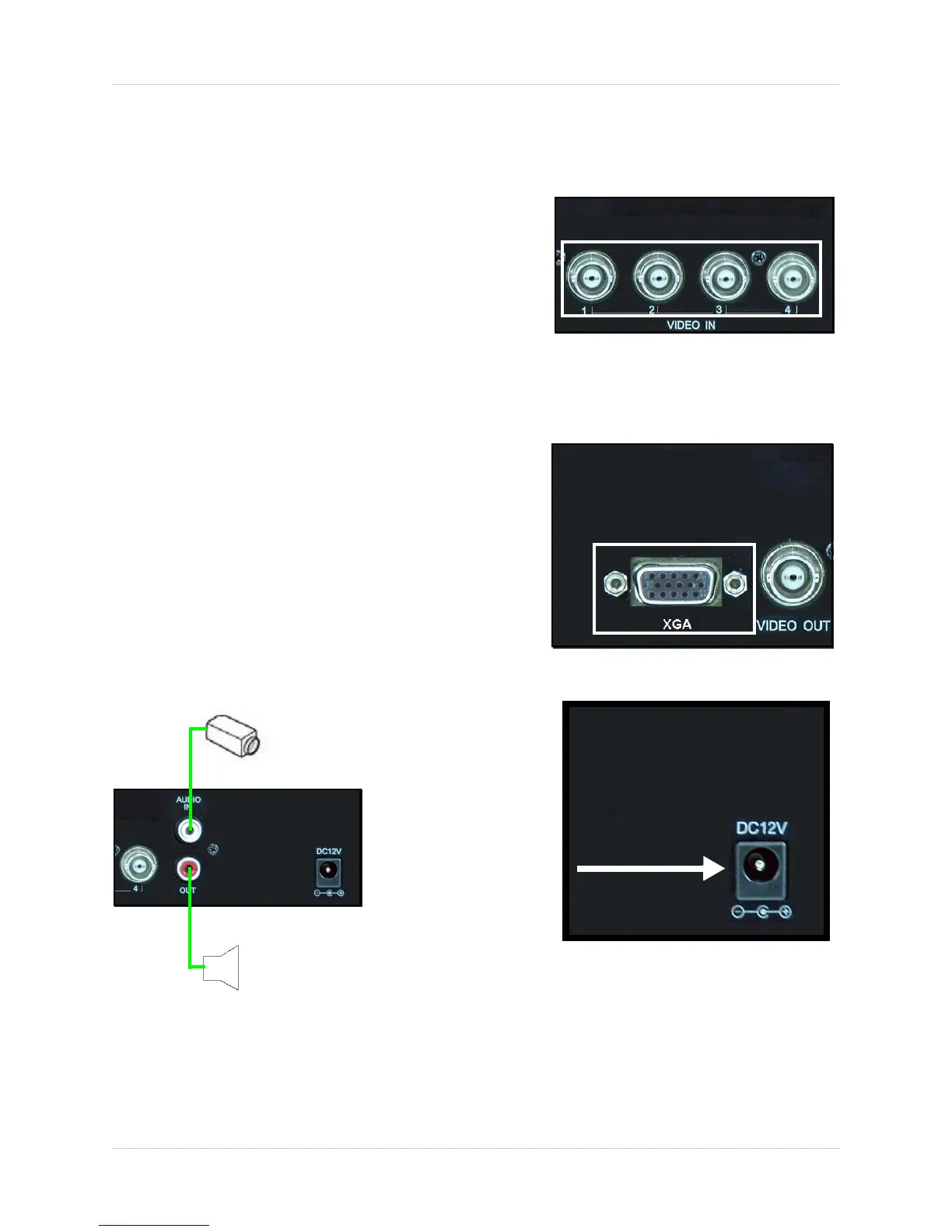

1. Connect the Cameras
a. Connect up to four BNC cameras to the BNC
(female) ports on the rear panel of the system.
2. Connect the Monitor
a. Connect the VGA cable from your monitor to the
VGA port on the rear panel of the system.
3. Connect the Power Adaptor
a. Connect the power cable to the power adaptor.
b. Connect the power cable to the DC12V port on
the rear panel of the system.
c. Connect the power adaptor to a wall outlet.
Optional
You can connect line-in audio (RCA) from an audio
capable camera or microphone (not included). Use the
audio-out port (RCA) to connect speakers (not included).
LINE IN AUDIO /
AUDIO CAPABLE CAMERA
(not included)
AUDIO OUT /
SPEAKERS
(not included)
Figure 1.0 Connect up to four BNC cameras
Figure 1.2 Connect the power cable
Figure 1.1 Connect a VGA monitor
