Front Panel
Front Panel

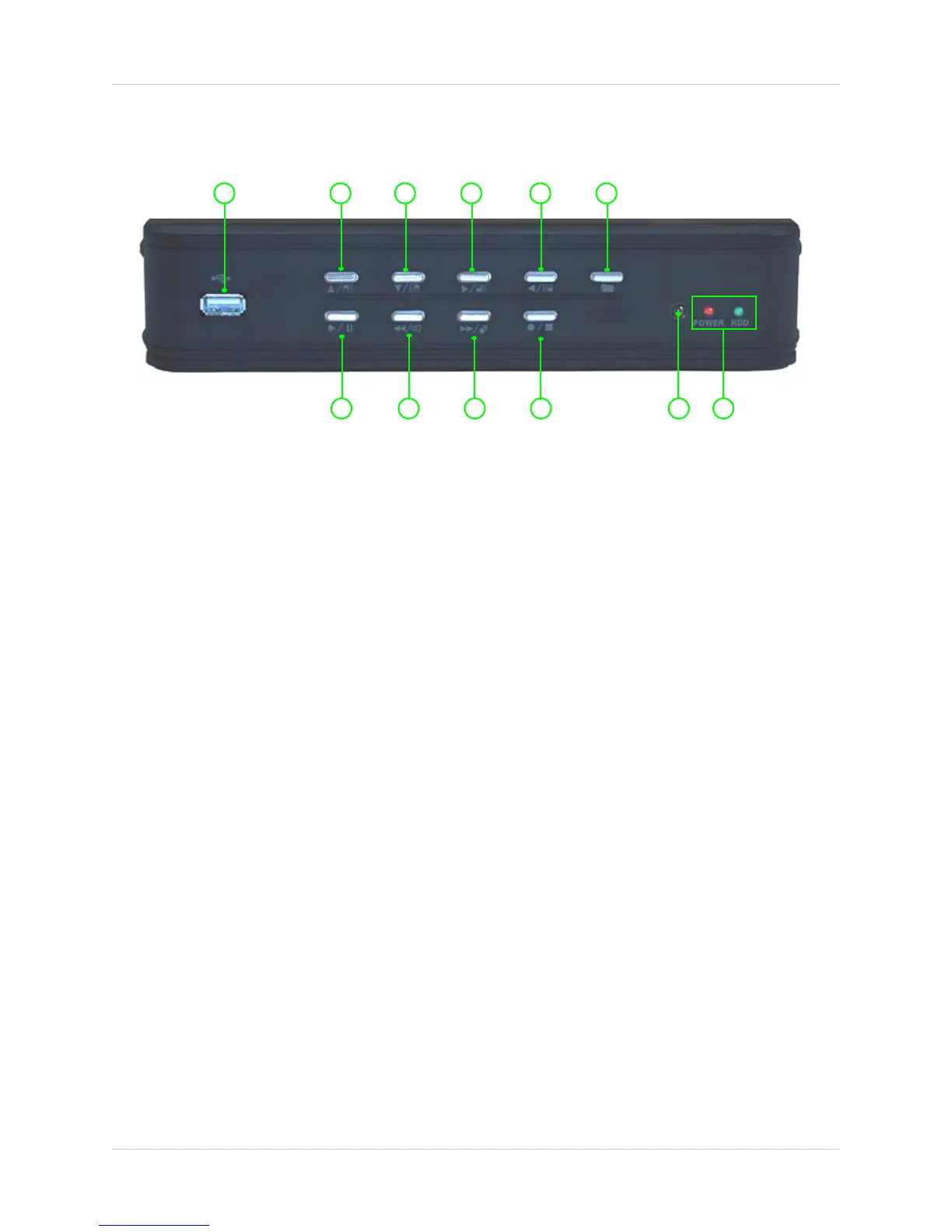

1. USB 2.0 port: Connect a USB flash drive for backup.
2. Up / CH 1: In menus, move cursor up; during live viewing, view channel 1 in full-screen.
3. Down / CH 2: In menus, move cursor down; during live viewing, view channel 2 in
full-screen.
4. Right / CH 3: In menus, move cursor right; during live viewing, view channel 3 in full-screen.
5. Left/ CH 4: In menus, move cursor left; during live viewing, view channel 4 in full-screen.
6. Menu: Press to open system Menu; closes/exits options/menus.
7. Play/Pause: During live viewing, press to open the Event List and select a recorded event;
during playback, press to play/pause video.
8. Rew/Mute: During playback, press to increase reverse playback speed (2X, 4X, 8X); in Live
Mode, press to Mute/Unmute audio; in menus, press to enter/confirm selections.
9. FF/Sequence: During playback, press to increase forward playback speed (2X, 4X, 8X);
during live viewing, press to start/stop Auto-Sequence mode (system displays each channel
in full-screen in sequence).
10. Record/Stop: During playback, press to stop playback; during live viewing, press to start/
stop manual recording (recording Schedule must be disabled).
11. IR Receiver: Receives infrared signal from the remote control.
12. Power / HDD Indicators: LED indicator for system power: when system is powered on, LED
is red; LED indicator for internal hard disk: when in continuous recording mode, LED pulses
green.
12 4 5 63
7 8 9 10 1211
11
