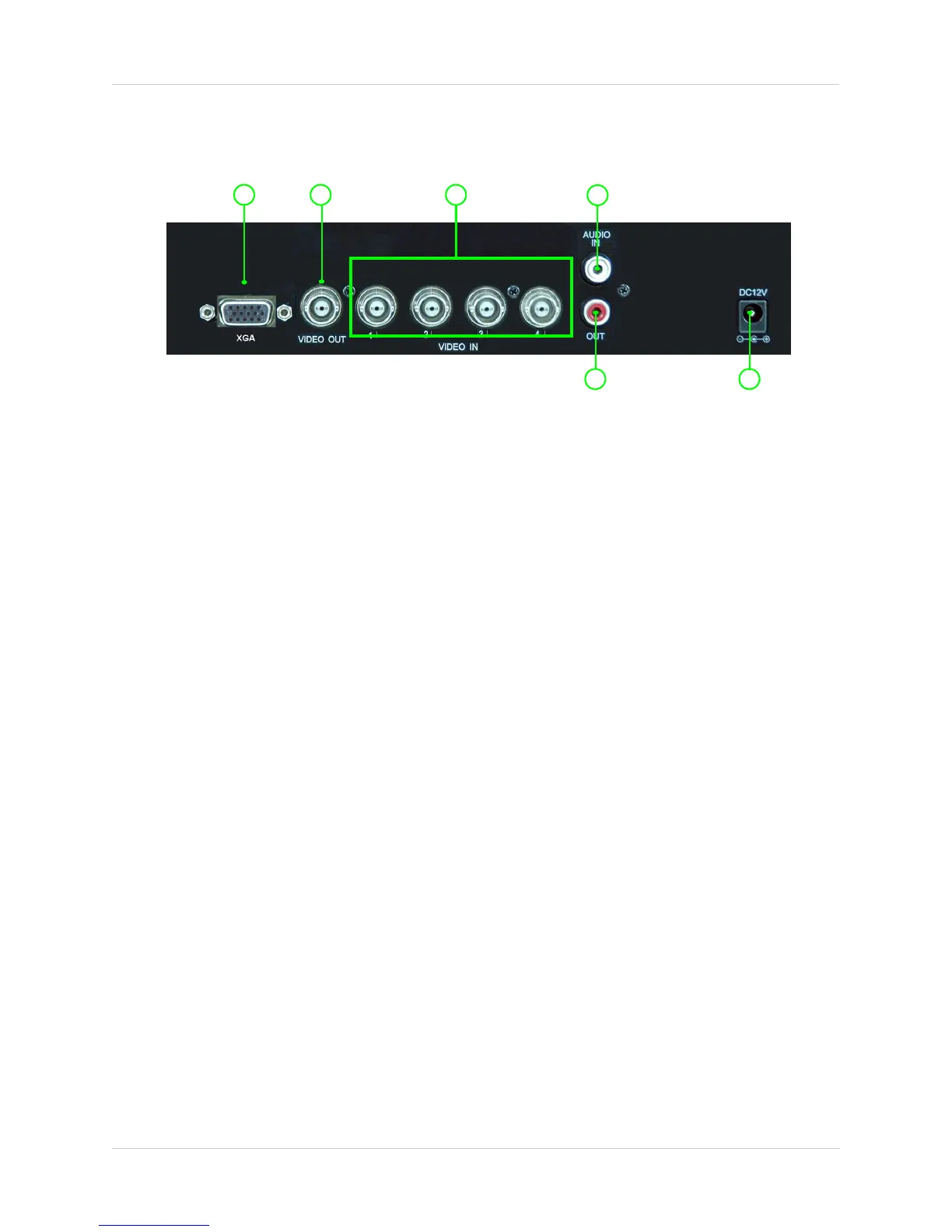

Rear Panel
Rear Panel
1. XGA: Port to connect a VGA (VGA or XVGA output) monitor (not included).
2. Video Out: BNC (female) port to connect the system to a DVR or observation system.
3. Video In: BNC (female) inputs for cameras 1~4.
4. Audio In: RCA (female) port for audio recording (audio capable cameras or microphone).
5. Audio Out: RCA (female) port to connect the system to external speakers, a DVR, or an
observation system
6. DC 12V: Power port for the included power adaptor.
1 2 3
4
5 6
