LHV2000 Series Hard Drive
Installation
20
The system comes with a pre-installed 3.5" SATA hard drive. Depending on your model,
you can install:
• LHV2104 / LHV2108 / LHV2116: You can replace the hard drive with one up to a maxi-
mum size of 4TB.
• LHV2216: You can replace the hard drive with two hard drives up to a maximum size of
4TB each.
20.1 Installing a Hard Drive
20.1.1 LHV2104 / LHV2108 / LHV2116
CAUTION
Make sure that the system is OFF and the power adapter is disconnected before removing/installing the
hard drive.

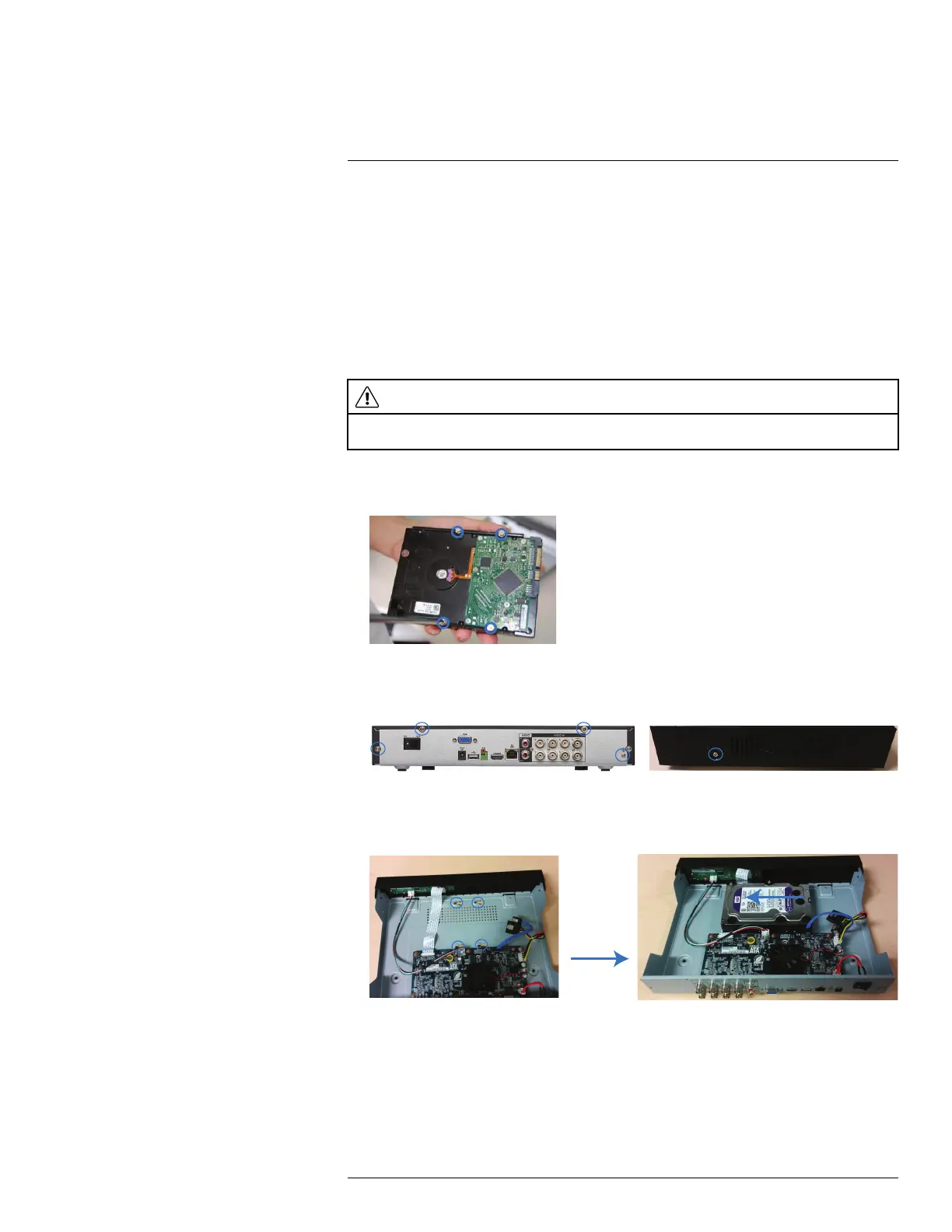

To install the hard drive:
1. Insert hard drive screws (4x) on the hard drive and tighten them half way.
2. Power off the system, and unplug all cabling from the system.
3. Remove the rear panel screws (4x) and side panel screws (1x on each side). Remove
the cover.
4. Place the hard drive over the screw slots on the bottom of the system and then slide
the hard drive into place. The SATA connectors on the hard drive should face the right
side of the unit if looking at it from the rear.
