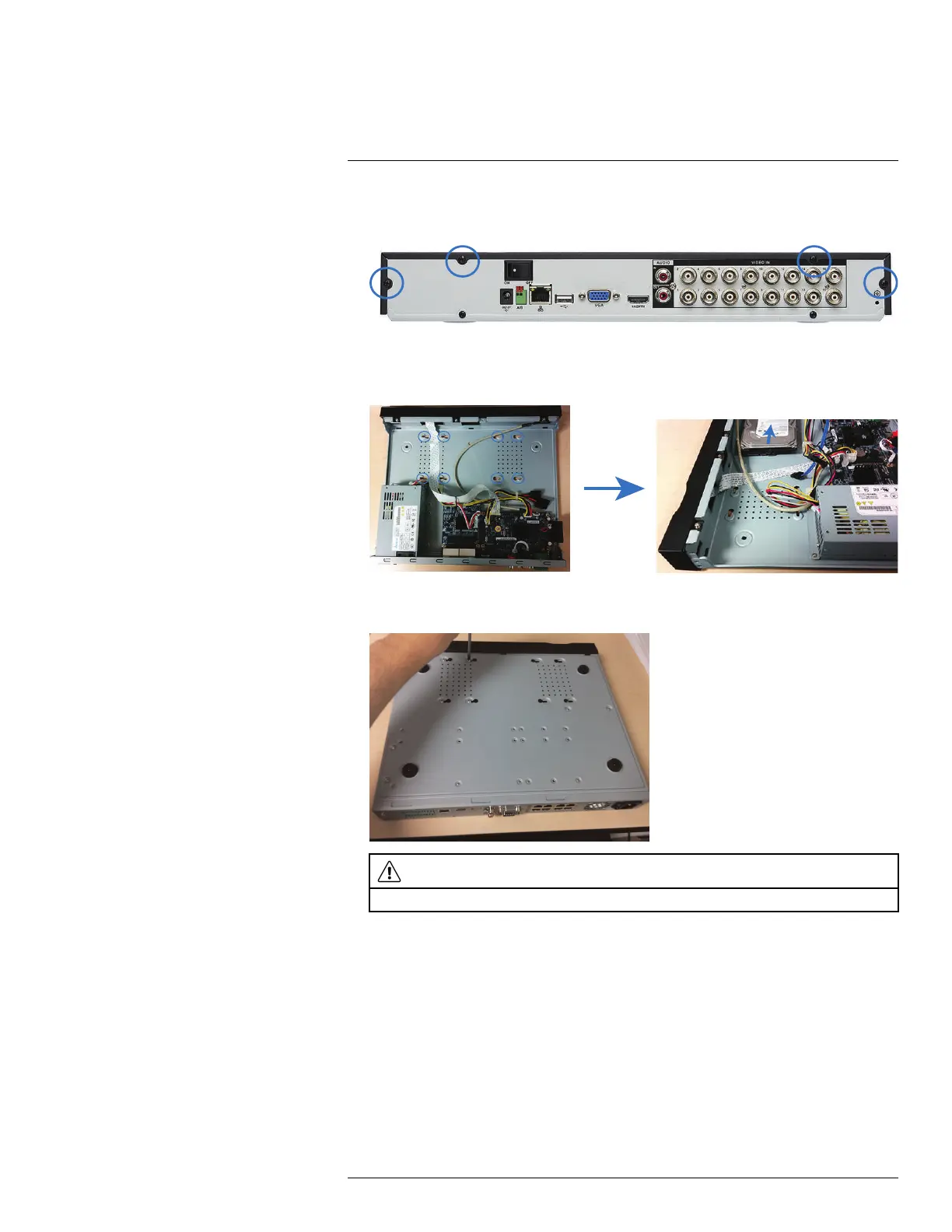

LHV2000 Series Hard Drive Installation
20
2. Power off the system, and unplug all cabling from the system.
3. Remove the rear panel screws (4x). Remove the cover.
4. Place the hard drive over one of the sets of screw slots on the bottom of the system
and then slide the hard drive into place. The SATA connectors on the hard drive should
face the center of the unit.
5. Turn the system over carefully. Tighten the hard drive screws (4x) to secure the hard
drive.
CAUTION
Hold the hard drive in place when turning the system over to prevent damage to the system.
#LX400060; r.35927/36038; en-US
184
