4. Place the receiver in a location that will have a clear reception to your camera*. Rotate the
tabletop stand to help position the LCD receiver to your liking.
5.
OPTIONAL
: Connect the included AV cable to AV OUT port on the system for viewing on a TV,
VCR, or Monitor.
NOTE: When using AV Out, the LCD screen will be blacked out—the image will only appear on the
TV, VCR, or Monitor.
6. Slide the power switch on the rear panel to the “ON” position.
7. Adjust the antenna on the receiver as necessary to provide the clearest reception.
POWER
ADAPTER

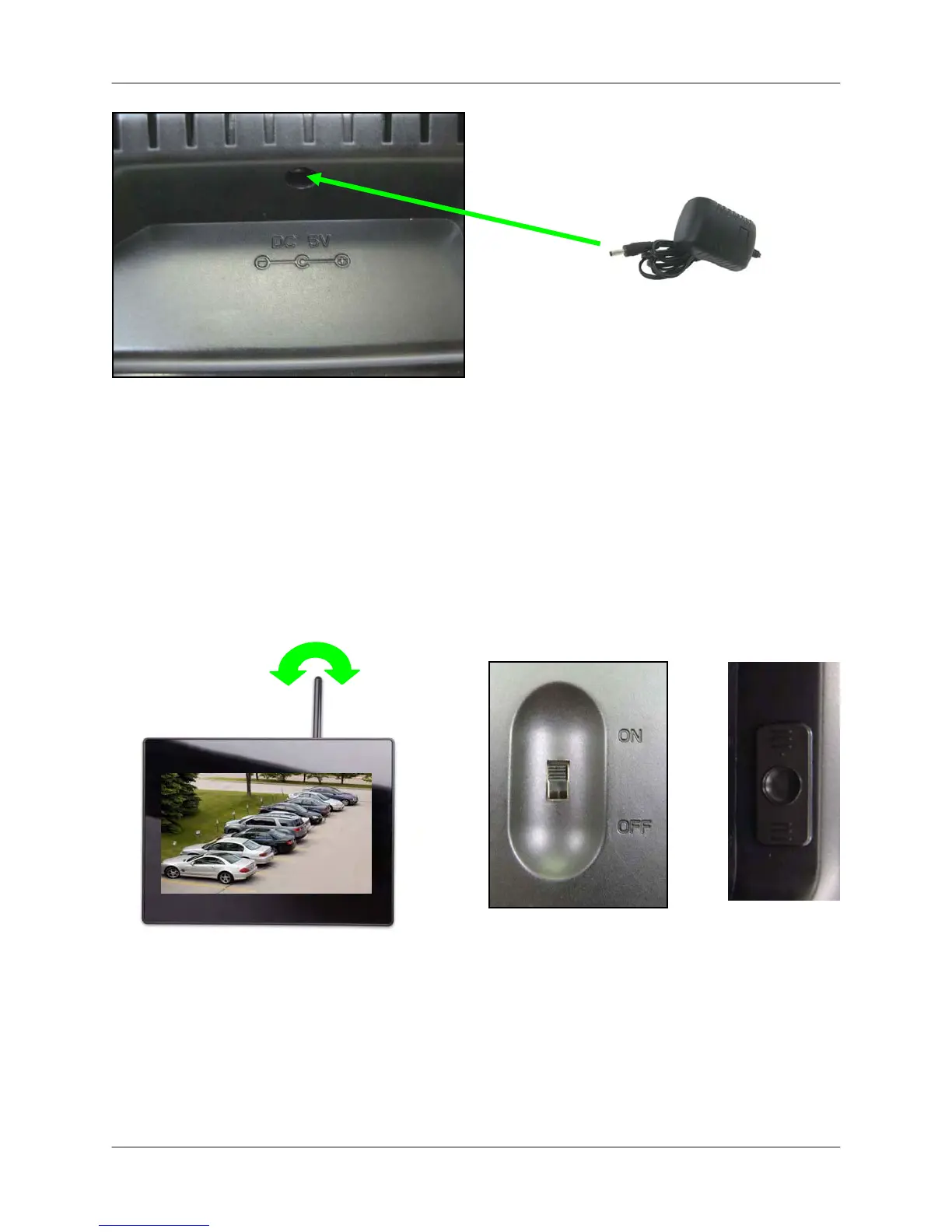

Figure 3.3 Power on the
LCD receiver.
*LW2900 Series uses a slide switch
located on the side panel.
Fi
ure 3.2 Connect the 5V AC adapter.
Figure 3.4 Position the receiver and
adjust the antenna
15
