Under-the-Counter, Wall, or Ceiling Mounting
To set up the wireless receiver:
1. Select a location to mount the receiver, i.e. under a counter or cupboard, wall or ceiling.
The location should have a clear reception to your camera*. Place the mounting stand in the
desired mounting position and mark holes for the screws.
2. Drill the holes, and then mount the stand to the desired surface using the provided screws.
Make sure all three screws are fastened tightly at the connection points.
3. Adjust the antenna on the LCD receiver to allow for proper clearance with your mounting
surface.
4. Attach the LCD receiver to the mounting stand. Adjust the position of the LCD receiver and
tighten the bolts with included Allen key.
Fi

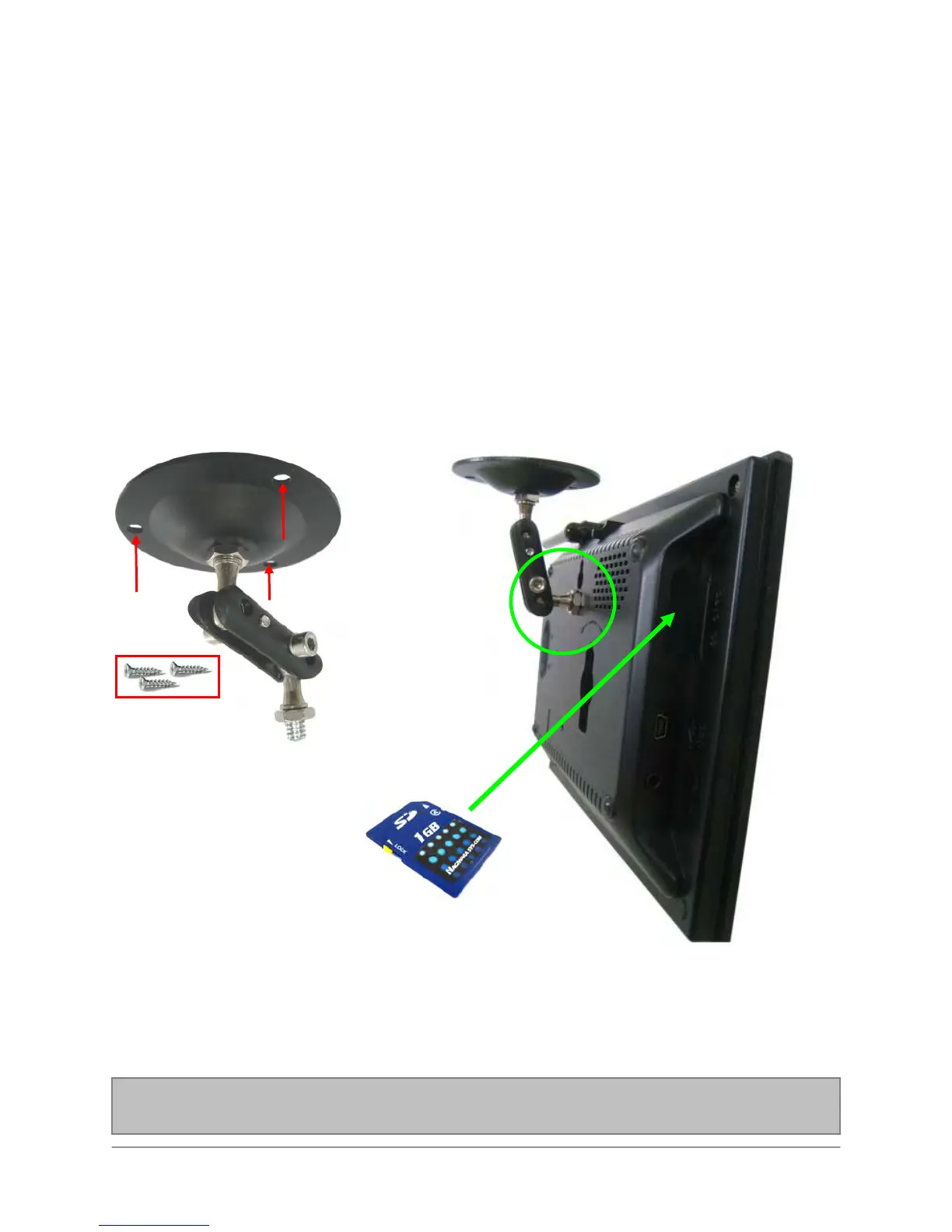

ure 3.5 Mount the stand, attach the LCD receiver, and insert the SD card.
5. Insert the included SD card into the SD Card slot on the left panel of until you hear a “click.”
The card will not be flush when completely inserted.
NOTE: The receiver is compatible with most major brands of SD card up to 16 GB.
*Avoid installing in a location which requires the wireless signal to pass through cement, concrete, and metal
structures. This will reduce the range of transmission.
