Using the System
By default, the camera included with your system is automatically paired to the wireless
receiver. The camera and receiver will communicate with one another once they are powered
on.

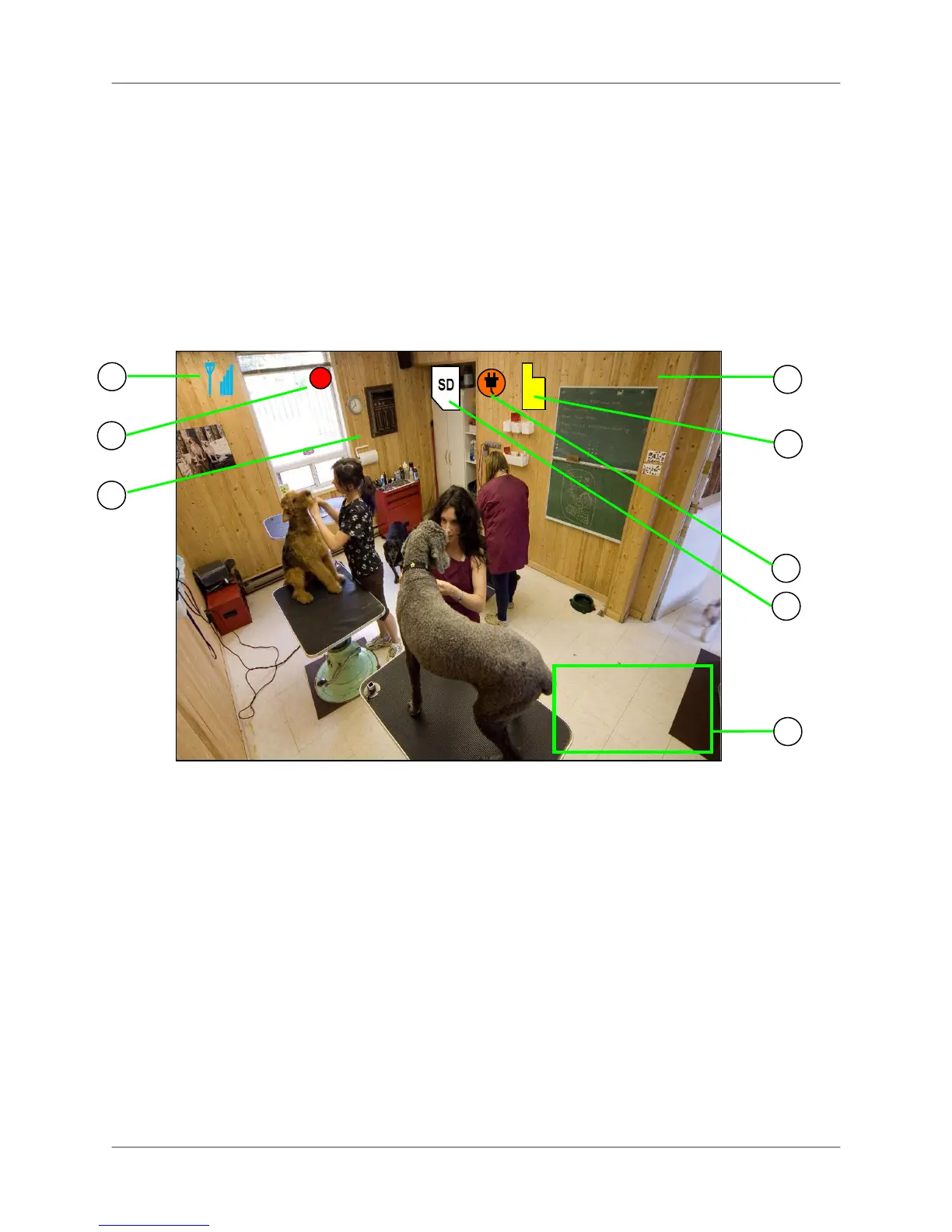

On-Screen Display
With camera 1 properly connected and powered on, the system displays a single channel full-
screen live view of the camera.
NOTE: You should always power on the cameras before powering on the receiver.
1. Signal Indicator: Strength of the wireless signal between the camera and the wireless
receiver.
2. Recording Indicator: “REC” appears during manual, motion, and schedule recording.
3. File Name: Name of the file actively being recorded.
4. Camera indicator: Displays the camera you are presently viewing; position of camera
indicators shifts to the left side of the screen while in Quad mode.
5. File Icon: Flashing yellow icon indicates a new video file is on the SD card.
6. Power Failure icon: Flashing icon indicates a power failure occurred while the system was
recording.
7. SD Card icon: Icon appears when an SD card is present in the receiver; an SD card is required
for recording.
8. Time Stamp: The current date and time on the system.
C
C
a
a
m
m
1
1
1
2
4
Fi
ure 4.0 Live viewin
– sin
le channel
R
R
E
E
C
C
160602-1.AVI
3
6
5
2009 07 17
16:32:05
8
7
