On-Screen Display (cont’d.)
1. Signal Indicator – The signal indicator
shows the strength of the signal being
received from the camera.
The number of bars in the Signal Indicator
shows the strength of the signal – One or No
Bars indicates the signal is poor, and 4 bars
indicate a very strong signal.
NOTE: Signal Indicator not shown while
in Quad Mode.
2. Recording Indicator: The red REC icon
indicates the system is currently recording.
3. File Name: Name of the file actively being
recorded. This file will appear in the file list on the SD
card. The Recording File stamp indicates the hour,
minutes, and seconds that the system started
recording (see figure 4.1).
4. Channel Indicator – Displays the current channel
number. Press the Channel—M button on the
Receiver to switch between available cameras.
5. File Icon: Flashes yellow when writing data to the
SD card; flashes red when the SD card is full.
6. Power Failure icon: Flashing icon indicates a power
failure has occurred on the system. You may need to
manually restore settings or modes on the system
after a power failure. For details, see “Appendix G:
Power Failure” on page 62.
7. SD card icon: White “SD” icon displays that an SD
card is in the wireless receiver.
NOTE: You cannot record without an SD card.
8. Time Stamp: The current date and time.
9. Status Indicator – The Status indicator message
“Connecting” appears when the receiver is trying to
locate a camera.
NOTE: There may be temporary signal losses for
less than 1 second, due to the connection
retrieval process between the Camera and
Receiver (when switching between channels).
This is a normal operation of the receiver.
Fi

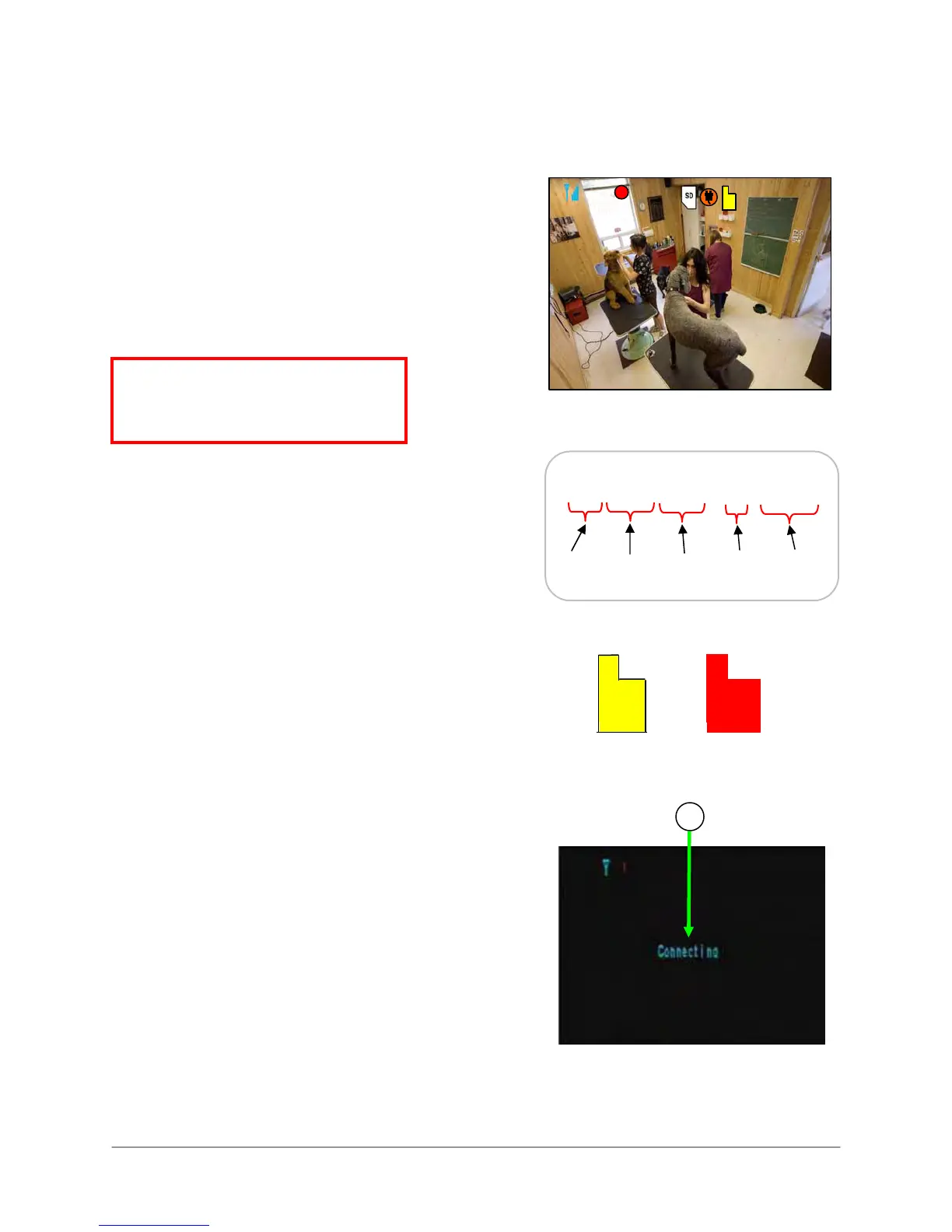

ure 4.1 On-screen display
9
ATTENTION: If signal is low (e.g. 1 or 2
bars) adjust the antennas, or reposition
the cameras or receiver for best
performance.
C
C
a
a
m
m
1
1
R
R
E
E
C
C
160602-1.AVI
160602-2.AVI
Hour
(24-HR)
Minutes Seconds Camera
File
extension
(AVI)
Figure 4.1 Recording Stamp
Fi
ure 4.3 Camera Status Indicator
Figure 4.2 SD card icon: new file and full
2009 07 17
16:32:05
