Connecting the LCD Receiver
The LCD Receiver can be setup for use on a tabletop, or mounted to a wall or underneath a
counter or cupboard.
Table Mounting
To set up the wireless receiver:
1. Attach the Tabletop Stand to the slot on the rear panel and turn counter clockwise until you
hear one “click.” Continue turning counter clockwise to position the LCD receiver as desired.

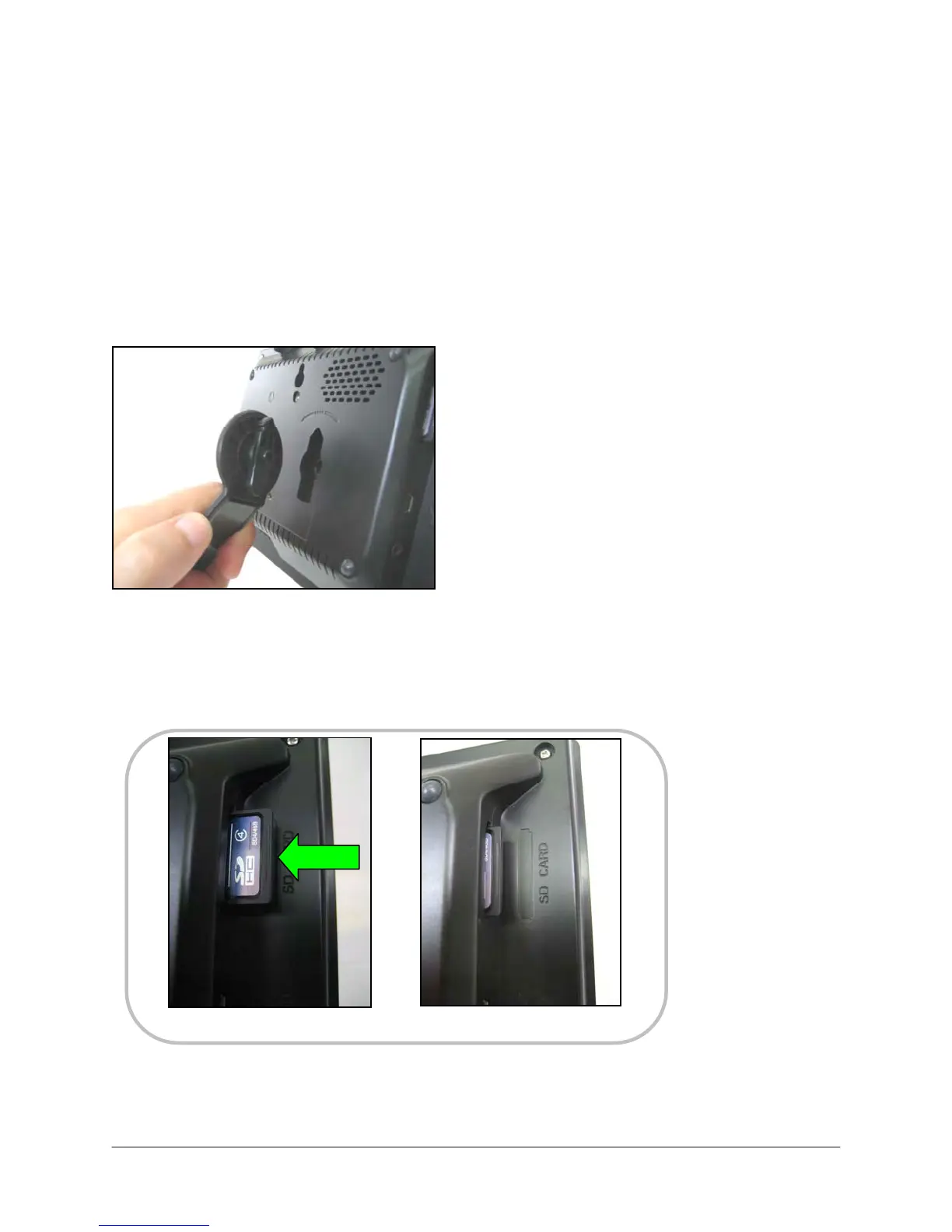

Fi
ure 3.0 Attach the Tableto
Stand and turn counter clockwise.
2. Insert the included SD card into the SD Card slot on the LCD receiver until you hear a
“click.” The card will not be flush when completely inserted.
NOTE: The receiver is compatible with most major brands of SD card up to 16 GB. For recording
times on SD cards, see “Appendix F: Estimated Recording Times on SD Cards” on page 61.
A.
B.
Fi
ure 3.1 Insert the SD card
3. Connect the cable from the power adapter to the 5V DC port on the bottom panel of the
receiver, and then plug in the power adapter to an outlet or surge protector.
14
