Wheel base expansion operation
1. Please pull up to the bottom the wheel base
expansion/bulldozing switch handle.
2. Please use the wheel base
expansion/bulldozing operation and use the
handle to change the wheel base, and then
change the position of the extensi o n plate of
the bulldozing shovel.
Push the handle forward for both the
wheelbase extension and earth pushing.
... Wider wheelbase. (990mm→1280mm)
Pull back the handle for both the wheelbase
extension and earth pushing operation.
... The wheelbase is narrowed.
(1280mm→990mm)
IMPORTANT
When there are obstacles that are not conducive to the expansion
of the wheel base, remove the obstacles or move the machine to
the ground before th e expansion o f the wheel base. Ev en if this is
difficult to d o the wheel b ase expansion, please use th e working
device and shovel to make the track suspended, and then do the
wheel base expansion. In addition, remove dirt from the
expansion site if it is stuck.
During th e wheelbase expansion and contraction operation, use it in the maximum e xtension
(1280mm) and maximum retraction (990mm) states. If t he telescopic operation is stopped
halfway, the telescopic foot will not be fixed an d the rotating frame will shake.
Use by shrinking the wheelbase only when passing through flat, narrow Spaces.
Be su re to extend the wheelbase to the maximum width when driving in other places, carrying out
digging operations, pushing and crushing operations. Otherwise, driving with a narrow wheelbase
may cause the car to roll over.

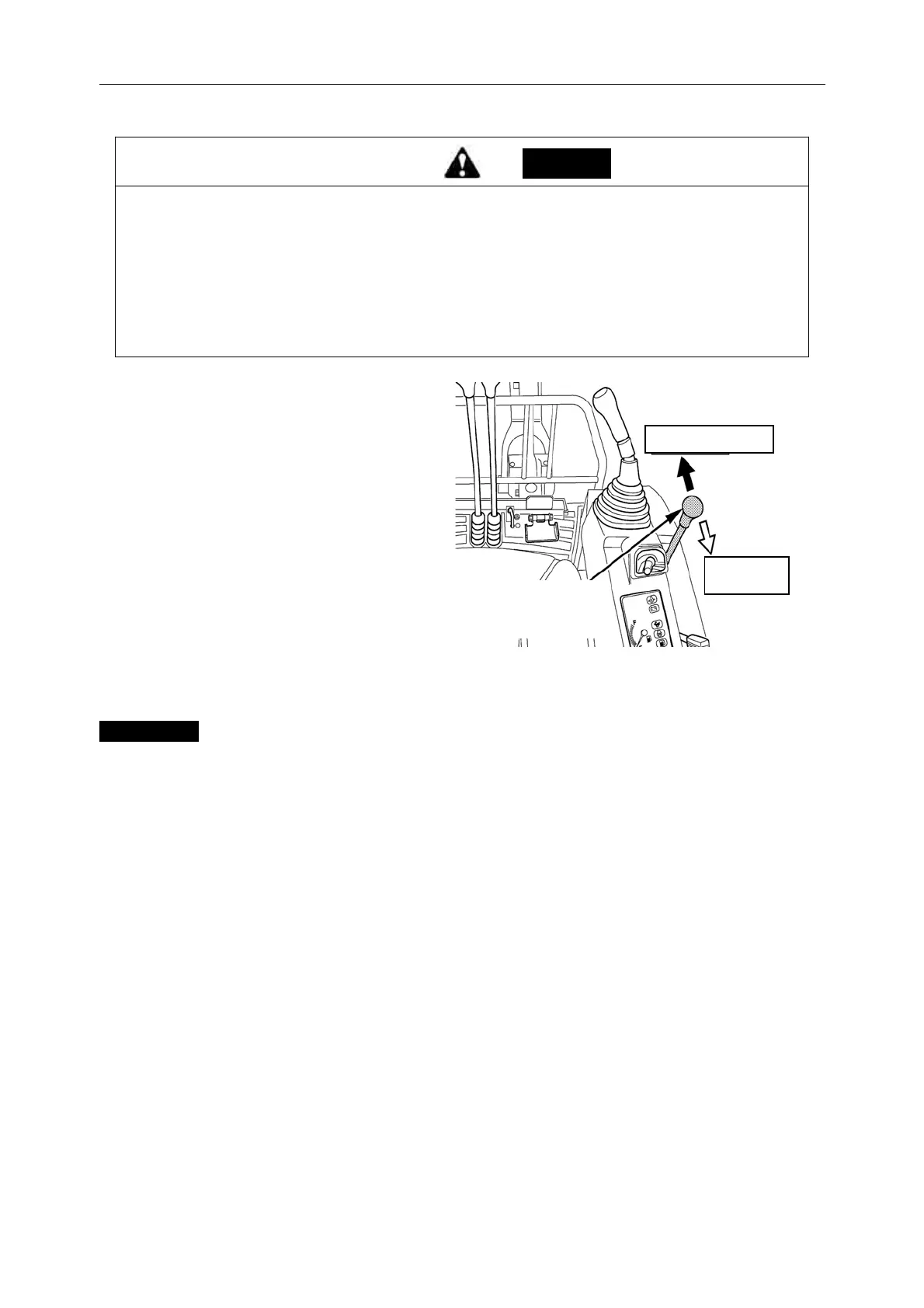

Warning
Handle for wheel base
expansion and drawing
pushing
Wheel base
shrinka
e
Wheel base extension
