Operation control
Operation control 2-
4
Use of safety devices

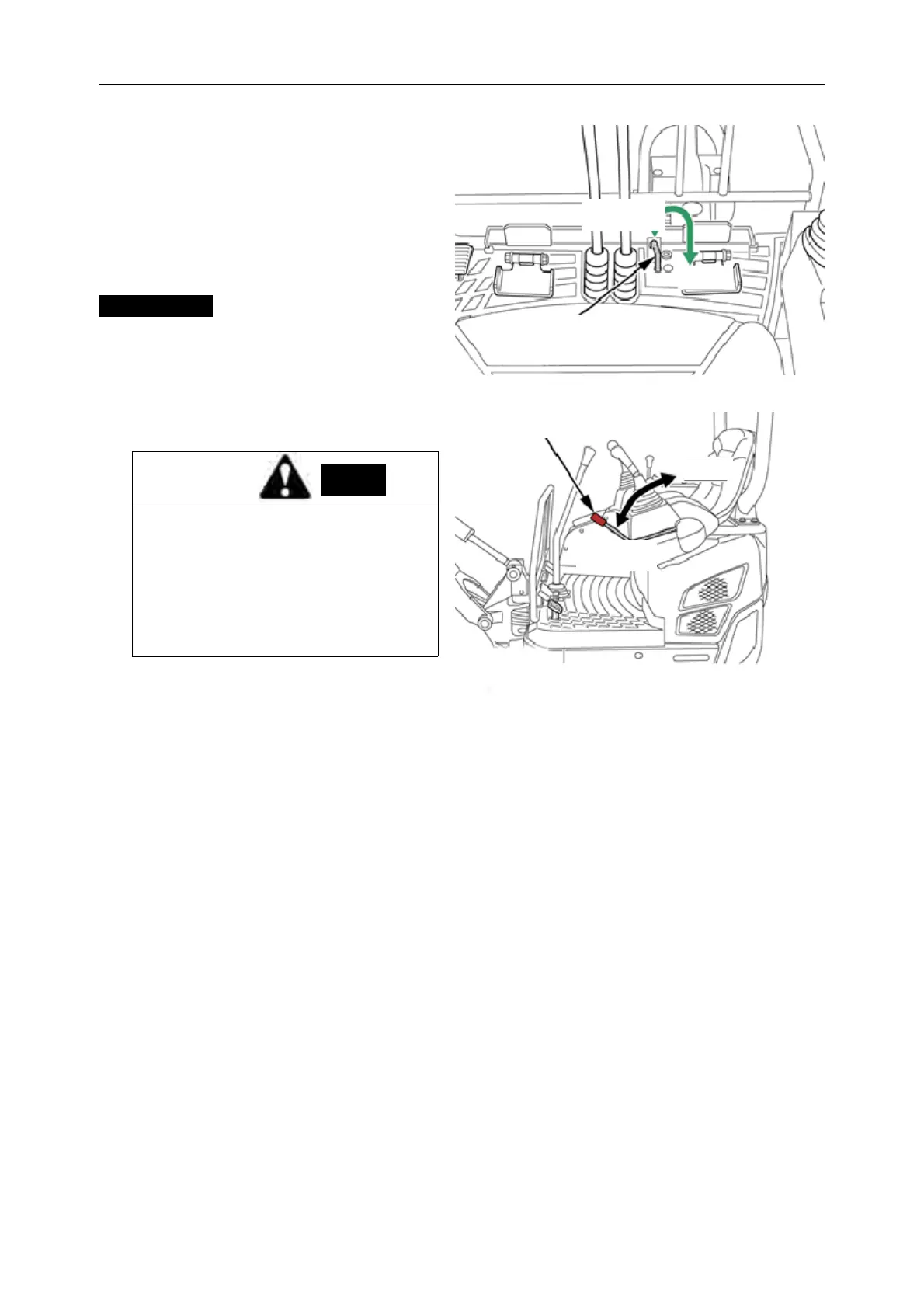

1. Rotary locking pin
This is the part that holds th e rotary frame in place.
If the slewing lock pin is lifted and hung in th e
"release" position, the slewing lock can be
removed.
IMPORTANT
Make sure the turning platform is p a rallel to the
track beam when locking.
2. Handle lock lever
* When stopping or leaving the machine, be
sure to lower the tremors to the ground and
lock the operating handle lock lever.
Otherwise, the working device will fall
dangerously. Please make sure the lock
lever is in the locked position before getting
out of the car, and please pull out the key to
avoid prank.
The lock l ever is used to lock and release the working device, rotary operating handle and driving handle.
The operating device and th e rotary operating handle are not locked, but are in the state of no action even
if the operating handle is operated. At this point, if the o peratio n swing operation pedal and shovel handle,
the corresponding action.
Pull up the lock lever of the operating h andle an d you cannot operate the working device. When getting
on and off, please pull up the lock le ver of operation handle completely. When leaving the machine, lower
the bucket to the ground and close it
Remove
Lock
Handle lock lever
lock
Remove
Rotary locking pin
