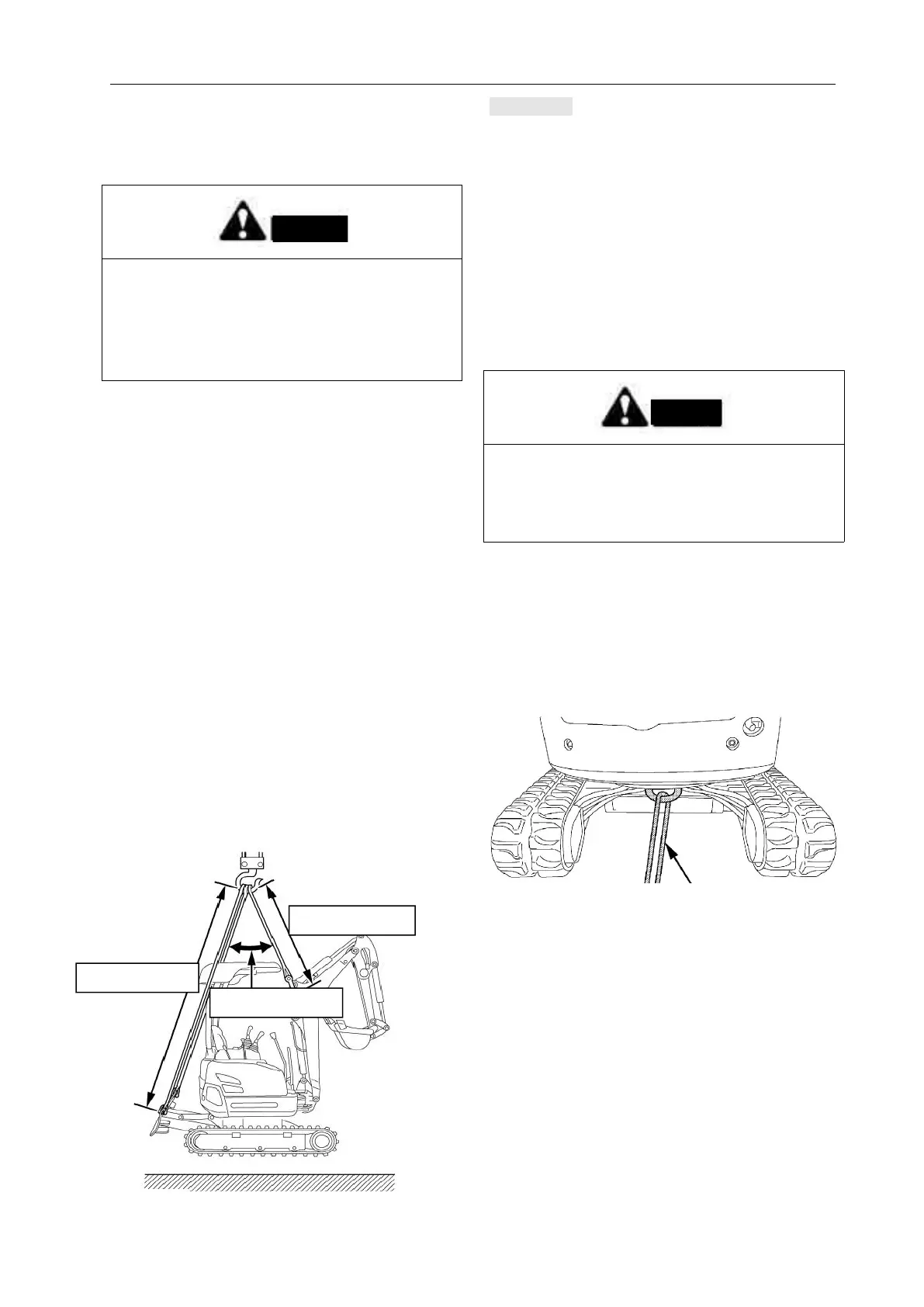

Lifting of airframe
When lifting the airframe, please follow the
following instructions.
1. Rotate the upper rotating body so that the
shoveling position is 180 degrees opposite to the
working device.
2. Lift the shovel to the highest position.
3. Lift the boom to maximize the lift of the bucket
and lever. Then place the handle lock lever in the
"lock" position.
4. The swing operating pedal is placed in a neutral
position without swinging the actuator arm, and
then the pedal cover is covered to stop the
engine.
5. Install the lifting ring on the lifting hole (2 places)
at both ends of the bulldozer and hang the steel
wire rope practically. Please also hang the wire
rope at the moving arm position as shown in the
picture.
6. Make the hoisting Angle of wire rope maintain
about 30 degrees and carry out hoisting. Please
refer to the drawing on the right for the length of
wire rope.
Supplement
Please pay attention to the center of gravity
position when lifting to fully maintain balance.
Do not lift in the state of swing of the moving
arm or rotation of the upper rotating body.
Body traction
In case the machine is stuck in the mud and cannot
get out, please use wire rope or sling to pull the
machine out as shown in the drawing.
Do not carry out lifting operation when there
are operators in the car, which is very
dangerous.
The wire rope used for hoisting must be strong
enough to bear the weight of the machine.
The wire rope and sling should have sufficient
strength.
In addition, please confirm whether the wire
rope or sling has broken or cracked before use.
