ProtoMat E34/E44
Structure and function
V. 1.0 | LPKF Laser & Electronics AG
23/78
3.4 System components
This chapter describes the components of the system. First of all, make yourself
familiar with the individual components of the system before starting the operation.
Before operating the system, also inform yourself about the important software
elements and the different operation modes.
3.4.1 Total view

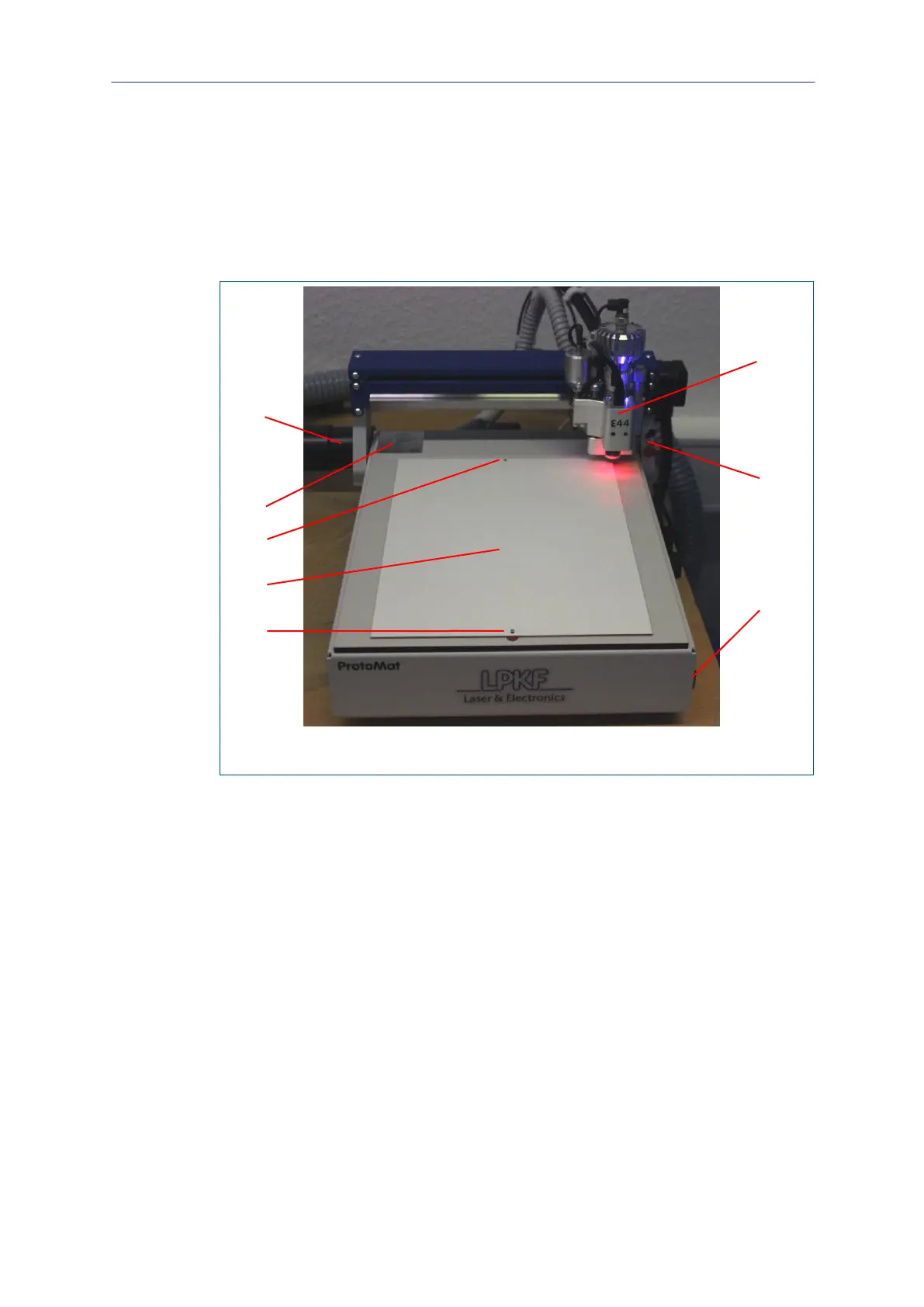

Fig. 2: System overview
1 Processing head (E44 with camera)
2 Screwdriver and insertion tool
3 On/Off switch
4 Dowel pin
5 Processing table
6 Type label
7 Extraction fitting for the extraction system
3.4.2 Processing head
The processing head moves on the x and y axis above the processing table and
processes the PCB with the inserted tool. The ProtoMat E44 additionally has a
camera for recognizing the fiducials. The tools in the collet are exchanged manually by
the operating personnel.
4
3
2
1
6
7
4
5
