5.2.3 Workplace of the operating personnel

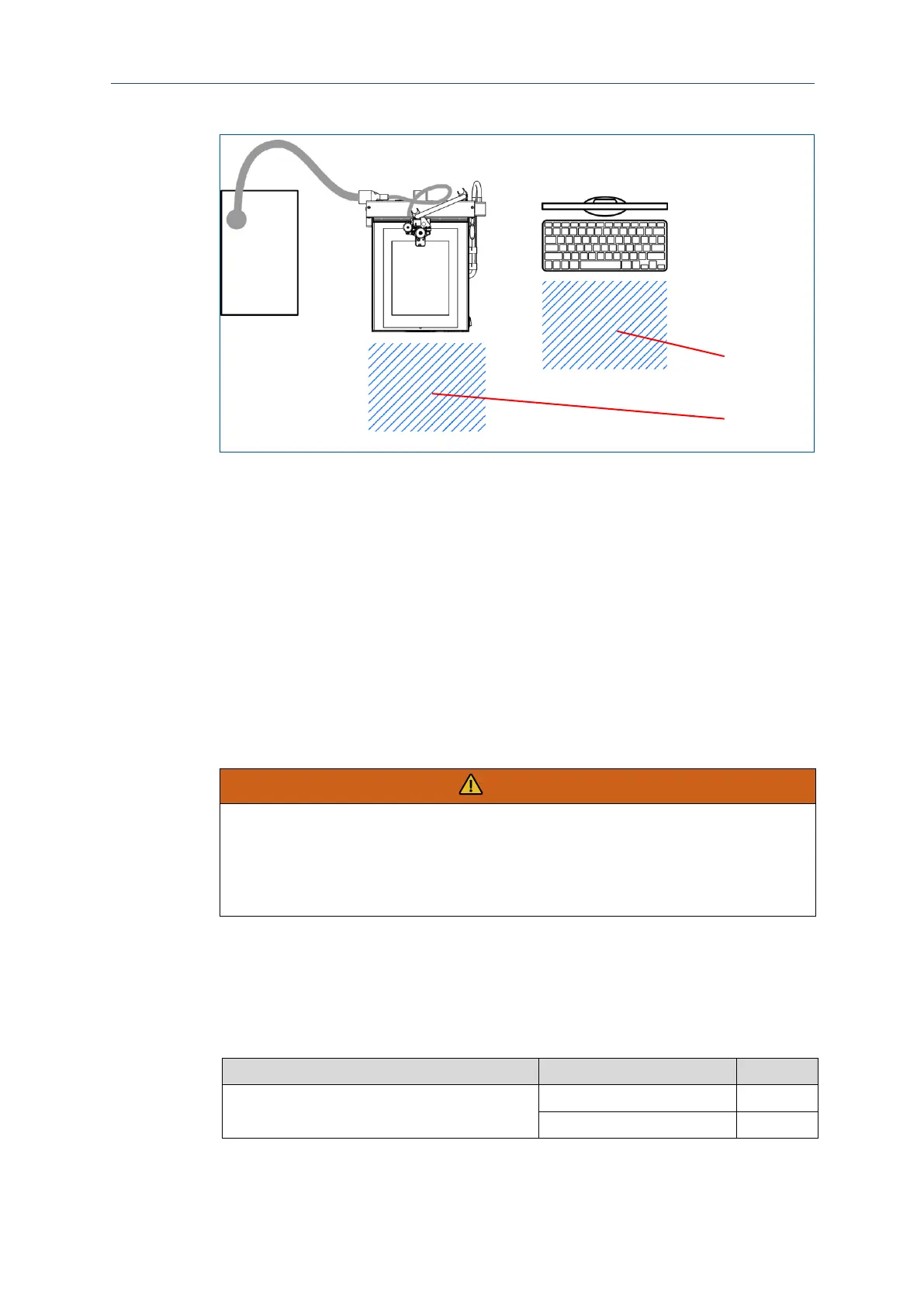

Fig. 10: Workplace of the operating personnel
1 System work station
2 PC work station
The system is designed exclusively for operation by a single person. The system is
operated according to its intended use at the following work stations:
 System work station
The system work station is used for loading and unloading the system.
 PC work station
The PC work station is used for monitoring the production and for controlling the
system.
5.2.4 Floor
The floor has to be leveled and antistatic and has to have a sufficient load-bearing
capacity for the total weight of the system (15 kg).
WARNING
Risk of injury by loss of stability!
Loss of stability due to an improper floor or missing locks can cause uncontrollable
movement or tipping of the system. This can cause serious injuries.
 Ensure that the floor has a sufficient load-bearing capacity for the system and is
even.
5.2.5 Connections provided by the customer
The following connections must be available for first startup:
Electrical data
Data
Value
Unit
Power supply
110/230
V
50/60
Hz
1
2
