ProtoMat E34/E44
Structure and function
V. 1.0 | LPKF Laser & Electronics AG
25/78

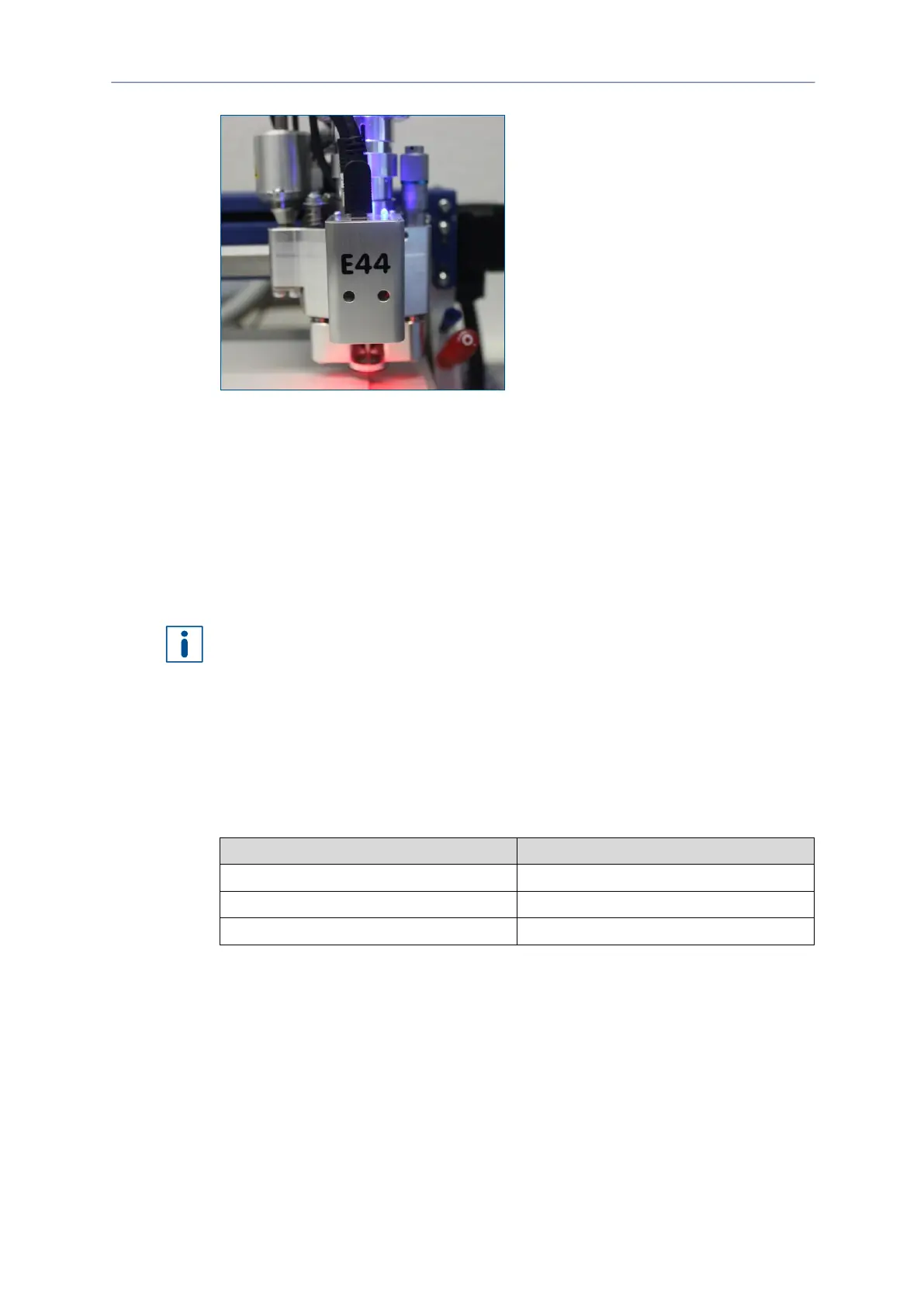

Fig. 5: Vision system
3.5 Optional modules, accessories, extras
The system can be equipped with the following accessories:
 Tools
 Extraction system with automatic On/Off function
 Measuring microscope with 100x magnification, metric scale, and lighting
 Precision ring kit (order code: 116698)
For more information contact the LPKF sales department or your local representative.
Extraction system
LPKF recommends using the JetStream iSeries AX079-25 extraction system. For a
detailed description of the extraction system refer to the manufacturer's manual
delivered with the extraction system.
The extraction system that you use should have the following characteristics:
Characteristics
Data
Extraction air flow
at least 186 m
3
/h
Extraction fitting
Ø 50 mm
Separation efficiency
> 98% (≙ filter class: at least E12)
Table 2: Extraction system
 Use a HEPA filter of class 12.
