5.2.2 Minimum required space
System dimensions
 Width 370 mm
 Depth 450 mm
 Height 300 mm
Minimum required space for operation and maintenance
 Width 1 800 mm
 Depth 1 100 mm
 Height 1 820 mm
The area marked in red in the following figure is the safety zone. It must not be
blocked by objects. The area marked in blue is the workspace for maintenance and
must not be blocked. In front of the system, at least 400 mm of space should be
available for operation and movement.

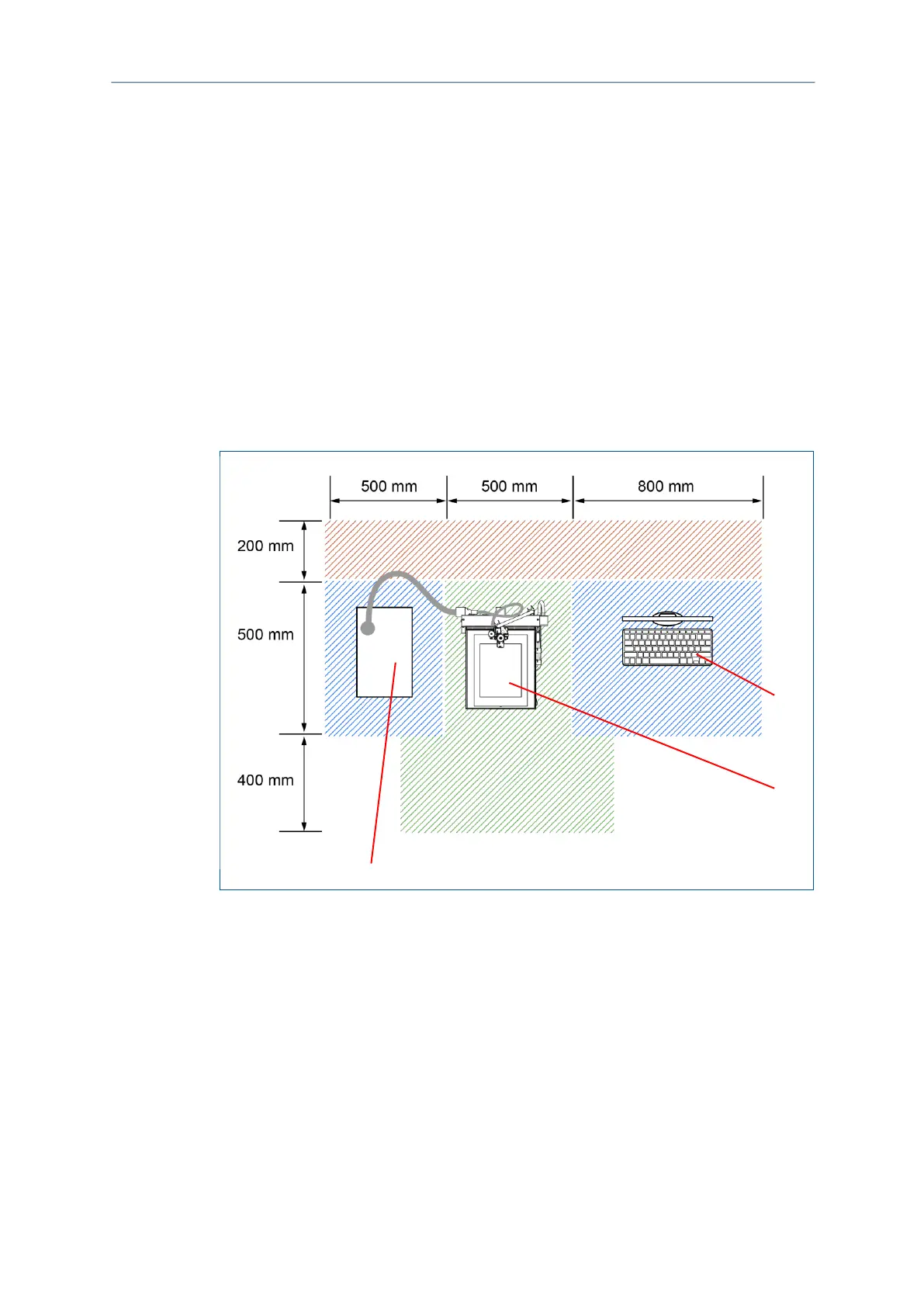

Fig. 9: Minimum required space
1 PC (recommended position for desk and PC)
2 System
3 Extraction system
1
3
2
