(3) Structure of XGL-PMEB
LED
Status
LED description
RUN
On
Normal
Initialize complete and normal operation
Off
Error
Fatal error
I/F
Blink
Normal
Normal in interface status with CPU
Off
Error
Error in interface status with CPU
HS
On
Normal
Normal HS link communication status
Blink
Standby
Stop communication status/downloading Parameter in HS link enable
Off
Error
HS Link service disable status
P2P
On
Normal
Normal P2P communication status
Blink
Standby
Stop communication status/downloading Parameter in P2P enable
Off
Error
P2P disable status
P-RUN
On
Normal
Normal communication
Off
Error
Communication is stopped
STATUS
On
Error
System error
Off
Normal
Normal communication
ERR
On
Error
All slaves are eliminated
Blink
Error
Some slaves are eliminated
Off
Normal
Normal
CFG
On
Error
No network configuration for Profibus-DP Master module
Blink
Standby
Downloading or uploading configuration parameter to Master module
Off
Normal
Network configuration is installed successfully
[Table 2.3.3] LED display of XGL-PMEB

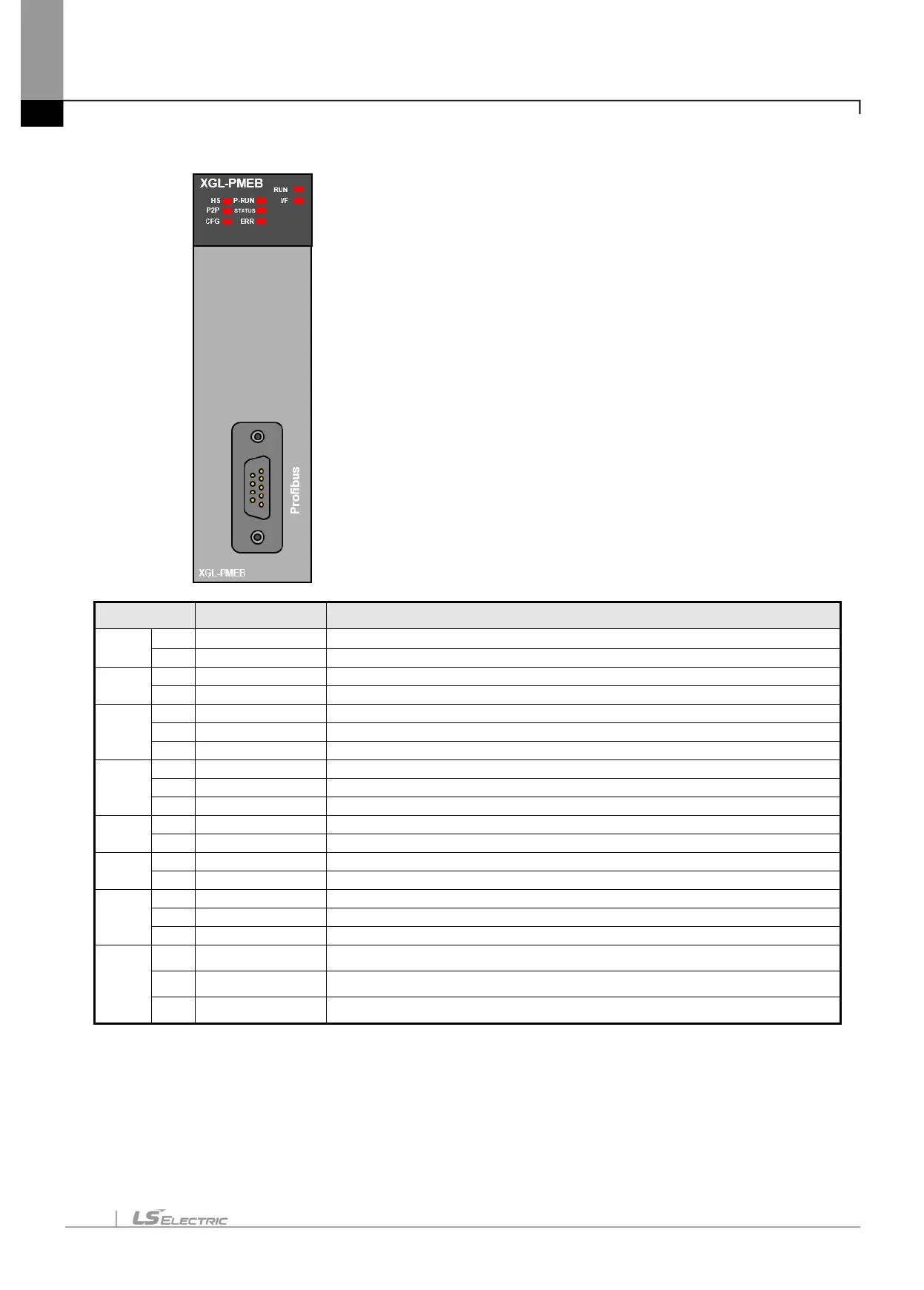

◀ Designation area
