Chapter 6 SyCon Setting
6-20
6.4.4 Start/Stop communication
Communication of configured network is start or stop.
6.4.5 Debug mode
It is display the status of communication per current slave module.
1) Online  Start Communication  Start Debug Mode
(1) Green Line: Communicating with Master
(2) Red Line : Communication is disable with Master
6.4.6 Diagnostic functions

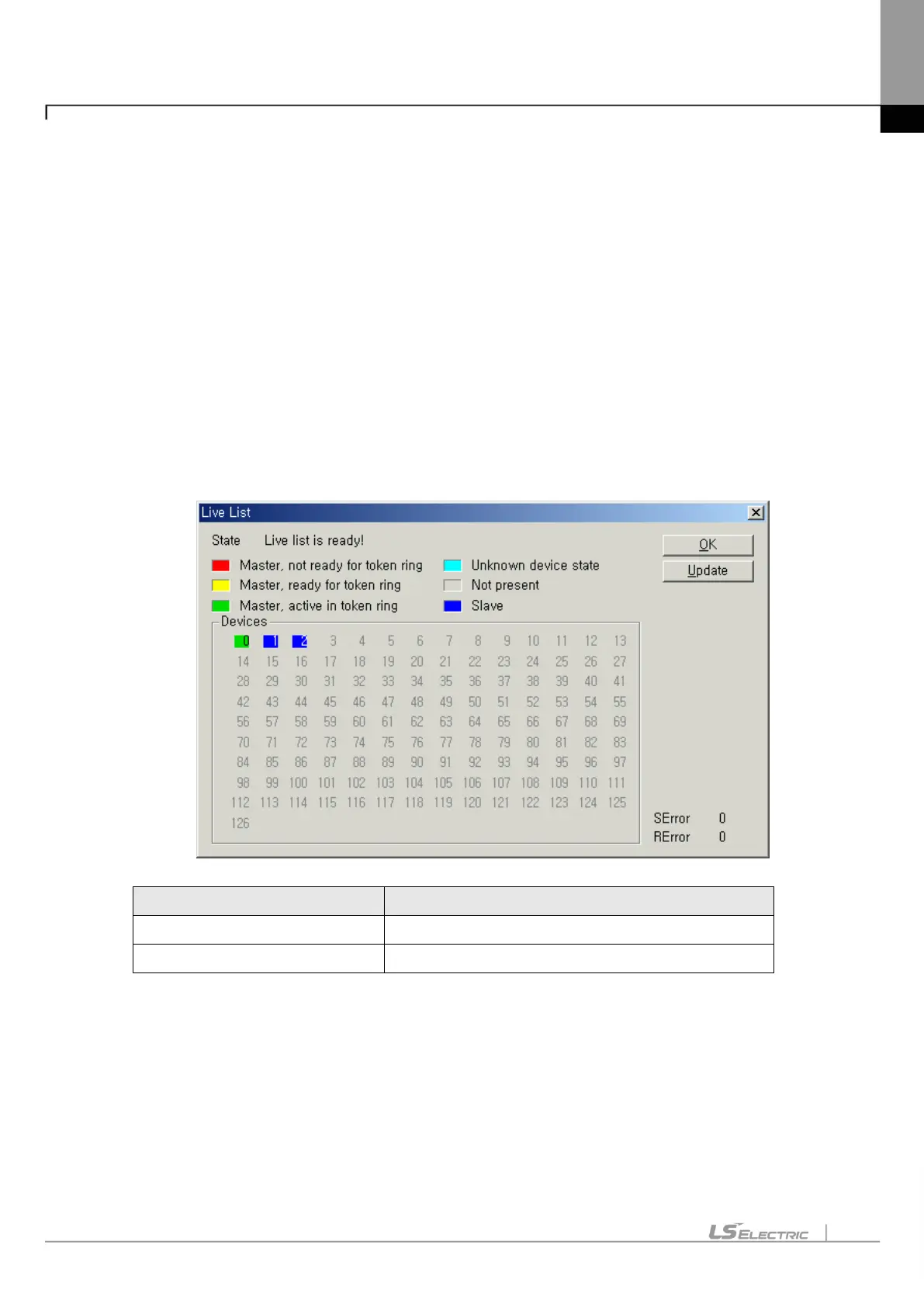

1) Live List
It is display the station number of Master connected the network and station number of Slave.
Color of number
Description
Green Number
Display of connected Master station number
Blue Number
Display of connected Slave station number
