Chapter 5 Communication Program
5-2
5.2 XG5000 pragram
In order to use Pnet I/F module, set High-speed link parameters (after SyCon/N Configurator Configuration is
uploaded) and then download the specified parameters onto CPU for application, which is available through
the XG5000.
5.2.1 Setting PLC type
To connect the XG5000 to the PLC, you have to set the PLC type. Create the new project by selecting
[File]  [New File]. On the new project menu, input the project name, project type and PLC type as shown
below

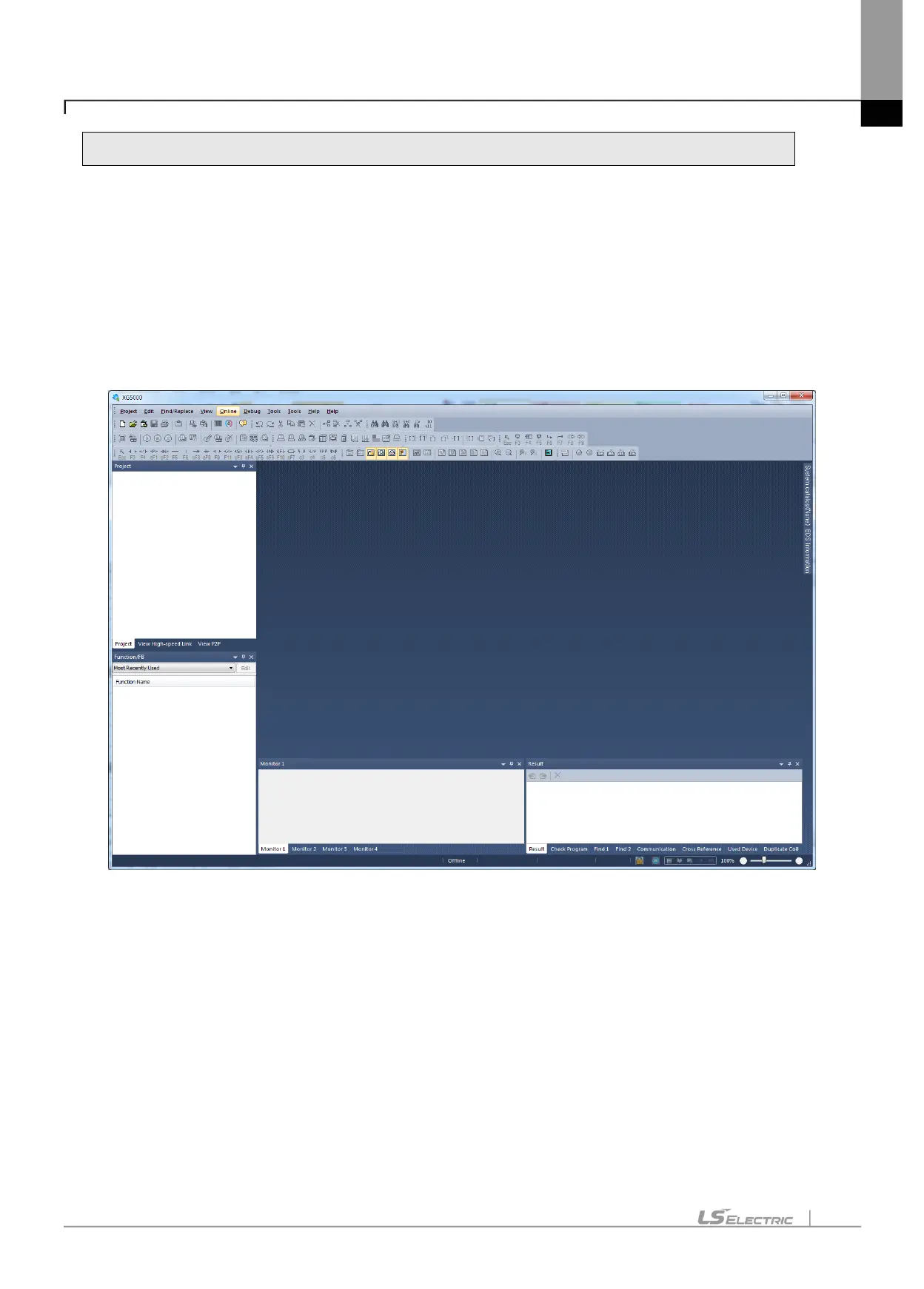

[Fig. 5.2.1] is initial screen of the XG5000
[Figure 5.2.1] initial screen of the XG5000
