Chapter 7 N Configurator Setting
7-2
7.2.1 System requirements
486 PC or higher
More than 16 Mbytes of RAM
Windows 95/98/ME/NT/2000/XP
More than 80 Mbytes of hard disk, CD ROM drive
Resolution: 1280 x 1024 pixel recommended
Windows 95: Service Pack 1 or higher
Windows NT: Service Pack 3 or higher
7.2.2 How to install Program
Please see the software manual of N Configurator for more details. We will discuss the
composition after the installation of the software.
(1) Directory after installation
After the installation, generally, “C:\Program Files\xg5000\nCongirurator” directory is
composed as follows.

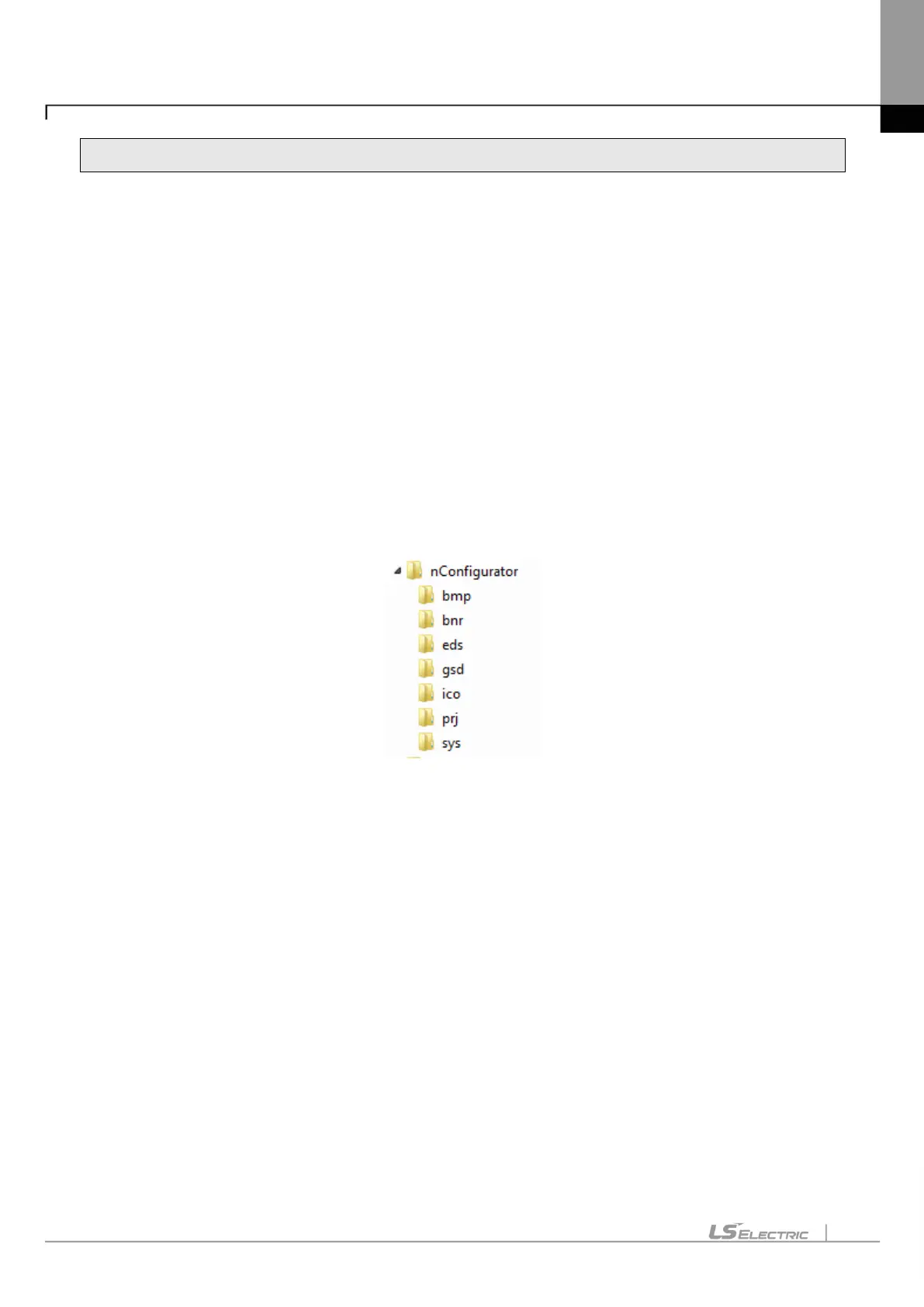

[Figure 7.2.1] The structure of installation directory
- N Configurator: Root directory of configuration tool for PROFIBUS DP Master
- bmp: Bitmap depository used by the GSD file
- bnr: Network Configuration binary image file depository
- gsd: GSD file depository provided by the manufacturer of PROFIBUS DP module
- prj: Network Configuration Project depository
- sys: Application setting directory used by the tool
(2) Caution after installation
After the installation is completed, users should be aware of following things. The default
GSD files provided are our company’s smart I/O and inverter, so other companies’
products or new products are not updated. Therefore, if there is a new GSD file, then copy
it to the GSD directory to use, and copy bitmap image files used by the GSD to the bmp
directory. Start again the N Configurator program to apply the copied GSD.
