Chapter 7 N Configurator Setting
7-13
7.4.2 Slave composition
The composition of slave can be done after the master is composed.
The method of composition for slave is same as the master. Select the slave from the device
list as shown in the figure below.

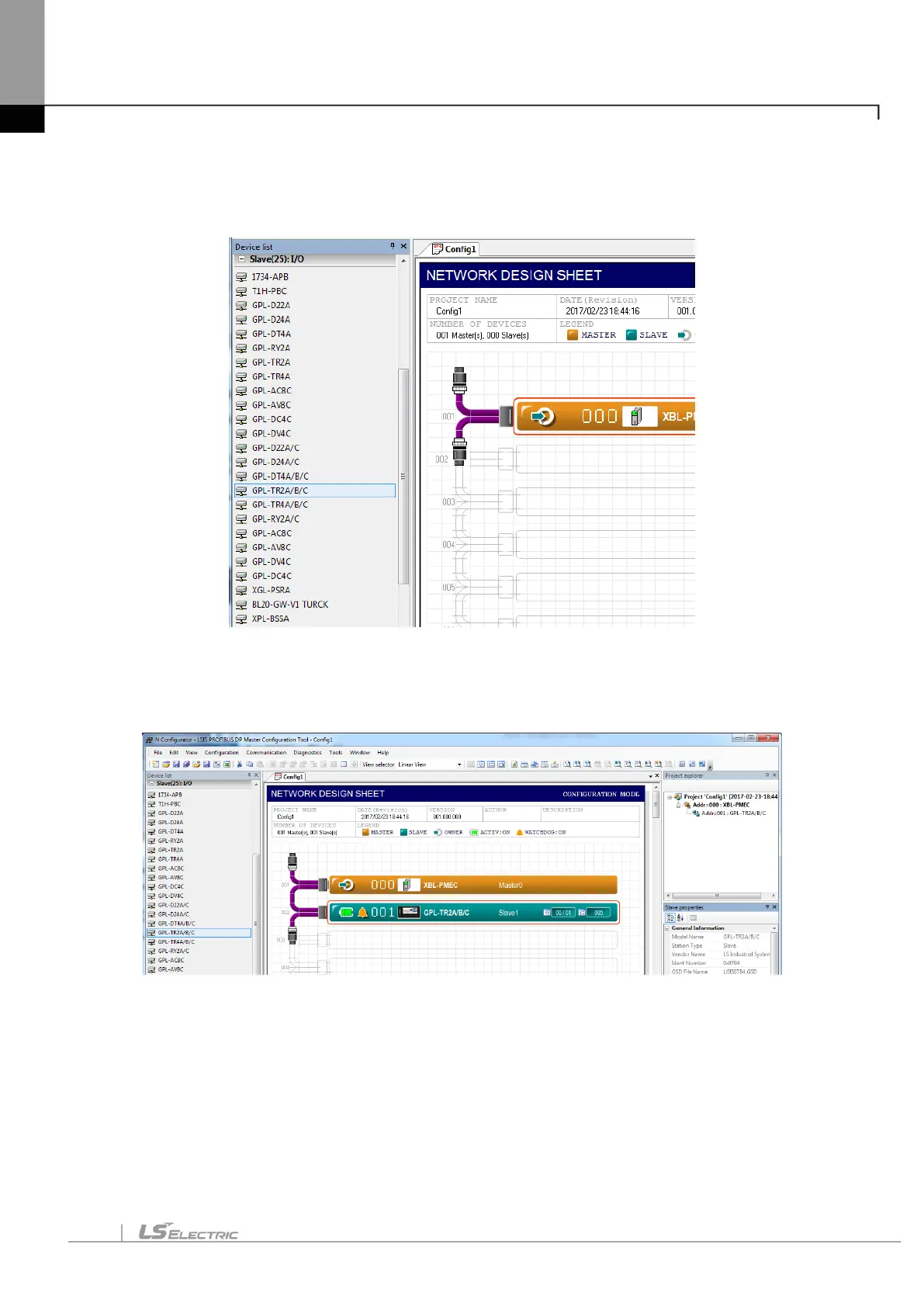

[Figure 7.4.4] Select slave from the device list
Simply drag & drop the selected slave on the topology to complete the composition of slave.
(See Figure 7.4.5, at this time, it is confirmed that the slave is subordinated to the relevant
master through the project explorer.)
[Figure 7.4.5] Compose slave to master
