LS XGT Series User Manual

Chapter 7 N Configurator Setting
7-18
(2) Network Configuration download
If you already composed network in the topology, select “Download Image” item from the
“Communication” menu to begin downloading. The figure below shows downloading status.
The status bar runs progress bar, and the output window shows the progress rate.

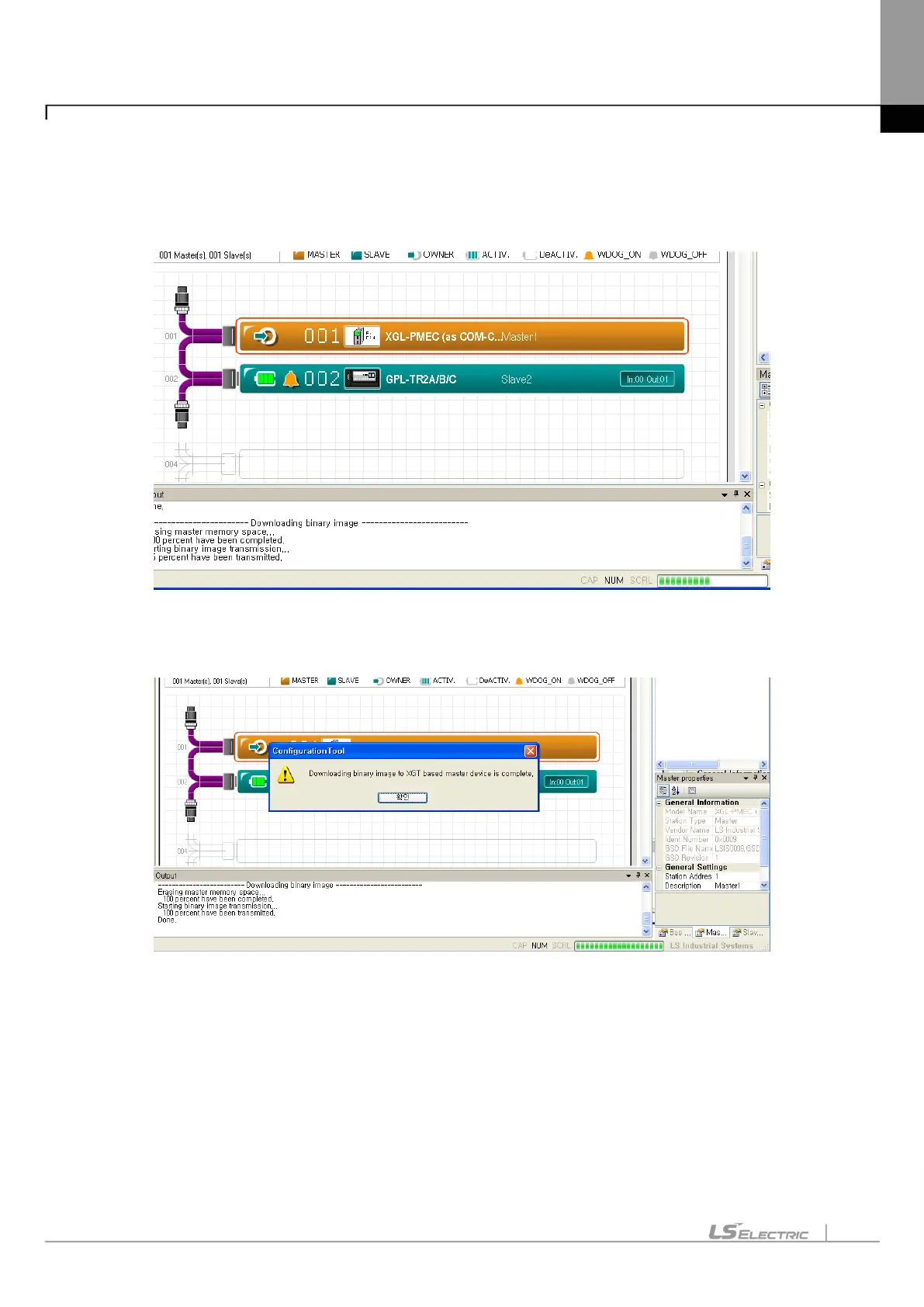

[Figure 7.5.3] Download status
If downloading is completed, the progress bar is full, and “Done” message will be
displayed on the output window.
[Figure 7.5.4] Downloading completed
