Chapter 3. Installation
3.1 Installation of S100 Extension I/O
Warning) Connect a communication network after the power supply of the S100 inverter must be off.
If the power supply is plugged when Extension I/O is removed, the S100 inverter will be damaged entirely.
Take off Extension I/O from the product after the power supply is totally discharged.
In case of
LSLV0004S100-2EXNNS, LSLV0008S100-2EXNNS, LSLV0004S100-4EXFNS, LSLV0008S100-4EXFNS, it is
impossible to do wiring of main source after assembly of Extension I/O. Please assemble Extension I/O after
wiring of main source. If you need to using built-in I/O terminals, please do wiring of the terminals before
assembly of extension I/O

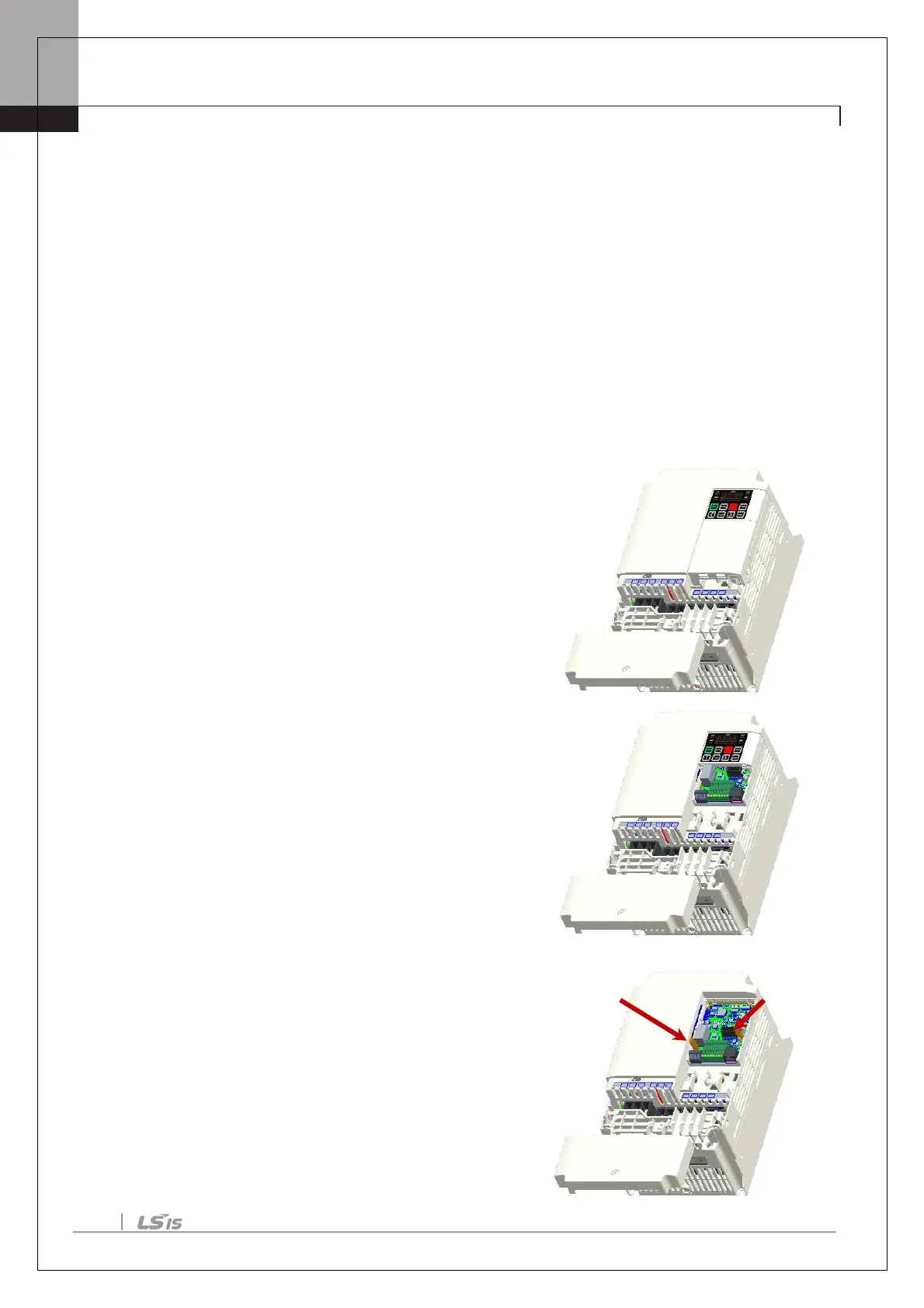

■ Take off the power supply cover
and the I/O cover((1), (2)) from
a dedicated S100 inverter
for communication.
■ Take off the keypad (3).
■ Loosen a screw from
the I/O board and
fasten the prepared
brass bar (M3xL23) to (4),
and (M3xL17.3) to (5).
(3)
(4)
(5)
