Lucent Technologies Lineage

2000 ECS/GPS Battery Plant J85500G-2

4 - 22 Installation Issue 6 May 1999

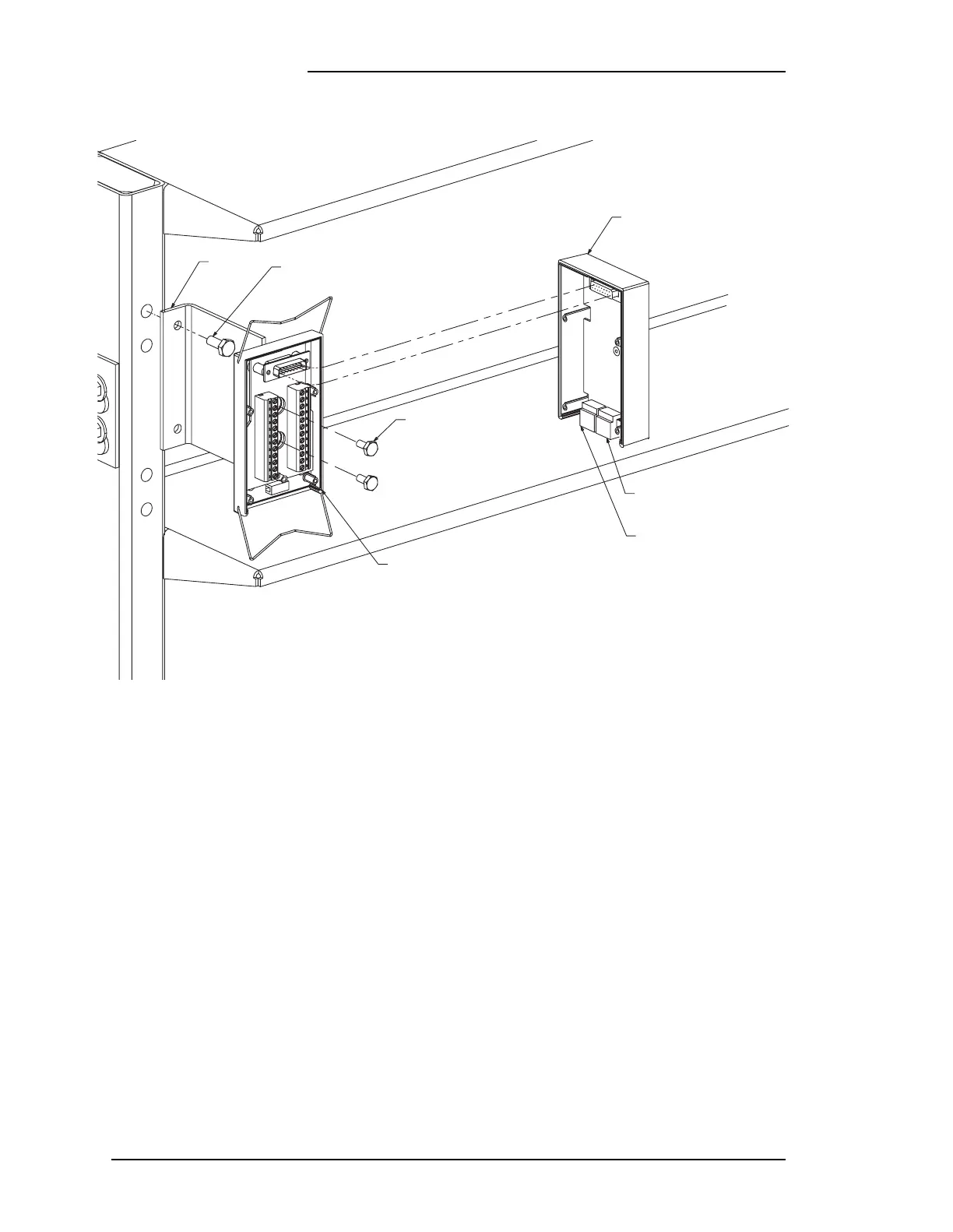

Figure 4-10: 216A Battery Thermal Compensation Control Unit installed on frame

801724857

SCR, 1/4-20 x 5/8

847312592

Bracket

901252726

Screw, 10-32 x 7/16

E/W Lock Washer

(2 Places)

847589900

Terminal Board Assy

(See Fig. 4-10)

107617516

216A Control Unit

(See Fig. 4-6)

P512

To Next 216A or Terminator

Plug if Last Module

P511

Mates with P510 on BID1 CP
