Lucent Technologies Lineage
®
2000 ECS/GPS Battery Plant J85500G-2
3 - 40 Engineering, Planning and Ordering Issue 6 May 1999

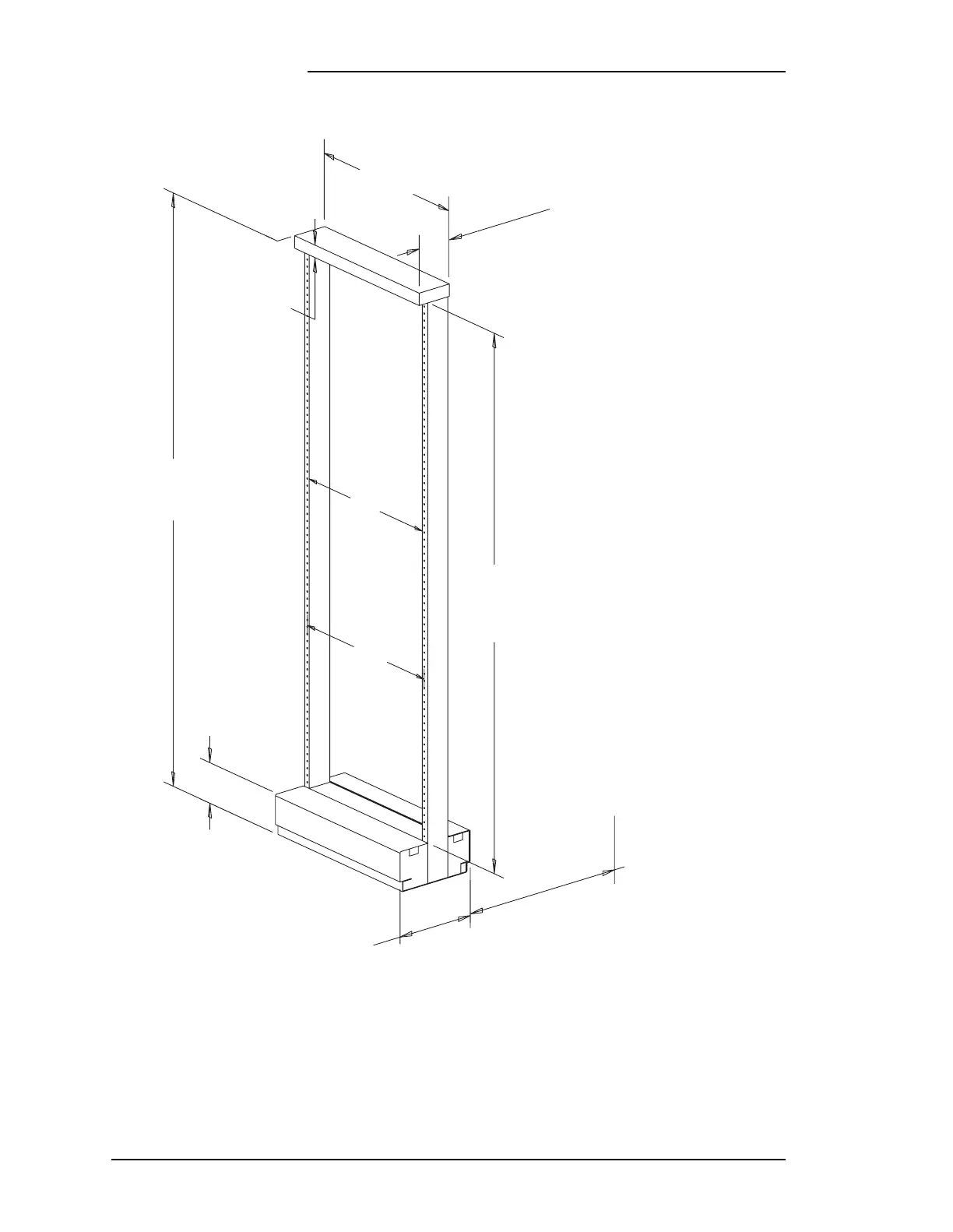

Figure 3-2: Uniframe Rack Construction of Initial and Supplementary Bay
26 INCHES
OVERALL WIDTH
84 INCHES
OVERALL
HEIGHT
23.50
INSIDE
24.32
MOUNTING
CENTERS
6 INCHES
76 INCHES
AVAILABLE
MOUNTING
SPACE
2 INCHES
5 INCH FRAME DEPTH
(CENTERED IN 12 INCH BASE)
12.00 INCH
BASE DEPTH
6.00 INCHES TO
END OF CABLE BRACKETS,
REAR COVER
