Lucent Technologies Lineage
®
2000 ECS/GPS Battery Plant J85500G-2
Issue 6 May 1999 Product Description 2 - 5
additional dc output or distribution capability. The plant is a
modular front-access design for ease of installation, growth and
maintenance. This power system is ideal for use in confined
areas and allows efficient use of valuable floor space.
Initial Bay The initial bay will accommodate up to twelve Lineage
®
2000
SR Series -48 volt, 50 ampere rectifiers, an ECS or Galaxy
controller, distribution panels accepting breakers and/or fuses
from 5-600 amperes and 1-200 amperes, respectively, a low
voltage battery disconnect/reconnect feature, optional thermal
slope/step compensation feature and one capacitor charge panel
for the circuit breakers. When the plant is equipped with a
Galaxy Controller, the initial bay will accommodate up to nine
rectifiers along with the other components listed above. Stile
strips and end covers are optional appearance kits.
Supplementary
Bays
If additional dc output or additional dc distribution panels are
required, a supplementary bay is available which can house up
to six rectifiers and has 36 inches of space for distribution

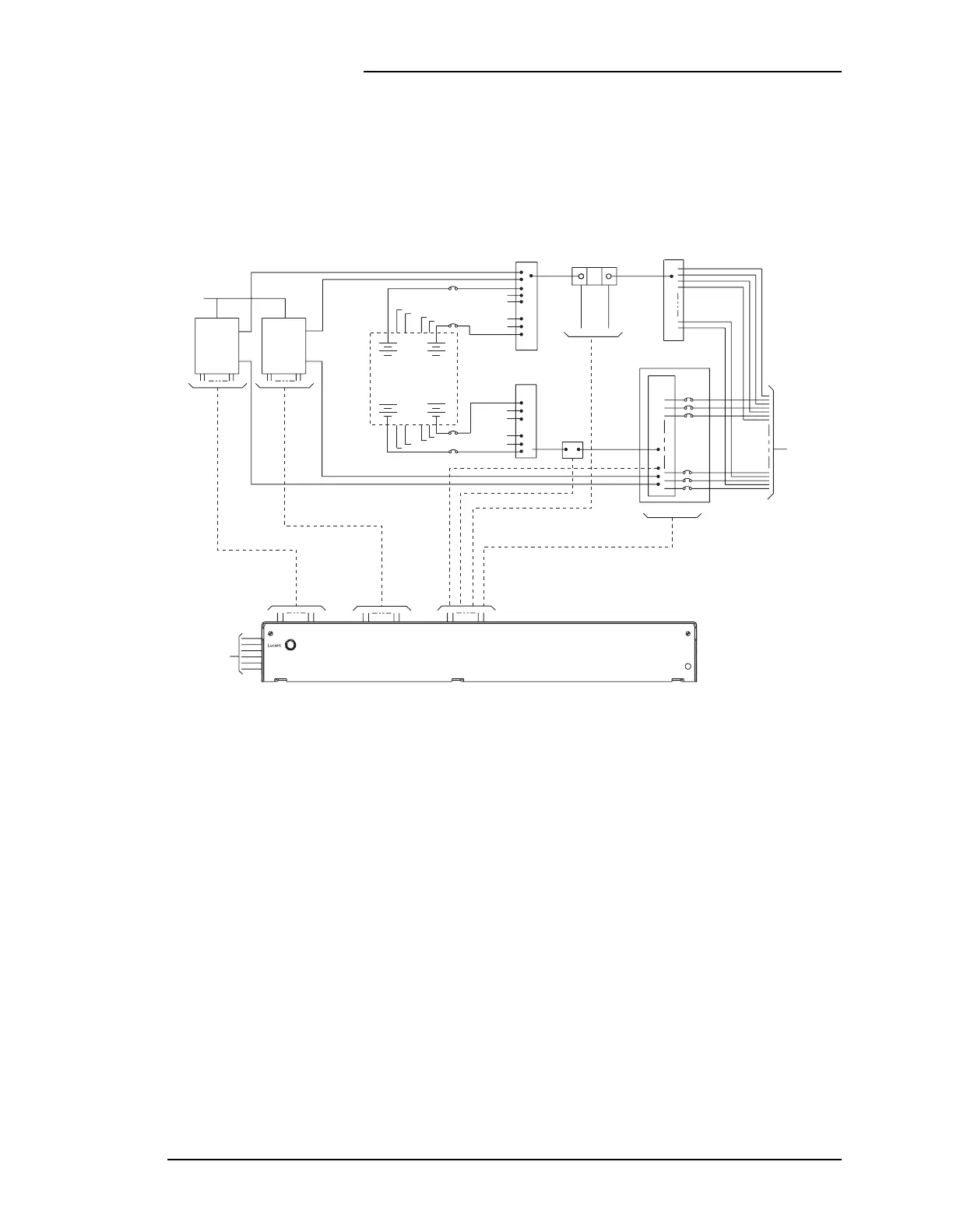

Figure 2-2: ECS/GPS Battery Plant block diagram
A/C
Rectifier
1to6
Rectifier
7to12
Battery
String
Battery
String
Battery
Bus
LVD
Charge
Bus
Alarms
FOR ESD WRIST STRAP
To Office
Loads
Distribution
Discharge
Return Bus
Charge Return
Bus
600A
Shunt
TO OFFICE
ALARMS
ECS or GALAXY CONTROLLER
To Next Page
