Lucent Technologies Lineage
®
2000 ECS/GPS Battery Plant J85500G-2
Issue 6 May 1999 Product Description 2 - 19

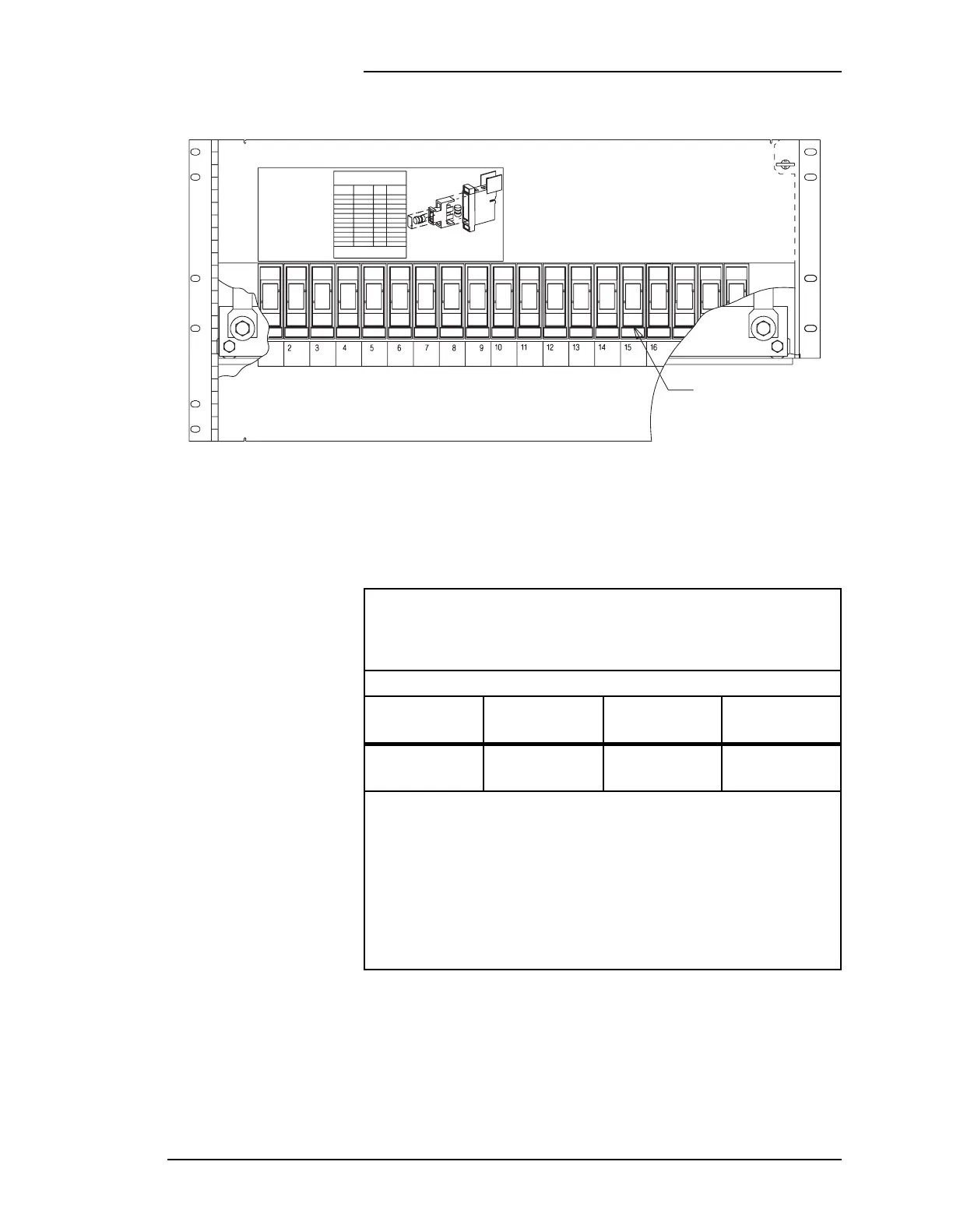

Figure 2-11: List 36 (3 to 60A) fuse panel
3-60A
Fuse Block
CAUTION
LOAD FUSES
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE AND SHOCK
REPLACE ONLY WITH SAME TYPE
AND RATINGS OF FUSE
406700567
406700583
406700591
406700609
406700617
406700625
406700633
406700641
406700658
406700674
406700682
RECOMMENDED ALARM FUSES ARE
GMT 1/2 AMP (401231501)
FUSE LOCATIONS
COMCODE
100
101
102
103
104
105
106
107
108
109
110
WP-92461
LIST
AMP
RATING
COLOR
BANDS
3
5
6
10
15
20
25
30
40
50
60
Blue/Brown
Blue/Gray
Blue/Purple
Blue/Red
Blue/Black
Blue/White
Blue/Orange
Blue/Blue
Blue/Yellow
White/White
Blue/Pink
Table 2-E: List 30 Fuse Panel
The List 30 panel contains 3 individual fuse blocks, each of which can
accommodate up to 8 load fuses for a total of up to 24 per panel. Refer
below for fuse specifications. Load fuses are ordered on a job basis,
separately from the battery plant order.
Load Fuse
Size
Type
Range (Amps)
Order Information
for a Fuse Panel
9/32x1-1/4 inch
74
KS-19870
1.25-20
2-30
J85500G-2
L-30
The following restrictions apply:
The maximum fusing for each fuse block (containing 8 load fuse positions)
in general must not exceed 96 amperes (288 amperes maximum per panel).*
If fuses larger than 15 amps are used, leave any adjacent fuse block
positions unoccupied.
Where possible, distribute the power evenly throughout a given fuse block.
*Refer to SD-82649-02, Note 310 for detailed guidelines for maximum
fusing or talk to your account representative.
