Lucent Technologies Lineage 2000 - Figure 3-4: Cabling Arrangement

Lucent Technologies Lineage
®
2000 ECS/GPS Battery Plant J85500G-2
3 - 42 Engineering, Planning and Ordering Issue 6 May 1999

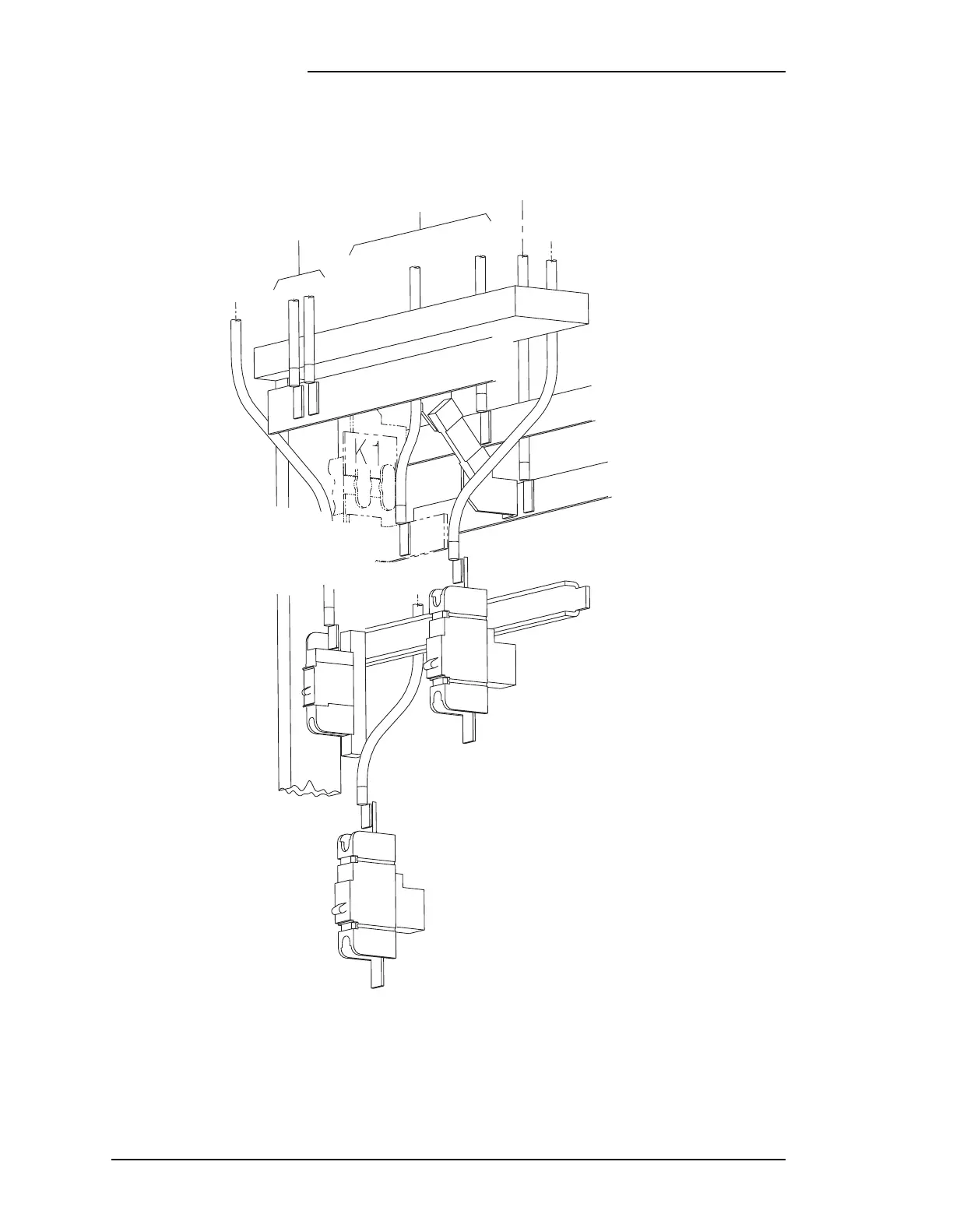

Figure 3-4: Cabling Arrangement
LOAD RETURN
LOAD
BATTERY
BATTERY RETURN
LOAD
DISCHARGE RETURN
CHARGE RETURN
LOAD
BATTERY BUS
(OPTIONAL)
WITH
K1
NO
K1
