Lucent Technologies Lineage 2000 - Figure 3-3: Bay Dimensions and Clearances

Lucent Technologies Lineage
®
2000 ECS/GPS Battery Plant J85500G-2
Issue 6 May 1999 Engineering, Planning and Ordering 3 - 41

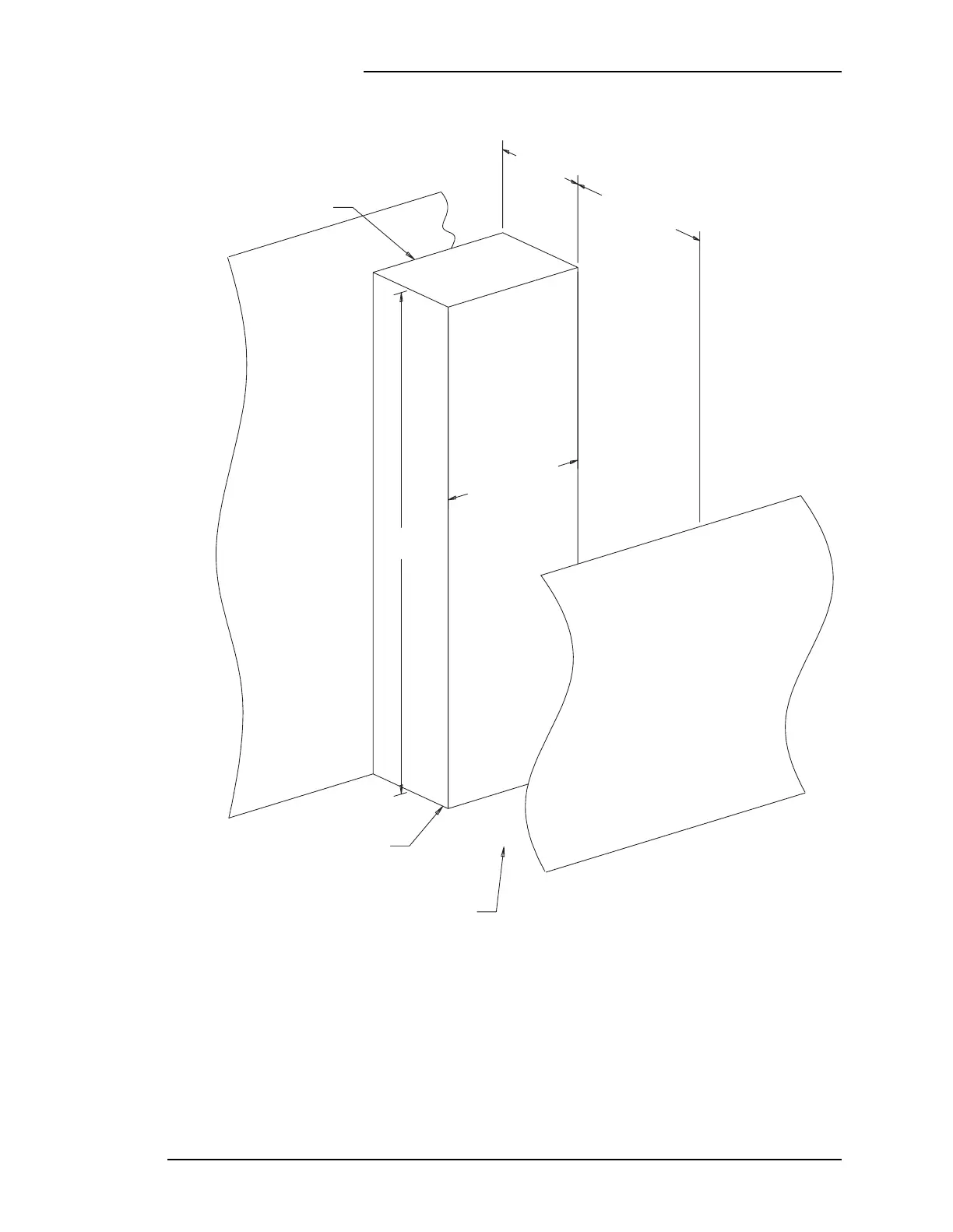

Figure 3-3: Bay Dimensions and Clearances
NO WALL CLEARANCE
REQUIRED FOR ECS
CONTROLLER; AISLE
SPACE REQUIRED FOR
GALAXY CONTROLLER
INITIAL BAY
OR
SUPPLEMENTARY
FRONT AISLE
18.5 INCHES
DEPTH
30 INCHES FRONT
AISLE CLEARANCE
84 INCHES
HEIGHT
26 INCHES
WIDTH
(END COVER
INCREASES WIDTH
BY 1 INCH)
