Lucent Technologies Lineage
®
2000 ECS/GPS Battery Plant J85500G-2
Issue 6 May 1999 Installation 4 - 5
3/4 190
1 290
1-1/4 580
1-1/2 1010
Table 4-B: Torque For All Non-Electrical Connections (e.g.
Floor Anchors)
Cap Screw Diameter Torque (Ft-Lb) UNRC

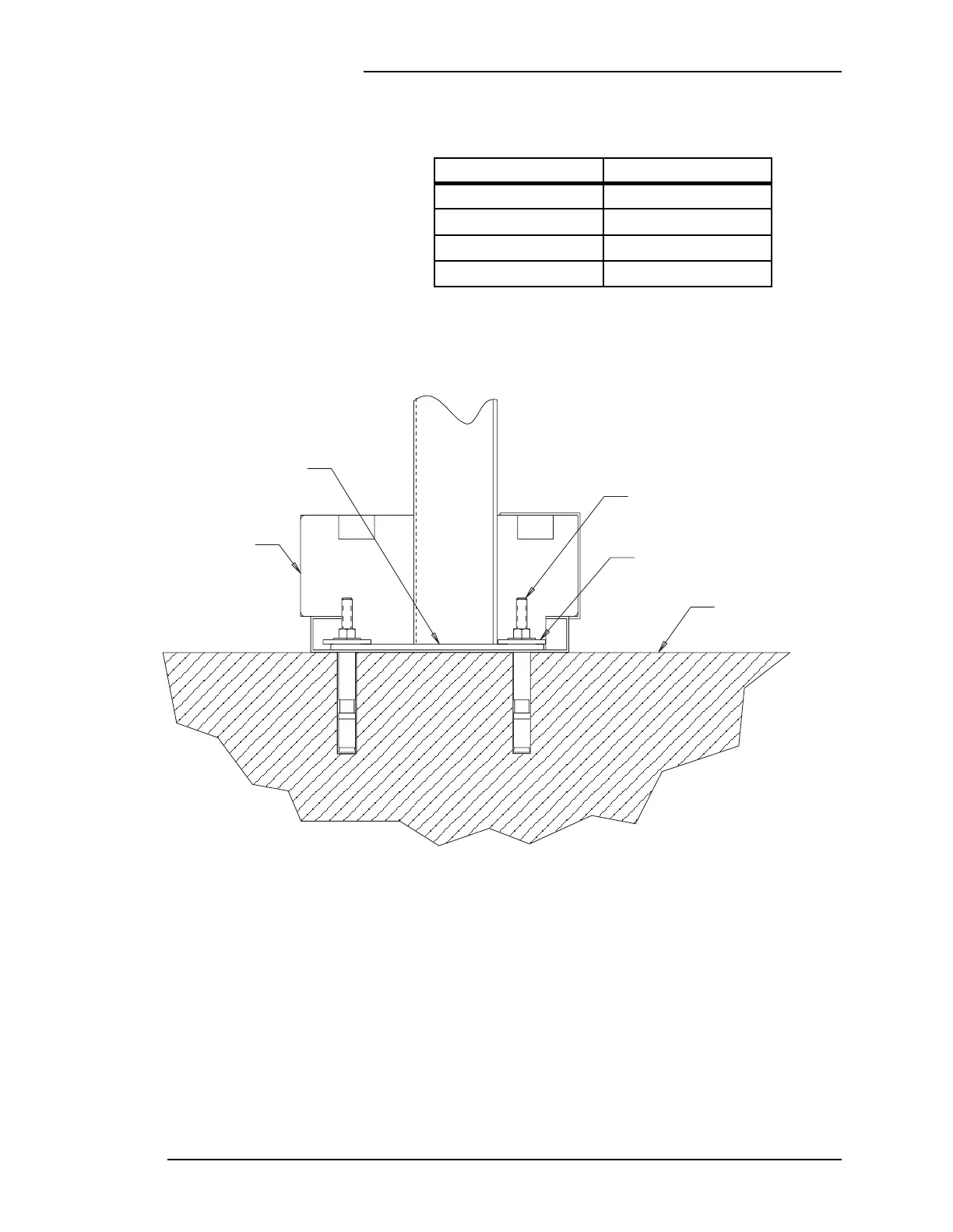

Figure 4-1: Typical floor mounting detail
HOLD DOWN PLATE
(2 PLACES)
FRAMEWORK
BASE
FLOOR ANCHOR BOLT
(HILTI) (4 PLACES)
HOLD DOWN WASHER
(4PLACES)
FLOOR COVERING
