Lucent Technologies MERLIN LEGEND Release 6.1 Maintenance And Troubleshooting

MERLIN LEGEND Communications System Release 6.1
Maintenance and Troubleshooting
555-661-140
Issue 1
August 1998
Page 4-66
Module Problems

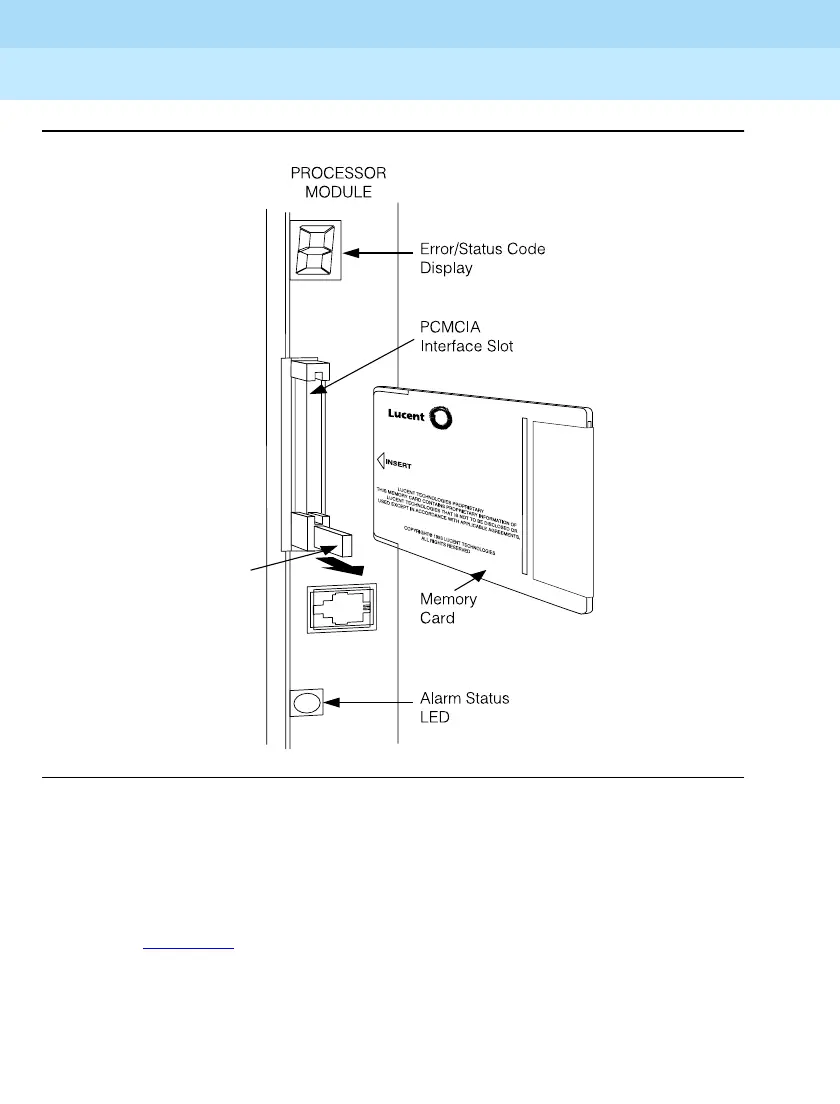

Figure 4-7. Inserting the Upgrade Memory Card
To upgrade or reinstall circuit module firmware, follow the steps below.
!Insert an upgrade memory card containing the circuit module
firmware into the PCMCIA interface slot on the processor board.
See Figure 4-7
.
MERLIN Legend
®
Translation Card
MFR 00DR 00
123456789COM Code
Push in
to remove
Memory
Card
