Checking System and Slot Status
System Status
The power supply, processor, 400EM module, and 100D module are the only
modules that have LEDs. The System Status screen displays simulated LEDs
for the processor and for each of these modules but not for the power supply.
The System Status procedure allows you to check simulated LEDs for the
processor and other modules. This is explained in detail in ‘‘Interpreting the
System Status Screen’’ on page 4-130.
Summary
To check System Status, follow the steps below.

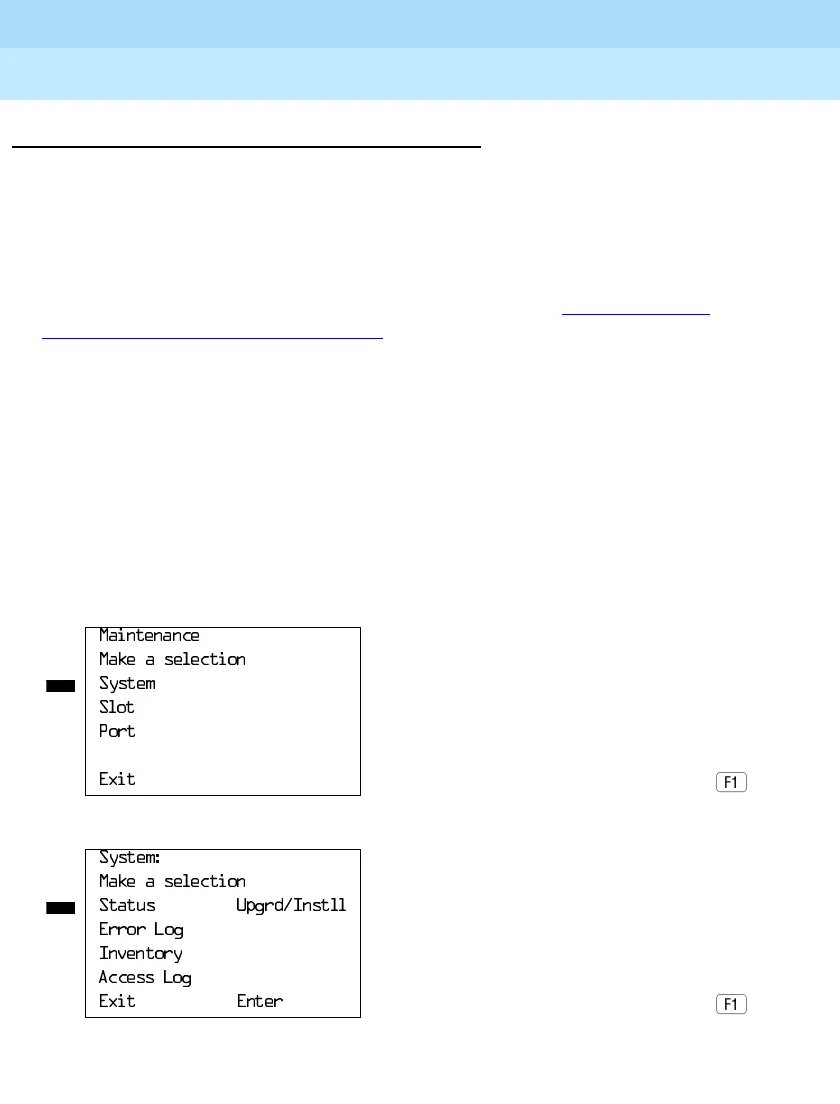

Console Display/Instructions Additional Information PC
!From the Maintenance menu, select the System option.
!Select Status.
Console Procedure Menu:
0DLQWHQDQFH→6\VWHP→6W DWXV
PC Procedure

→

→

0DLQWHQDQFH
0DNHDVHOHFWLRQ
6\VWHP
6ORW
3RUW
([LW

6\VWHP
0DNHDVHOHFWLRQ
6WDWXV 8SJUG,QVWOO
(UURU/RJ
,QYHQWRU\
$FFHVV/RJ
([LW (QWHU

