Preparation for Hardware Maintenance
2. Remove the top cover from each carrier by pushing straight up
from the front.
■ For a MERLIN LEGEND Communications System Release 2.0 or earlier:
1. Pry the clips from the housing on both sides of the control unit;
use a screwdriver if they are difficult to remove.
2. Carefully pull the housing towards you.
NOTE:
If the MERLIN LEGEND (Release 2.0 or earlier) system has more
than one carrier, make sure you hold the housing assembly on the
basic carrier at the sides; otherwise, the housing may disassemble
as the front and side panels are only slotted together.

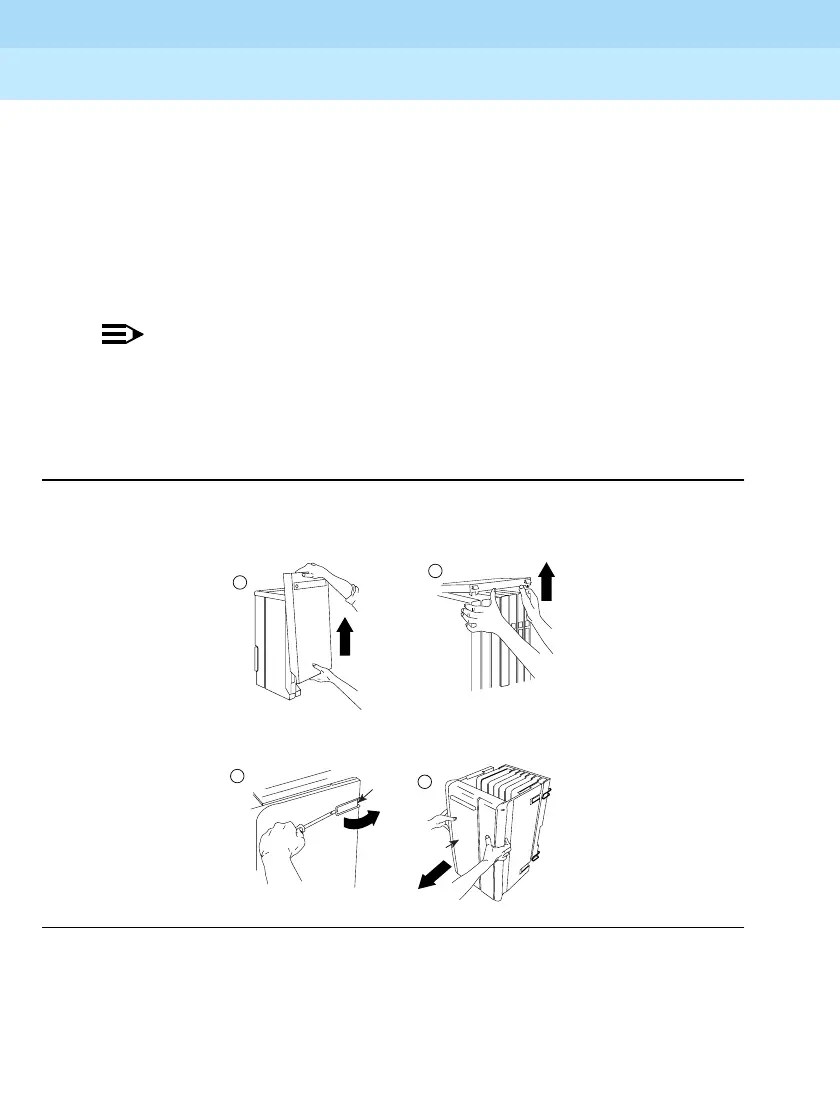

Figure 1-5. Removing the Control Unit Housing
MERLIN II and
MERLIN LEGEND 2.1 and later
Communications System
1
2
2
1
Housing
Clip
Housing
MERLIN LEGEND 2.0
and earlier
Communications System
